DS1124

PRODUCTION

5.0V 8-Bit Programmable Timing Element Ideal for Delaying the Horizontal Sync (HSYNC) Pulse in Large Format LCD TVs to Achieve Higher Resolution Displays.

Analog Devices DS1124 Product Info

10 February 2026 12

Features

0.25ns Step Size
Leading- and Trailing-Edge Accuracy
CMOS/TTL Compatible
Can Delay Signals by a Full Period or More
3-Wire Serial Programming Interface
Single 5.0V Power Supply
10-pin µSOP Package

Part details & applications

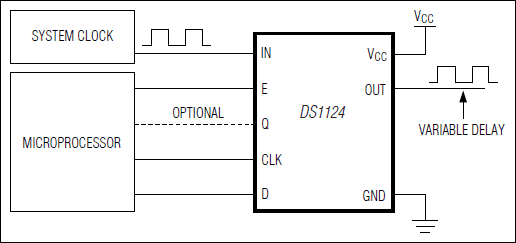

The DS1124 is an 8-bit programmable timing element similar in function to the DS1021-25. The 256-delay intervals are programmed by using a 3-wire serial interface. With a 0.25ns step size, the DS1124 can provide a delay time from 20ns up to 84ns with an integral nonlinearity of ±3ns.

Applications

Digital Test Equipment
Digital Video Projection
LCD Televisions
Signal Generators and Analyzers
Telecommunications
