Analog Devices DS1050 Product Info

• Single 5-bit, programmable, pulse-width modulator (PWM)
• Adjustable Duty Cycle: 0% to 100%
• 2.7V to 5.5V Operation
• Standard Frequency Values: 1kHz, 5kHz, 10kHz, and 25kHz
• 2-Wire Addressable Interface
• Packages: 8-Pin (150-mil) SOIC and 8-Pin (118-mil) µSOP
• Operating Temperature: -40°C to +85°C

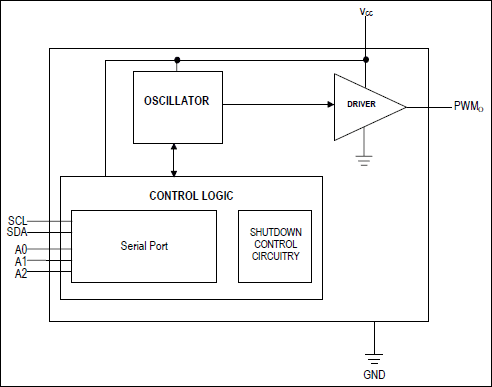

The DS1050 is a programmable, 5-bit, pulse-width modulator featuring a 2-wire addressable controlled interface. The DS1050 operates from power supplies ranging from 2.7V up to 5.5V. The PWM output provides a signal that swings from 0V to V_CC. The DS1050 requires a typical operating current of 50µA and a programmable shutdown supply current of 1µA. Four standard PWM output frequencies are offered and include 1kHz, 5kHz, 10kHz, and 25kHz. The 2-wire addressable interface allows operation of multiple devices on a single 2-wire bus and provides compatibility with other Dallas Semiconductor 2-wire devices such as real-time clocks (RTCs), digital thermometers, and digital potentiometers. The device is ideal for low-cost LCD contrast and/or brightness control, power supply voltage adjustment, and battery charging or current adjustment. The DS1050 is offered in standard integrated circuit packaging including the 8-pin (150-mil) SOIC and space-saving 8-pin (118-mil) µSOP.

Applications

• Automated Test Equipment (ATE)
• Battery Chargers
• Building Energy Management (HVAC)
• LCD Displays and Panels
• Motor and Motion Control
• Power Supplies
• Sensors - Temperature
