AD1871

NOT RECOMMENDED FOR NEW DESIGNS

Stereo Audio, 24-bit, 96 k H z , Multi-bit Sigma Delta ADC

Analog Devices AD1871 Product Info

10 February 2026 5

Features

5.0 V Stereo Audio ADC with 3.3 V Tolerant Digital Interface
Supports 96 kHz Sample Rates
Supports 16-/20-/24-bit Word Lengths
Multibit Sigma-Delta Modulators with "Perfect Differential Linearity Restoration" for Reduced Idle Tones and Noise Floor
105 dB (Typ) Dynamic Range
Supports 256/512 and 768 x f_S Master Clocks
Device Control via SPI Compatible Serial Port or Optional Control Pins

Flexible Serial Data Port allows
Right-Justified, Left-Justified, I²S
Compatible and DSP Serial Port
Modes Cascadable (up to Four
Devices) from a Single DSP
SPORT
On-Chip Reference
28-Lead SSOP Package

Part details & applications

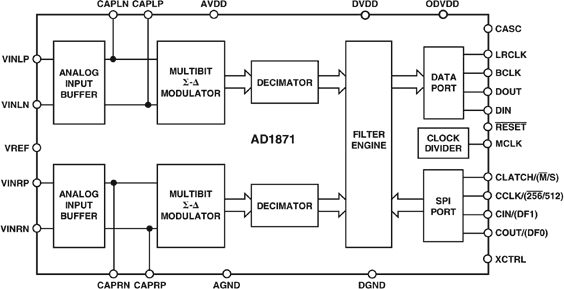

The AD1871 is a stereo audio ADC intended for digital audio applications requiring high performance analog-to-digital conversion. It features two 24-bit conversion channels each with programmable gain amplifier (PGA), multi-bit sigma-delta modulator and decimation filters. Each channel provides 97 dB of THD+N and 107 db of Dynamic Range making the AD1871 suitable for applications such as Digital Audio Recorders and Mixing Consoles.
