ADXL358

RECOMMENDED FOR NEW DESIGNS

Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometer

Analog Devices ADXL358 Product Info

10 February 2026 6

Features

0 g offset vs. temperature (all axes): ±0.2 mg/°C typical
Ultralow noise spectral density (all axes): 80 μg/√Hz
Low power, V_SUPPLY (LDO regulator enabled)
- In measurement mode: 150 μA
- In standby mode: 21 μA
User adjustable analog output bandwidth
Integrated temperature sensor

Voltage range options
- V_SUPPLY with internal regulators: 2.25 V to 3.6 V
- V_1P8ANA, V_1P8DIG with internal LDO regulator bypassed: 1.8 V typical ± 10%
Operating temperature range: −40°C to +125°C

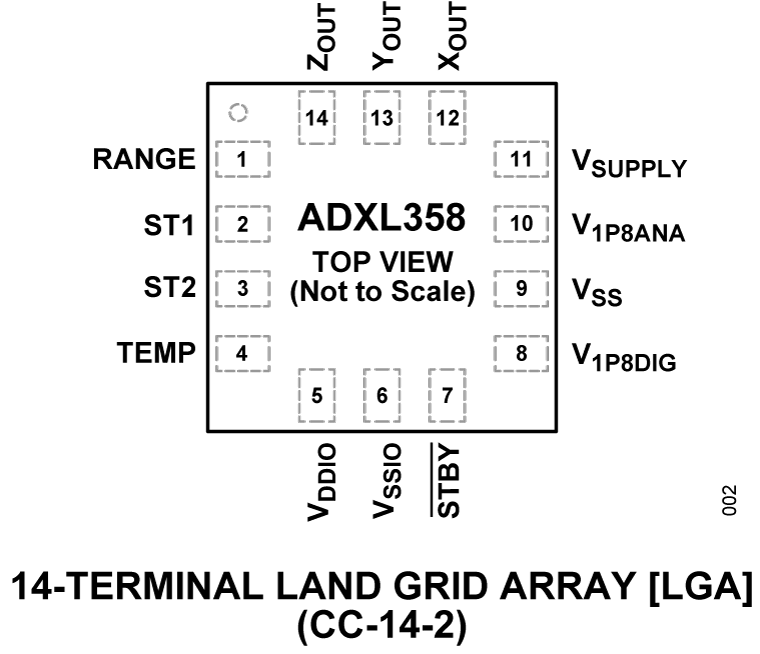

14-terminal, 4 mm × 4 mm × 1.04 mm, LGA package

Part details & applications

The analog output ADXL358 is a low noise density, low 0 g offset drift, low power, 3-axis accelerometer with selectable measurement ranges. The ADXL358B supports the ±10 g and ±20 g ranges, and the ADXL358C supports the ±10 g and ±40 g ranges.

The ADXL358 offers industry leading noise, minimal offset drift over temperature, and long-term stability, enabling precision applications with minimal calibration.

The low noise of the ADXL358 over higher frequencies is ideal for condition-based monitoring and other vibration sensing applications.

APPLICATIONS

Inertial measurement units (IMUs)/attitude and heading reference systems (AHRSs)
Platform stabilization systems
Structural health monitoring
Seismic imaging
Tilt sensing
Robotics
Condition monitoring

Protected by U.S. Patents 8,472,270; 9,041,462; 8,665,627; 8,917,099; 6,892,576; 9,297,825; and 7,956,621.
