ADV7992

RECOMMENDED FOR NEW DESIGNS

Analog Devices ADV7992 Product Info

10 February 2026 6

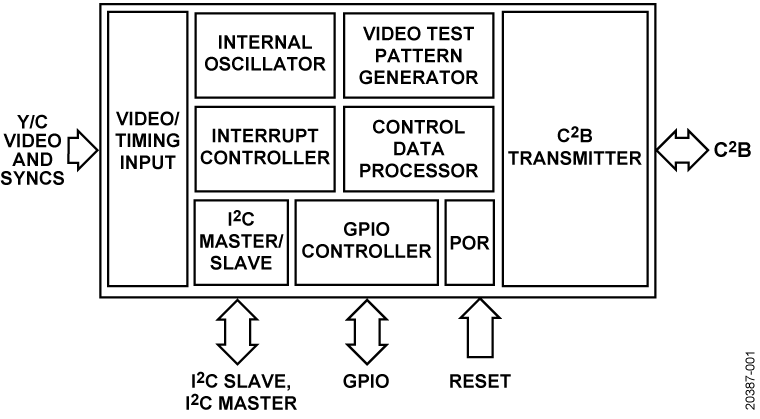

C²B transmits video and bidirectional control data over a differential pair cable up to 30 meters or single-ended cable up to 15 meters
The parallel video input formats supported include
- 8-/10-/12-bit interleaved Y/C data up to 148.5 MHz
- 2 × 8-bit separate Y/C data up to 74.25 MHz
- Embedded (SAV/EAV codes), separate HS/VS/DE or ISP line/frame valid type external timing signals
HD video formats supported up to 2 megapixels at 30 Hz or 1 megapixel at 60 Hz
Bidirectional control channel embedded in the C²B link for control and status data between C²B receiver and C²B transmitter
- Enables remote configuration from the C²B receiver

Bidirectional GPIO with either local or remote interfacing possibilities
On-chip high resolution, high speed DAC, buffer and filtering blocks for video and control channel path
Transmission of frame count data from ISP to enable the back-end ECU or head unit to detect stuck or skipped frames
Video test pattern generator for simplified system testing
Protection from high voltages encountered during short to battery (STB) fault condition
Tested to industry standards for automotive EMC/EMI/ESD robustness

General

C²B transmits video and bidirectional control data over low cost, un-shielded differential pair cable
−40°C to +105°C temperature grade
32-lead and 40-lead LFCSP packages
AEC-Q100 qualified for automotive applications

Applications

C²B U.S. patents pending.
