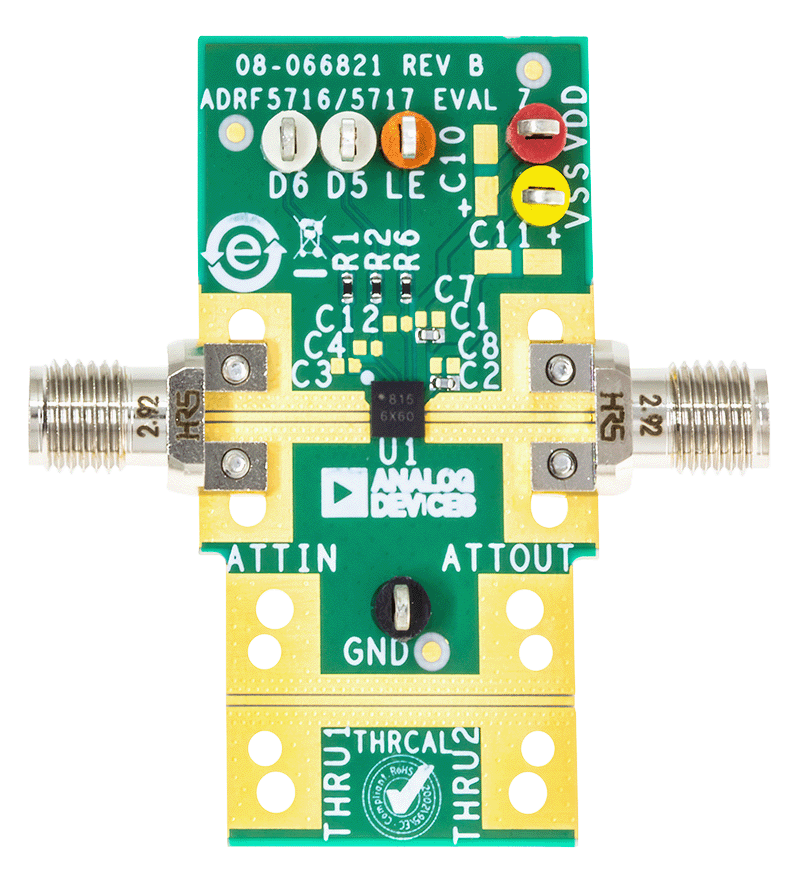

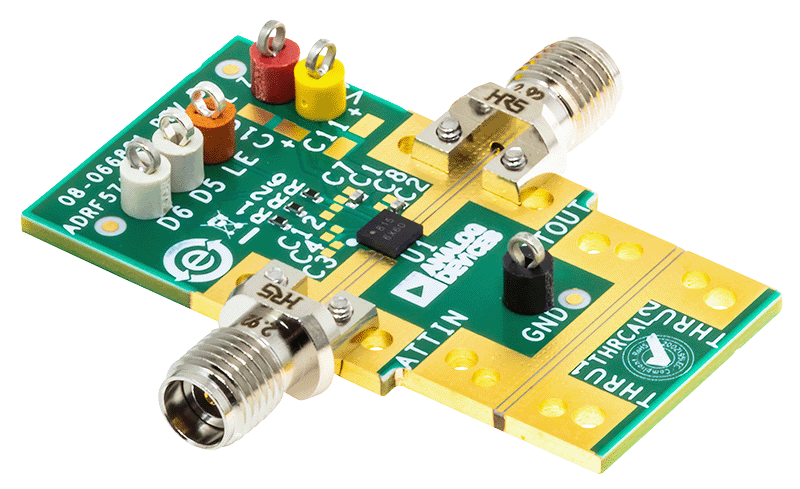

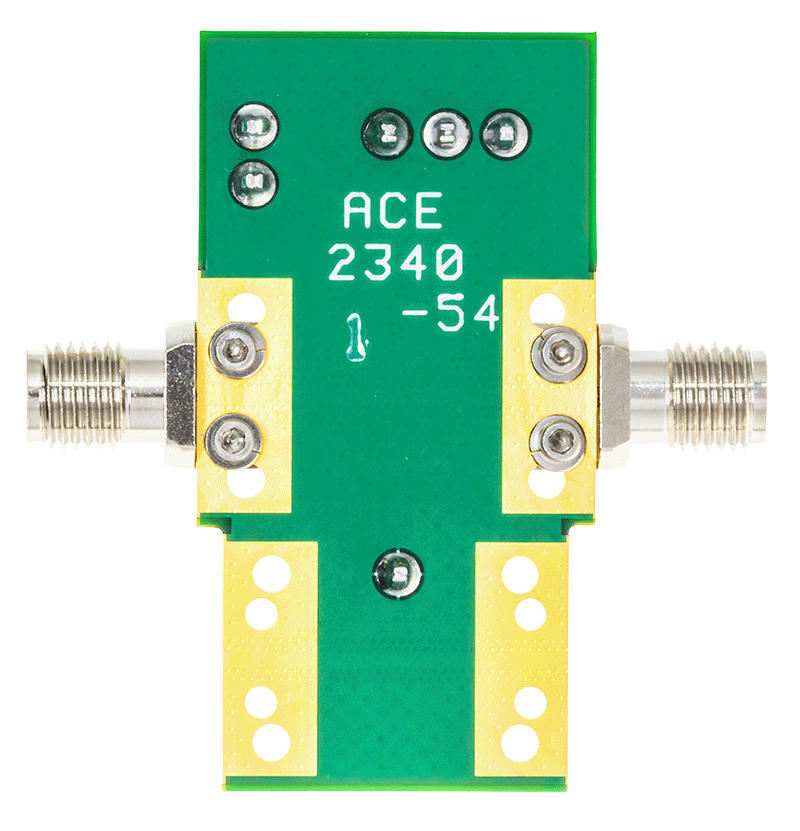

ADRF5717

RECOMMENDED FOR NEW DESIGNS

Silicon Digital Attenuator, 2-Bit, 1 MHz to 30 GHz

Analog Devices ADRF5717 Product Info

10 February 2026 7

Features

Ultrawideband frequency range: 1 MHz to 30 GHz
Attenuation range: 16 dB typical steps to 48 dB
Low insertion loss
- 1.5 dB to 8 GHz
- 2.0 dB to 18 GHz
- 2.8 dB to 30 GHz
Attenuation accuracy
- ±(0.20 + 2.3% of attenuation state) dB typical up to 8 GHz
- ±(0.30 + 3.2% of attenuation state) dB typical up to 18 GHz
- ±(0.30 + 6.5% of attenuation state) dB typical up to 30 GHz
Typical step error
- ±0.8 dB typical up to 8 GHz
- ±1.3 dB typical up to 18 GHz
- ±3.3 dB typical up to 30 GHz
High input linearity
- P0.1dB insertion loss state: 30 dBm typical

P0.1dB other attenuation states: 30 dBm typical
IP3 insertion loss state: 51 dBm typical
IP3 other attenuation state: 49 dBm typical

High RF power handling
- Input at ATTIN and ATTOUT
  - 30 dBm typical steady state average
  - 33 dBm typical steady state peak
RF amplitude settling time (0.1 dB of final RF_OUT): 6.6 μs typical
Single-supply operation supported
Tight distribution in relative phase
No low frequency spurious signals
Parallel mode control, CMOS-/LVTTL-compatible

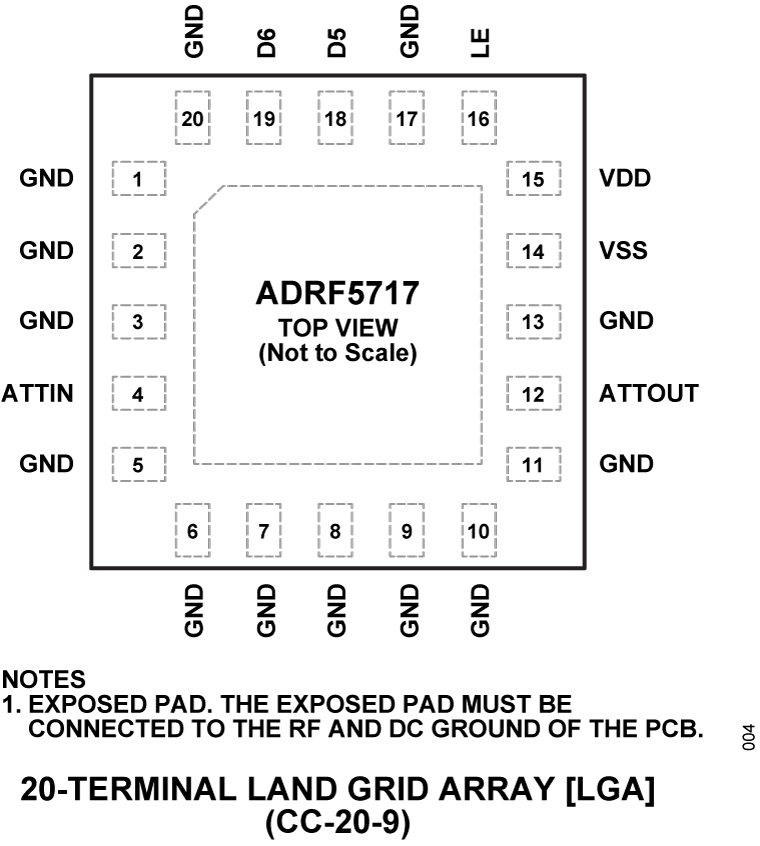

20-terminal, 3 mm x 3 mm, land grid array [LGA] package

Part details & applications

The ADRF5717 is a silicon, 2-bit digital attenuator with 48 dB attenuation range in 16 dB steps supporting glitch-free operation.

The ADRF5717 operates from 1 MHz to 30 GHz with better than 2.8 dB of insertion loss and better than 3.3 dB attenuation accuracy.

The ATTIN and ATTOUT port of the ADRF5717 have an RF power handling capability of a 30 dBm steady state average and a 33 dBm steady state peak.

The ADRF5717 requires a dual-supply voltage of +3.3 V and −3.3 V. The device features parallel mode control and complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible controls.

The ADRF5717 can also operate with a single positive supply voltage (VDD) applied while the negative supply voltage (V_DD) is tied to ground. See the Theory of Operation section for more details.

The ADRF5717 RF ports are designed to match a characteristic impedance of 50 Ω. The ADRF5717 comes in a 20-terminal, 3 mm × 3 mm, RoHS compliant, LGA package and operates from −40°C to +105°C

Applications

Industrial scanners
Test and instrumentation
Cellular infrastructure: 5G millimeter wave
Military radios, radars, and electronic counter measures (ECMs)
Microwave radios and very small aperture terminals (VSATs)
