ADRF5060

RECOMMENDED FOR NEW DESIGNS

Nonreflective RF Path Selector SP3T with Bypass, 100MHz to 20GHz

Analog Devices ADRF5060 Product Info

10 February 2026 9

Features

  • Wideband frequency range: 100MHz to 20GHz
  • Nonreflective design with on-chip 50Ω terminations
  • Low insertion loss
    • 0.7dB typical to 12GHz (external path)
    • 0.95dB typical to 20GHz (external path)
    • 1.15dB typical to 12GHz (through path)
    • 1.3dB typical to 20GHz (through path)
  • High isolation
    • 50dB typical to 12GHz
    • 42dB typical to 20GHz
  • High input linearity
    • P0.1dB: >33dBm typical
    • Input IP3: >58dBm typical
  • High RF input power
    • 30dBm external paths
    • 18dBm terminated path
    • 30dBm hot switching
  • ESD ratings
    • HBM: ±1.25kV for all pins
    • CDM: ±500V for all pins
  • On time and off time (50% V1 or V2 to 10% to 90% of RFOUT): 60ns
  • 0.1dB RF settling time (50% V1 or V2 to 0.1dB of final RFOUT): 110ns
  • No low frequency spurs
  • 30-terminal, 4mm × 3mm, LGA packaging

Part details & applications

The ADRF5060 is a bidirectional, nonreflective RF path selector, SP3T with bypass manufactured in a silicon on insulator (SOI) process.

The ADRF5060 operates from 100MHz to 20GHz with an insertion loss of lower than 1.3dB on through path and isolation of higher than 42dB. The ADRF5060 has an RF input power handling capability of 33dBm external paths, 18dBm terminated path, and 30dBm hot switching at the RFIN or RFOUT port.

The ADRF5060 requires a dual-supply voltage of +3.3V and −3.3V. The device can also operate with a single positive supply voltage (VDD) pin applied while the negative supply pin (VSS) is tied to ground. In this operating condition, the small signal performance is maintained while the switching characteristics, linearity, and power handling performance are derated, see Figure 2 in data sheet.

The ADRF5060 employs complimentary metal-oxide semiconductor (CMOS)-/low-voltage, transistor to transistor logic (LVTTL) logic-compatible controls.

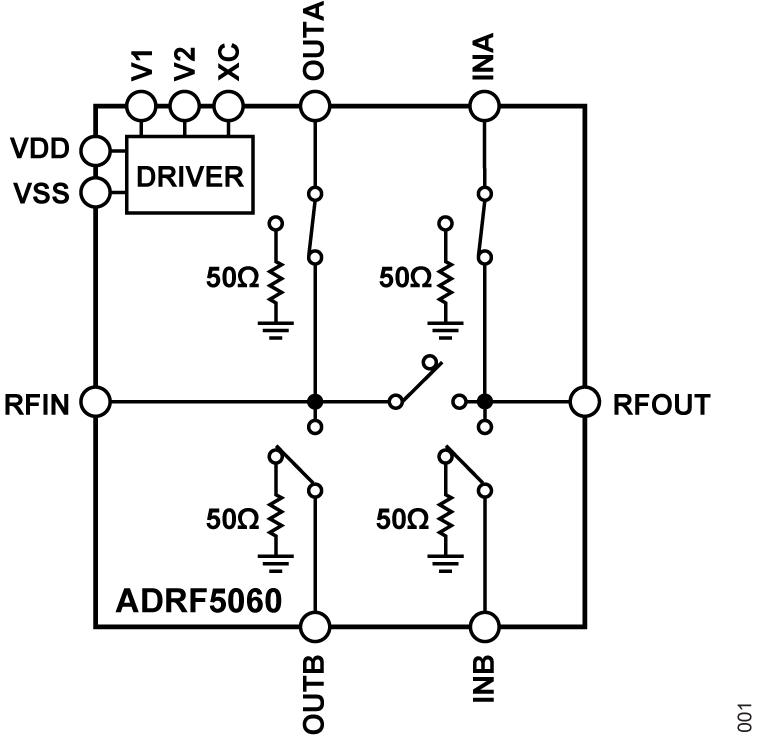

The ADRF5060 has three digital input pins (V1, V2, and XC) to control the digital switch states, including an all-off state and an additional control for cross port selection. See the Theory of Operation section for additional information.

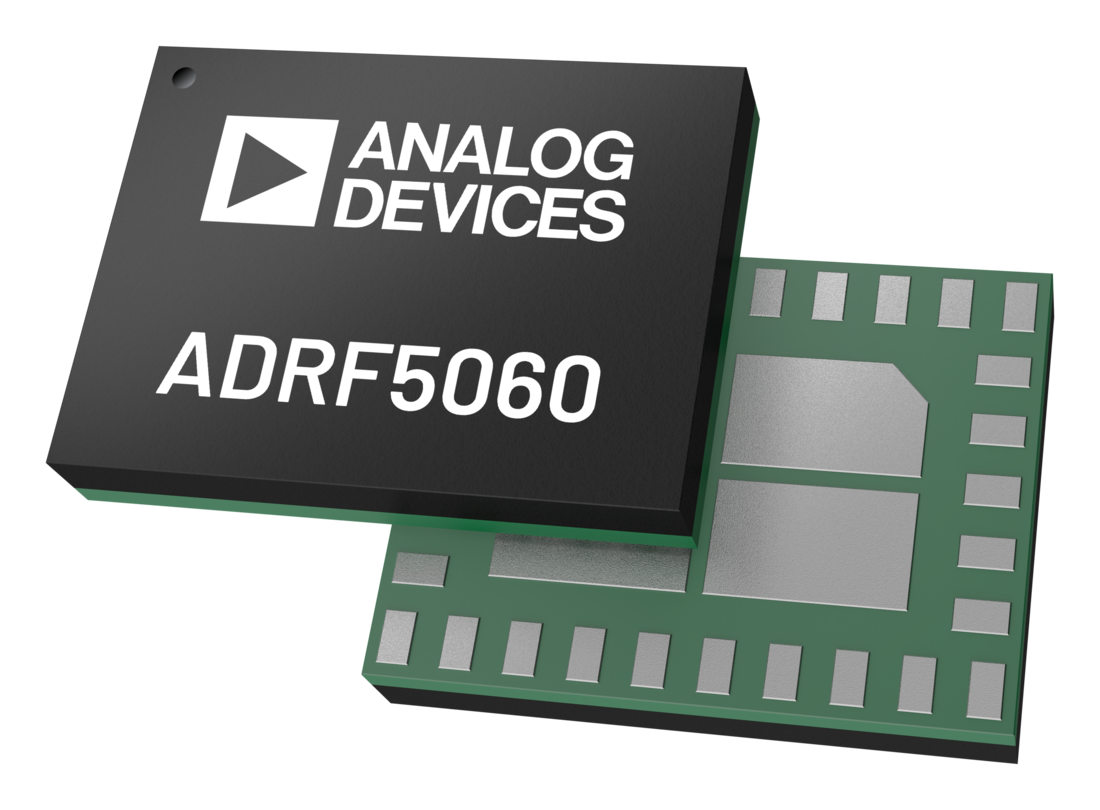

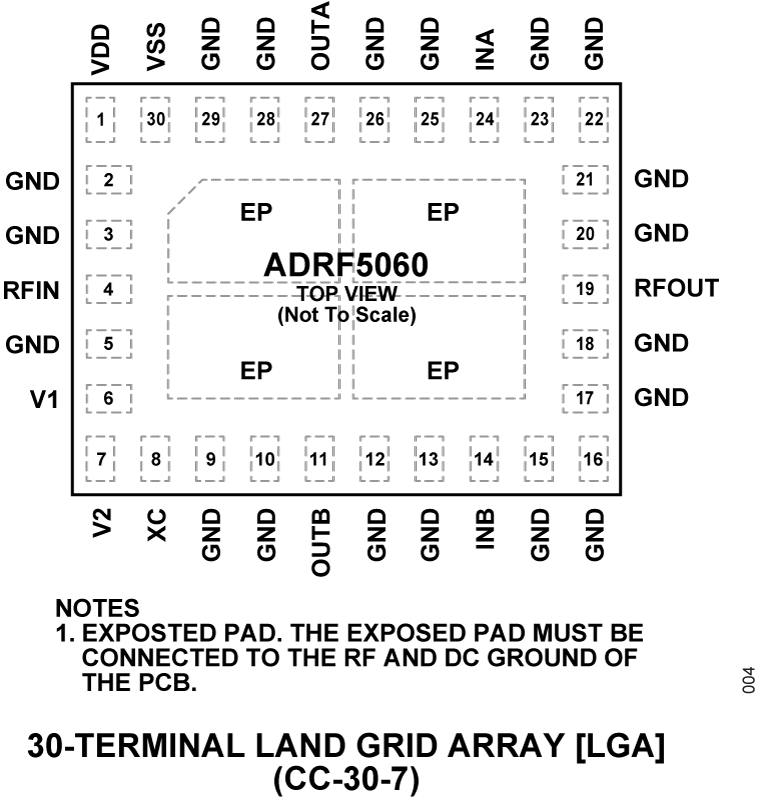

The ADRF5060 comes in a 4 mm × 3 mm, LGA package.

APPLICATIONS

  • Test instrumentation
  • Military radios, radars, and electronic counter measures (ECMs)
  • Microwave radios and very small aperture terminals (VSATs)
