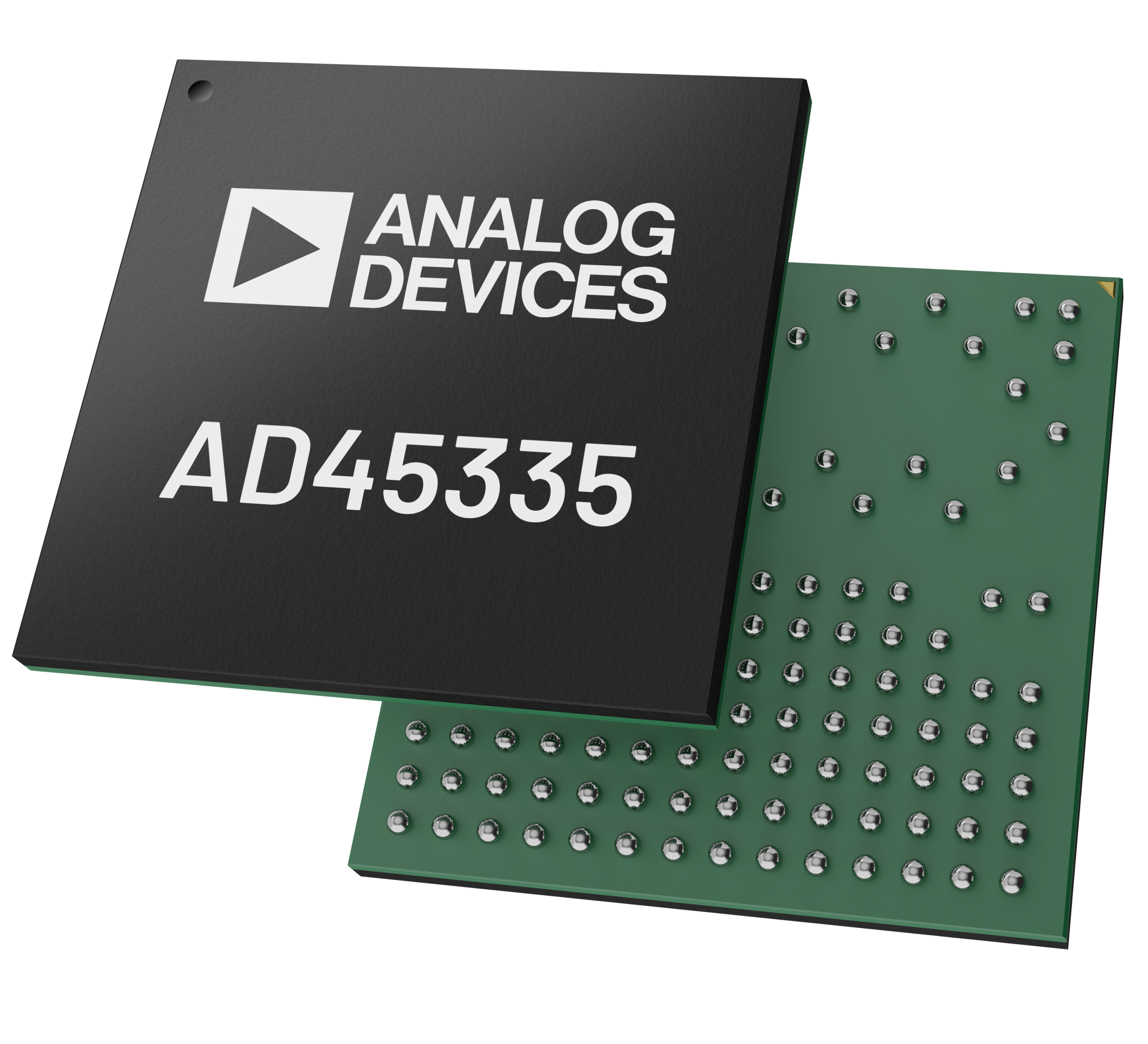

AD45335

RECOMMENDED FOR NEW DESIGNS

32-Channel, 14-Bit DAC with Full-Scale Output Voltage Programmable from 50 V to 200 V

Analog Devices AD45335 Product Info

10 February 2026 6

Features

High integration
32-channel, 14-bit denseDAC^® with integrated high voltage output amplifier
Guaranteed monotonic

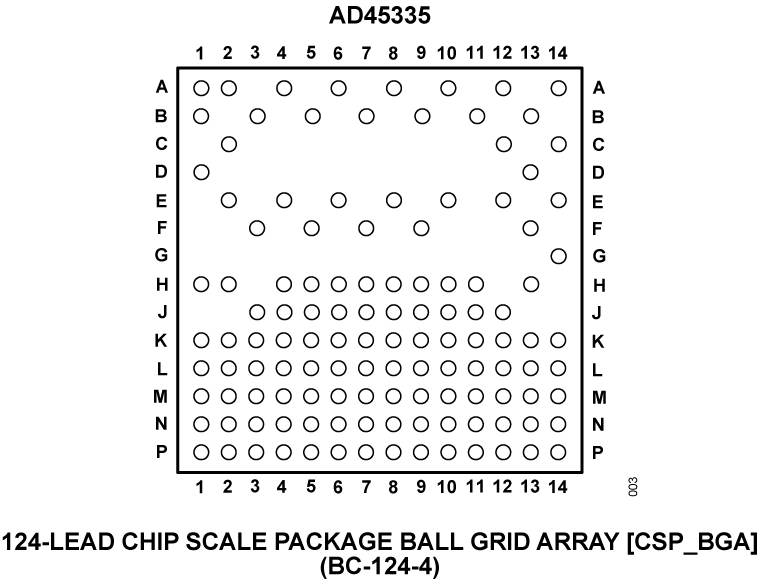

Housed in 15 mm × 15 mm CSP_BGA package
Full-scale output voltage programmable from 50 V to 200 V via reference input

150/40 μA source/sink drive capability
Integrated silicon diode for temperature monitoring
Serial peripheral interface (SPI)
1.2 MHz channel update rate
Asynchronous RESET facility
–10°C to +85°C temperature range

Part details & applications

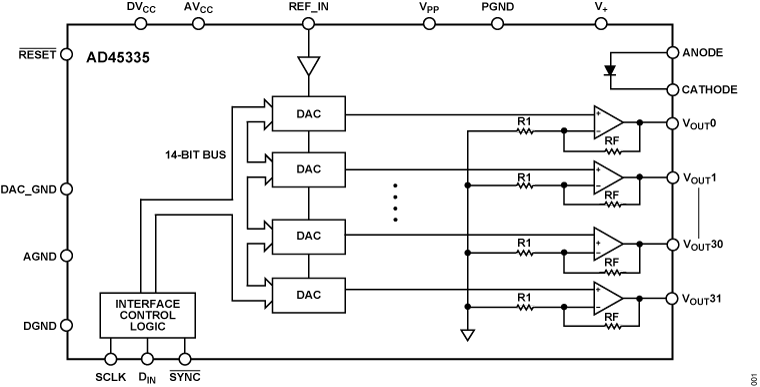

The AD45335 is a 32-channel, 14-bit denseDAC^® with an on-chip high voltage output amplifier. This device is targeted for optical micro-electromechanical systems. The output voltage range is programmable via the REF_IN pin. The output range is 0 V to 50 V when REF_IN = 1 V, and 0 V to 200 V when REF_IN = 4 V. REF_IN is buffered internally on the AD45335 and should be driven from a stable reference source.

The selected digital-to-analog converter (DAC) register is written to via the 3-wire interface. The SPI operates at clock rates of up to 30 MHz.

APPLICATIONS

Optical microelectromechanical systems (MEMS)
Optical crosspoint switches
Micropositioning applications using piezoelectric actuators
Level setting in automotive test and measurement
