3.3 V, 3.2 Gbps Limiting Amplifier

Analog Devices ADN2891 Product Info

10 February 2026 4

Features

  • Input sensitivity: 4 mV p-p
  • 80 ps rise/fall times
  • CML outputs: 700 mV p-p differential
  • Programmable LOS detector: 3.5 mV to 35 mV
  • Rx signal strength indicator (RSSI)
  • SFF-8472-compliant average power measurement
  • Single-supply operation: 3.3 V
  • Low power dissipation: 145 mW
  • Available in space-saving 3 mm × 3 mm, 16-lead LFCSP
  • Extended temperature range: −40°C to +95°C
  • SFP reference design available

Part details & applications

The ADN2891 is a 3.2 Gbps limiting amplifier with integrated loss-of-signal (LOS) detection circuitry and a received signal strength indicator (RSSI). This part is optimized for SONET, Gigabit Ethernet (GbE), and Fibre Channel optoelectronic conversion applications. The ADN2891 has a differential input sensitivity of 4 mV p-p and accepts up to a 2.0 V p-p differential input overload voltage. The ADN2891 supports current mode logic (CML) outputs with controlled rise and fall times.

By monitoring the bias current through a photodiode, the on-chip RSSI detector measures the average power received with 2% typical linearity over the entire valid input range of the photodiode. The on-chip RSSI detector facilitates SFF-8472-compliant optical transceivers by eliminating the need for external RSSI detector circuitry.

Additional features include a programmable loss-of-signal (LOS) detector and output squelch.

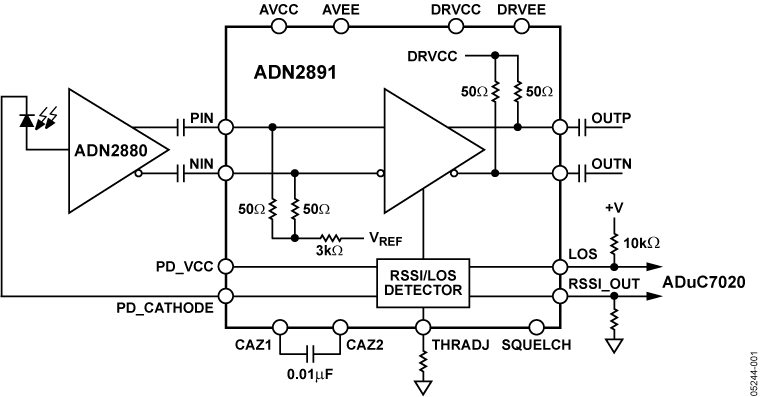

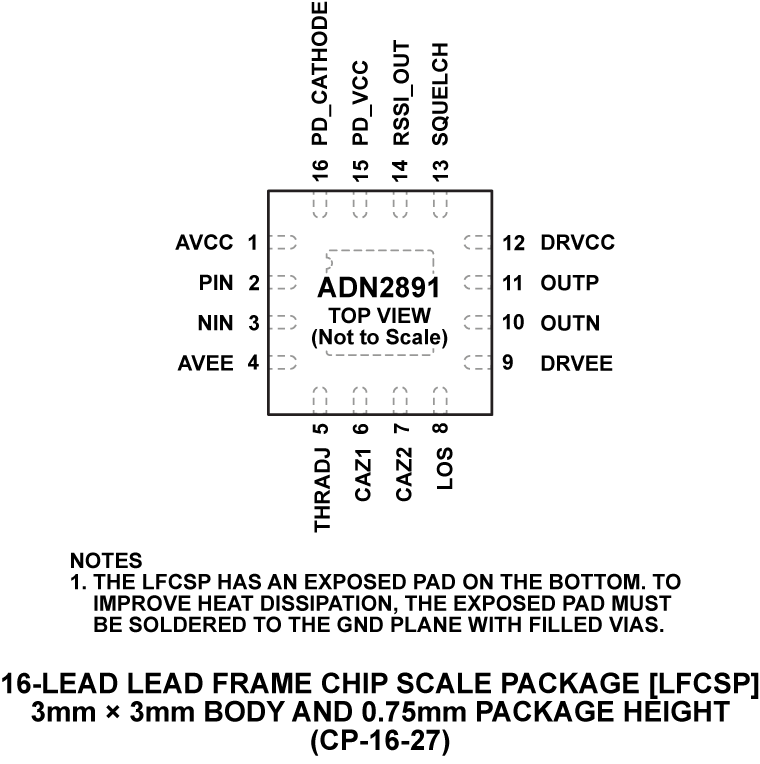

The ADN2891 is available in a 3 mm × 3 mm, 16-lead LFCSP.

Applications

  • SFP/SFF/GBIC optical transceivers
  • OC-3/OC-12/OC-48, GbE, Fibre Channel (FC) receivers
  • 10GBASE-LX4 transceivers
  • WDM transponders
