ADMV7410

RECOMMENDED FOR NEW DESIGNS

E-Band Low Noise Downconverter SiP, 71 GHz to 76 GHz

Analog Devices ADMV7410 Product Info

10 February 2026 7

Features

Conversion gain: 13 dB typical
Image rejection: 30 dBc typical
Noise figure: 5 dB typical
Input IP3: 1 dBm typical
Input IP2: 28 dBm typical
Input P1dB: −8 dBm typical

6× LO leakage at RFIN: <−55 dBm typical
I/Q amplitude imbalance: 0.2 dB typical
I/Q phase imbalance: 5° typical

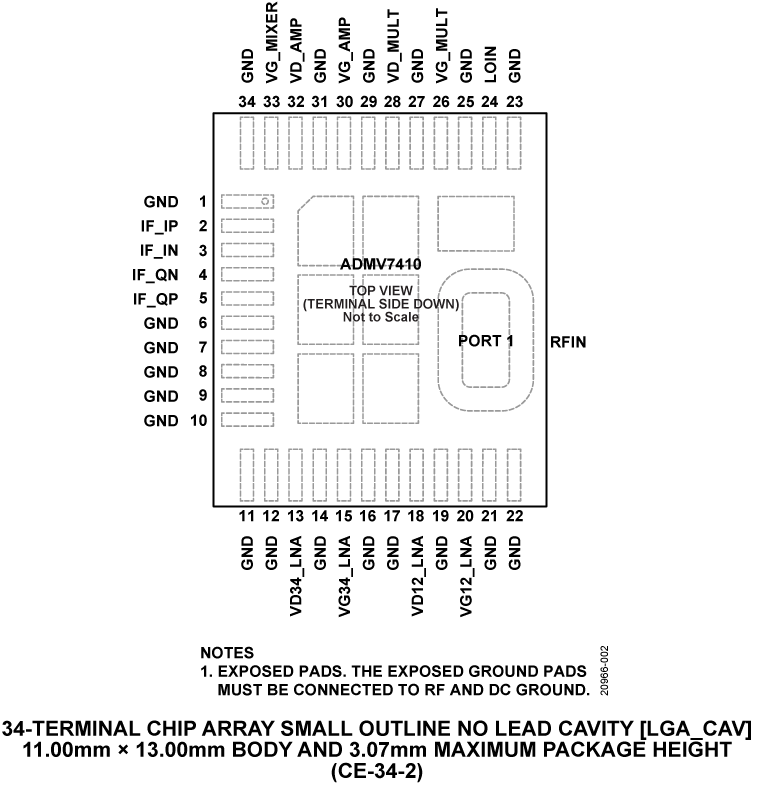

Fully integrated, surface-mount, 34-terminal, 11 mm × 13 mm LGA_CAV package

Part details & applications

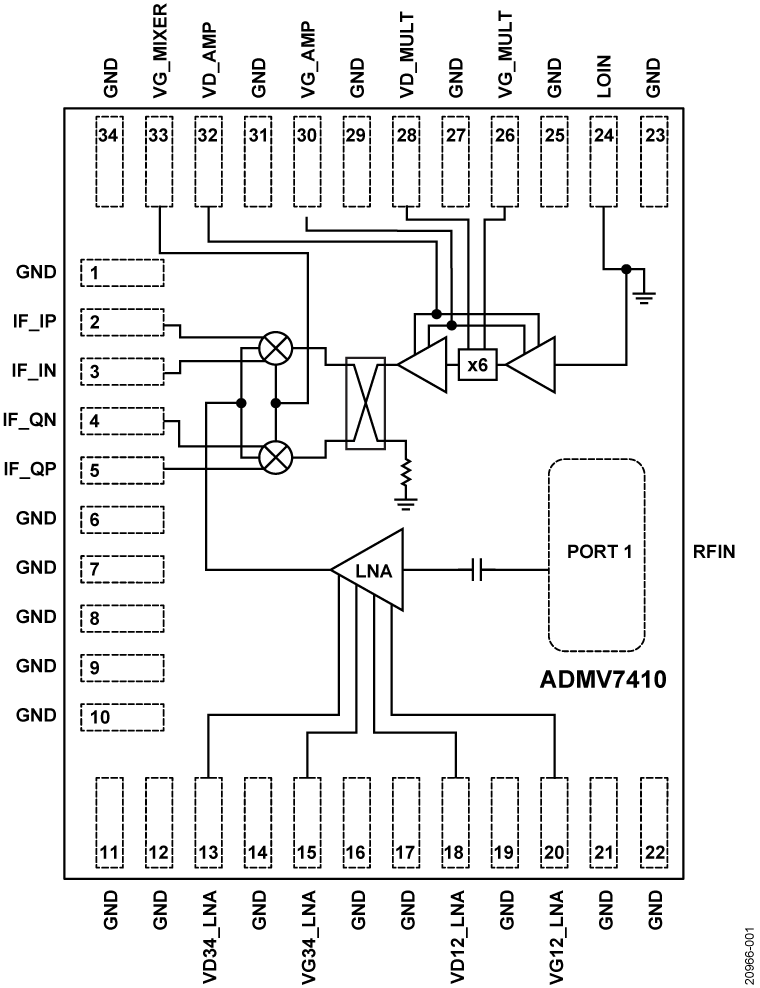

The ADMV7410 is a fully integrated system in package (SiP) in phase/quadrature (I/Q) downconverter that operates between an intermediate frequency (IF) output range of dc and 2 GHz and a radio frequency (RF) input range of 71 GHz and 76 GHz. The device provides a small signal conversion gain of 13 dB with 30 dBc of image rejection. The ADMV7410 uses a low noise amplifier followed by an image rejection mixer that is driven by a 6× local oscillator (LO) multiplier. Differential I and Q mixer outputs are provided for direct conversion applications. Alternatively, the outputs can be combined using an external 90° hybrid and two external 180° hybrids for single-ended applications.

The ADMV7410 comes in a fully integrated, surface-mount, 34-terminal, 11 mm × 13 mm, chip array small outline no lead cavity (LGA_CAV) package. The ADMV7410 operates over the −40°C to +85°C case temperature range.

APPLICATIONS

E-band communication systems
High capacity wireless backhauls
Test and measurement
Aerospace and defense
