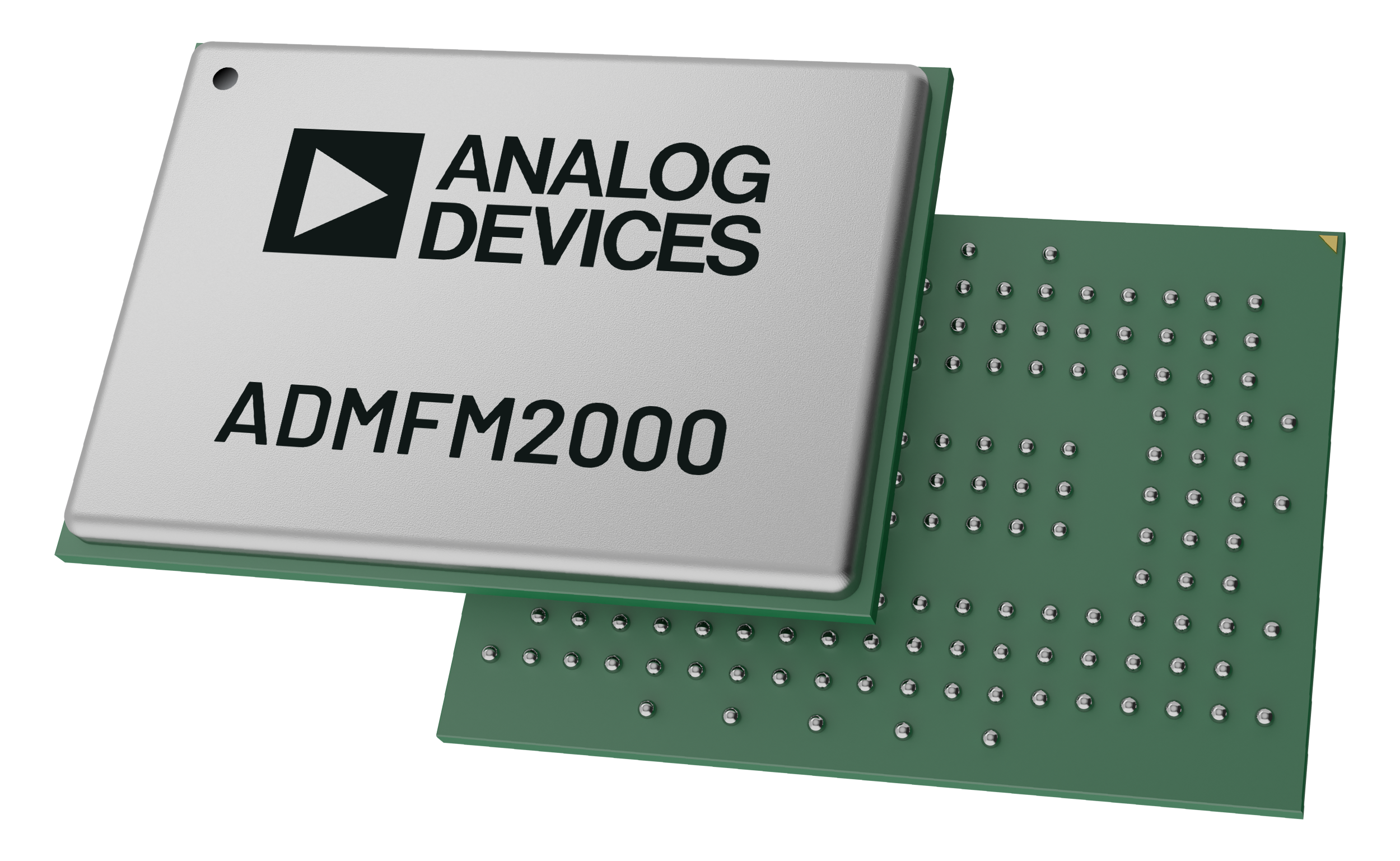

Dual-Channel, 0.5 GHz to 32 GHz, Microwave Downconverter

Analog Devices ADMFM2000 Product Info

10 February 2026 6

Features

Dual-channel, 0.5 GHz to 32 GHz receiver
Integrated LNA
Integrated downconversion mixer
Integrated switch for mixer bypass
Integrated IF LPF: 8 GHz bandwidth

Integrated DSA
DSA range: 31 dB with 1 dB step
Single common LO input
50 Ω matched input and output

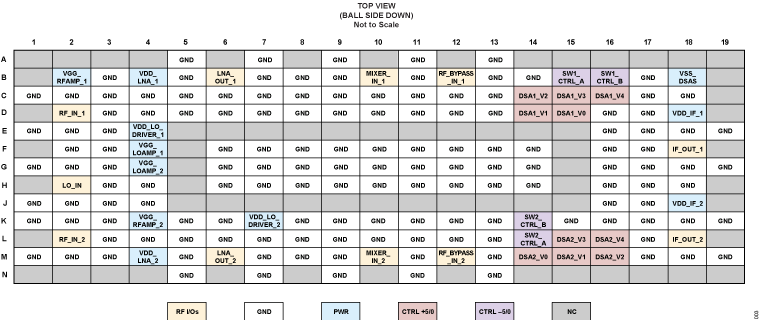

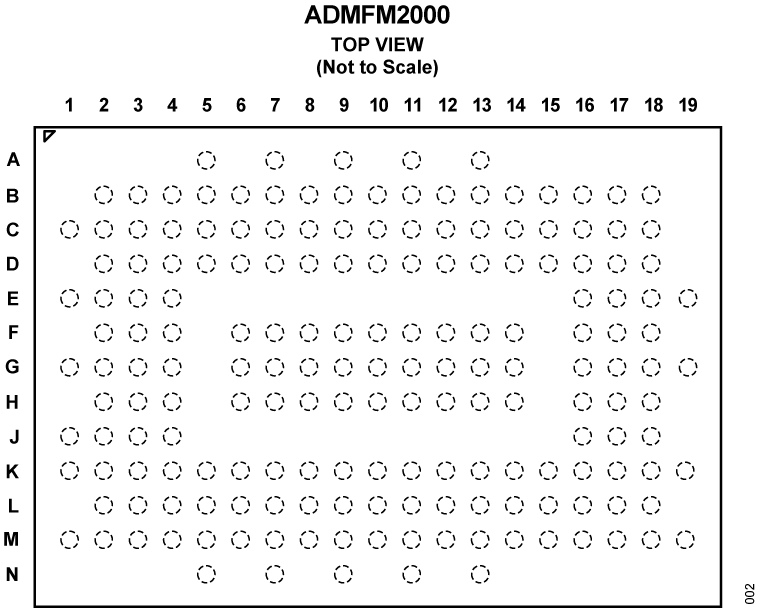

20.00 mm × 14.00 mm, 179-ball CSP_BGA

Part details & applications

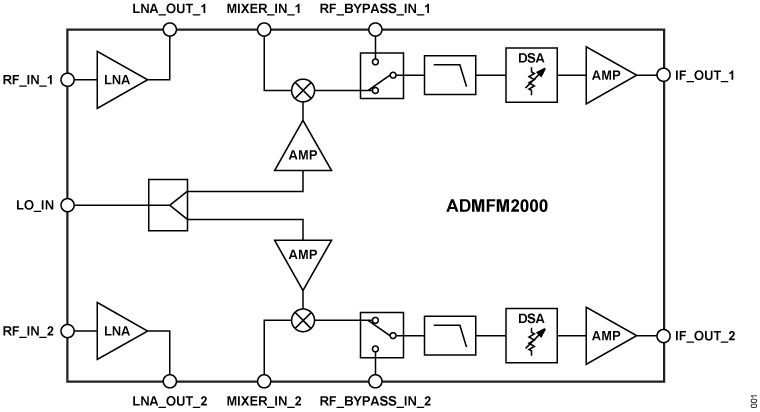

The ADMFM2000 is a dual-channel microwave downconverter, with input RF and local oscillator (LO) frequency ranges covering 5 GHz to 32 GHz, with an output intermediate frequency (IF) frequency range from 0.5 GHz to 8 GHz. The downconverting mixer can also be bypassed allowing direct access to the 0.5 to 8 GHz IF path. A common LO input signal is split to feed two separate buffer amplifiers to drive the mixer in each channel. Each down conversion path consists of a low noise amplifier (LNA), a mixer, an IF filter, a digital step attenuator (DSA), and an IF amplifier.

Fabricated using a combination of surface mount and bare die components, the ADMFM2000 provides precise gain adjustment capabilities with low distortion performance. The ADMFM2000 comes in a compact, shielded 20.00 mm × 14.00 mm, 179-ball chip scale package ball grid array (CSP_BGA) and operates over a temperature range of −40°C to +85°C.

APPLICATIONS

Phased array radar receivers
Satellite communications (satcom) receivers v Electronic warfare
Electronic test and measurement equipment
Automatic test equipment
