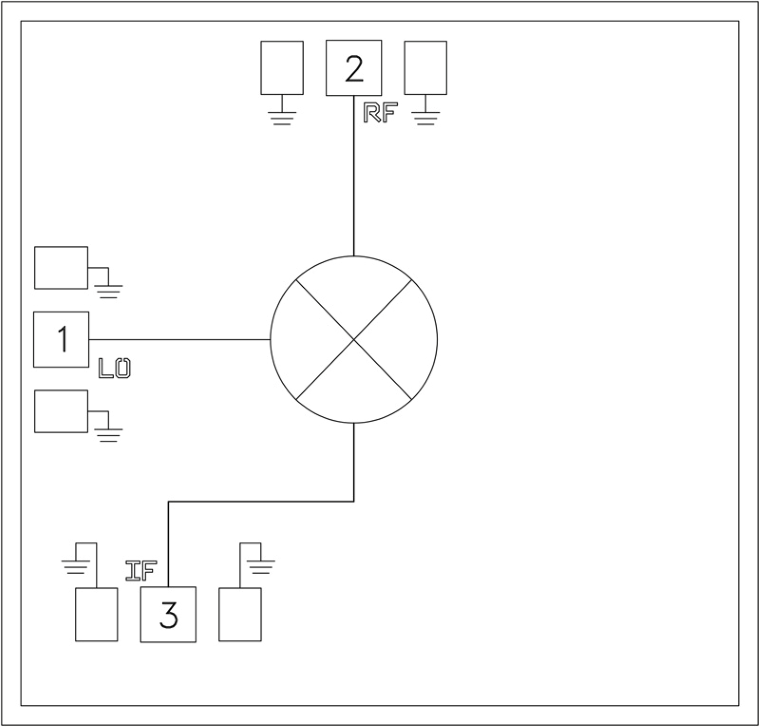

ADH1081S

RECOMMENDED FOR NEW DESIGNS

Aerospace, GaAs, MMIC, Double-Balanced Mixer, 50 GHz to 75 GHz

Analog Devices ADH1081S Product Info

10 February 2026 9

Features

Passive: No DC Bias Required
Low LO Power: 12 dBm
High LO/RF Isolation: 28 dB
Wide IF Bandwidth: DC to 26 GHz

Upconversion & Downconversion Applications
Die Size: 1.23 mm x 1.22 mm x 0.1 mm
Screened in accordance with MIL-PRF-38534, Class K

Part details & applications

The ADH1081S is a double balanced mixer. It can be used as an upconverter or a downconverter, with DC to 26 GHz at the IF port and 50 GHz to 75 GHz at the RF port. This passive MMIC mixer is fabricated with GaAs Schottky diode technology. All bond pads and the die backside are Ti/Au metallized and the Schottky devices are fully passivated for reliable operation.

Applications

E-Band Communications Systems
Instrumentation
Sensors
Military & Space
