ADG1712

RECOMMENDED FOR NEW DESIGNS

Low Voltage, 2.4Ω Quad SPST Switch

Analog Devices ADG1712 Product Info

10 February 2026 6

Features

±1.08V to ±2.75V dual supply
+1.08V to +5.5V single supply
Low on resistance 2.4Ω
16-lead, 2mm × 2mm LGA
1.8 V and 3 V JEDEC compliant logic

Fully specified at ±5V,+3.3V, +1.8V, and ±2.5V
Rail-to-rail signal range
−40 °C to +125 °C operating temperature range

Part details & applications

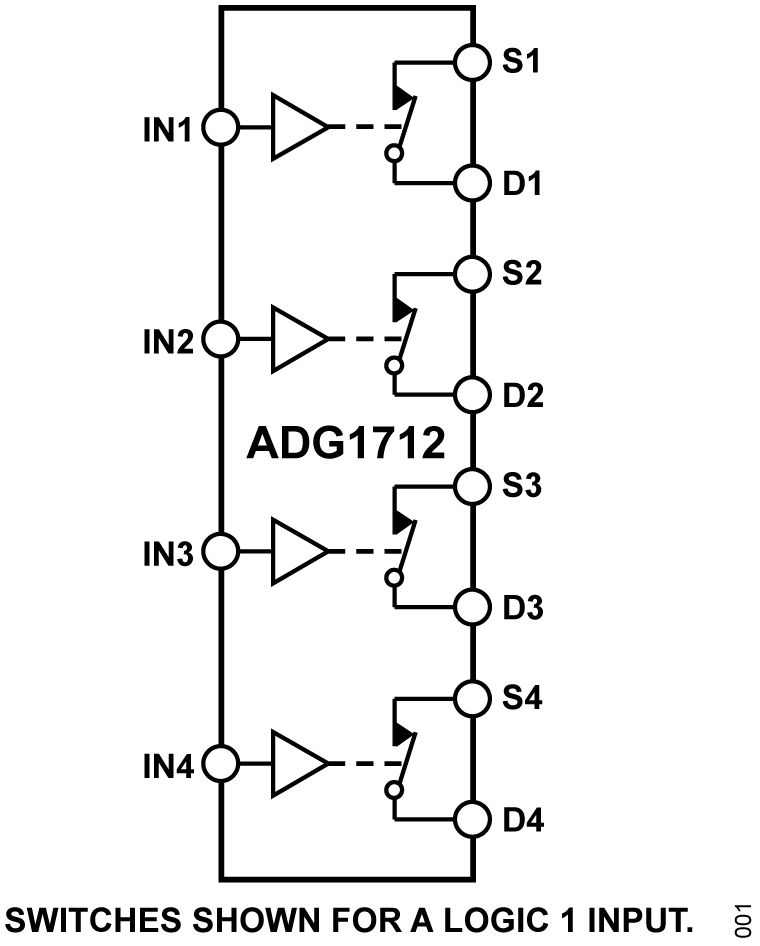

The ADG1712 contains four independent single-pole/single-throw (SPST) switches and operates with a low-voltage single supply range from +1.08V to + 5.5V or a low-voltage dual supply range from ±1.08V to ±2.75V.

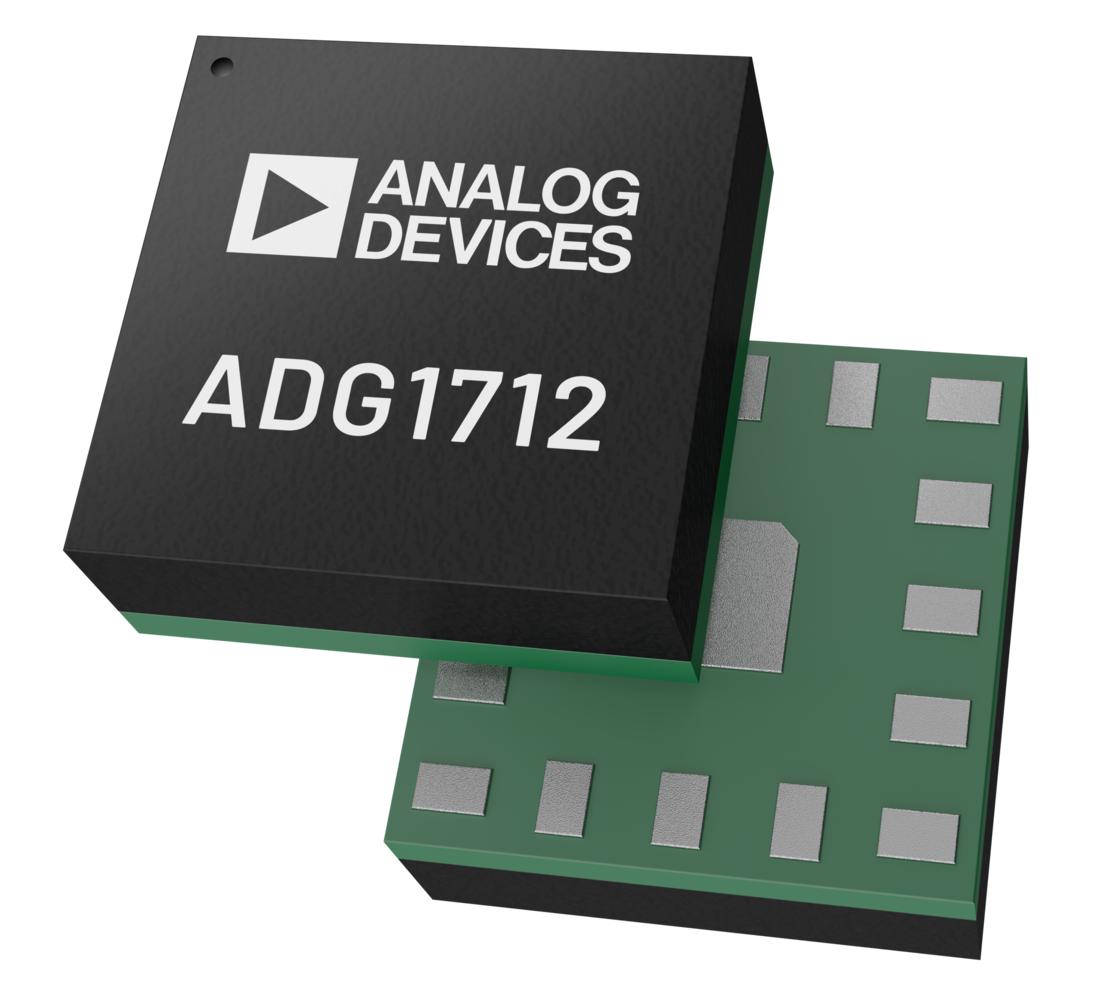

The ADG1712 is designed for small size without compromising on performance. The 2mm × 2mm land grid array (LGA) package is ideal for a broad range of applications where area is a concern.

The ADG1712 has a low on resistance of just 2.4Ω and a rail-to-rail input signal range. Each switch conducts equally well in both directions when on. The switches are turned on with a Logic 1 input on the corresponding digital control line, and the digital control inputs are 1.8V and 3V JEDEC compliant for ease of use with microcontrollers and field programmable gate arrays (FPGAs).

APPLICATIONS

Automated test equipment
Data acquisition systems
Medical equipment
FPGA and microcontroller systems
Audio and video signal routing
Communications systems
Relay replacement
