Analog Devices ADF4116 Product Info

• ADF4116: 550 MHz
• ADF4117: 1.2 GHz
• ADF4118: 3.0 GHz
• 2.7 V to 5.5 V power supply
• Separate VP allows extended tuning voltage in 3 V systems
• Y Grade: −40°C to +125°C
• Dual-modulus prescaler

  • ADF4116: 8/9
  • ADF4117/ADF4118: 32/33
• 3-wire serial interface
• Digital lock detect
• Power-down mode
• Fastlock mode

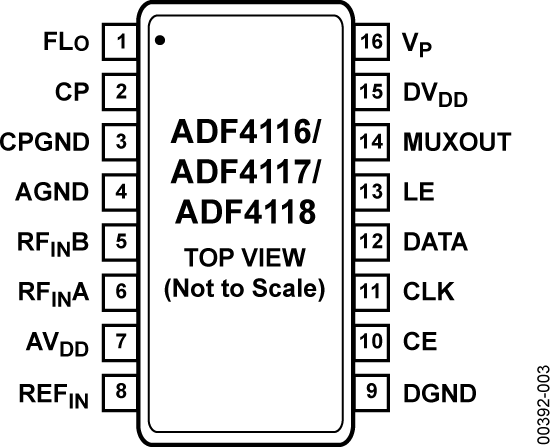

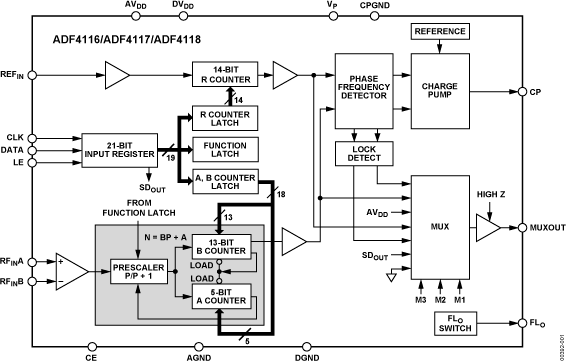

The ADF4116/ADF4117/ADF4118 are frequency synthesizers which can be used to implement local oscillators in the up-conversion and down-conversion sections of wireless receivers and transmitters. They consist of a low-noise digital PFD (Phase Frequency Detector), a precision charge pump, a programmable reference divider, programmable A and B counters and a dual-modulus prescaler (P/P+1). The A (5-bit) and B (13-bit) counters, in conjunction with the dual modulus prescaler (P/P+1), implement an N divider (N= BP+A). In addition, the 14-bit reference counter (R Counter), allows selectable REF_IN frequencies at the PFD input. A complete PLL (Phase-Locked Loop) can be implemented if the synthesizer is used with an external loop filter and VCO (Voltage Controlled Oscillator).

Control of all the on-chip registers is via a simple 3-wire interface.

The devices operate with a 2.7V (± 10%) or 5V (± 10%) power supply and can be powered when not in use.
