Analog Devices ADF4108 Product Info

• 8.0 GHz bandwidth
• 3.2 V to 3.6 V power supply
• Separate charge pump supply (V_P) allows extended tuning voltage in 3.3 V systems
• Programmable, dual-modulus prescaler 8/9, 16/17, 32/33, or 64/65
• Programmable charge pump currents
• Programmable antibacklash pulse width
• 3-wire serial interface
• Analog and digital lock detect
• Hardware and software power-down mode
• Loop filter design possible with ADIsimPLL

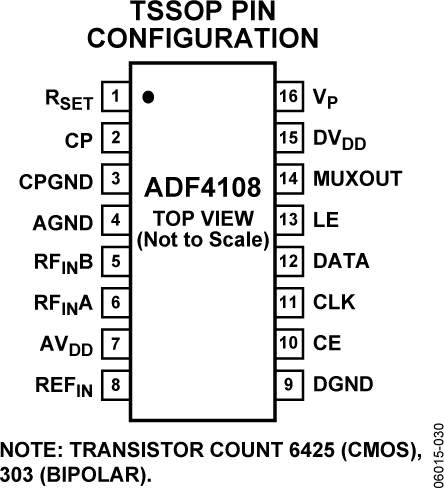

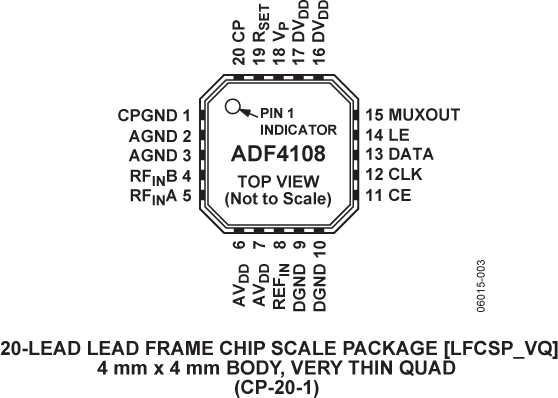

• 4 mm × 4 mm, 20-lead chip scale package

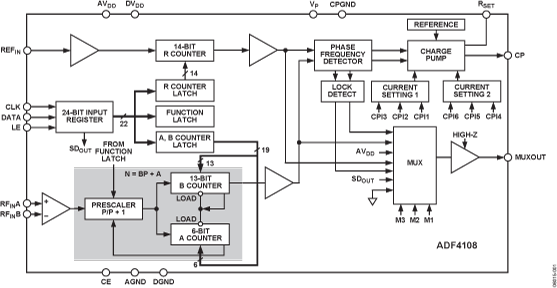

The ADF4108 frequency synthesizer can be used to implement local oscillators in the up-conversion and down-conversion sections of wireless receivers and transmitters. It consists of a low-noise digital PFD (phase frequency detector), a precision charge pump, a programmable reference divider, programmable A and B counters, and a dual-modulus prescaler (P/P + 1). The A (6-bit) and B (13-bit) counters, in conjunction with the dual-modulus prescaler (P/P + 1), implement an N divider (N = BP + A). In addition, the 14-bit reference counter (R counter), allows selectable REF_IN frequencies at the PFD input. A complete PLL (phase-locked loop) can be implemented if the synthesizer is used with an external loop filter and VCO (voltage controlled oscillator). Its very high bandwidth (8GHz) means that frequency doublers or prescalers can be eliminated in many high frequency systems, simplifying system architecture and reducing cost.

Applications

• Broadband wireless access
• Satellite systems
• Instrumentation
• Wireless LANs
• Base stations for wireless radio
