ADAQ7767-1

RECOMMENDED FOR NEW DESIGNS

Flexible Resistive Input, Anti-Alias, 24-Bit, 1 MSPS, μModule DAQ Solution

Analog Devices ADAQ7767-1 Product Info

10 February 2026 6

Features

Highly integrated data acquisition solution
3 pin-selectable gain options: 1 (IN1), 0.364 (IN2), or 0.143 (IN3)
Maximum input range of ±28.672 V differential (IN3)
Wide input common-mode range: −16 V to +12 V (IN3)
Fourth-order AAF with maximum flatness and linear phase
- Anti-aliasing protection with 105 dB typical rejection (IN1)
Excellent device-to-device phase matching and drift
Combined precision ac and dc performance
- Total system dynamic range up to 124 dB
- -118 dB typical THD at ±28.672 V input range (IN3)
- 78.0 dB typical DC CMRR at ±28.672 V input range (IN3)
- ±3.8 ppm of FSR typical INL
- 3.1 ppm/°C max gain error drift
- ± 0.096 maximum device-to-device phase angle mismatch at 20 kHz

Programmable output data rate, filter type, and latency
- Linear phase digital filter options:
  - Wideband low ripple FIR filter (256 kSPS, 110 kHz maximum input bandwidth)
  - Sinc5 Filter (1.024kSPS, 208.9 kHz maximum input bandwidth, 4 μs maximum group delay)
  - Sinc3 Filter (50/60 Hz rejection)
Integrated LDO
Built-in supply decoupling capacitors
Configuration through pin strapping or SPI
Digital interface optimized for isolated applications
Suite of diagnostic check mechanisms
Operating temperature range: −40°C to +105°C

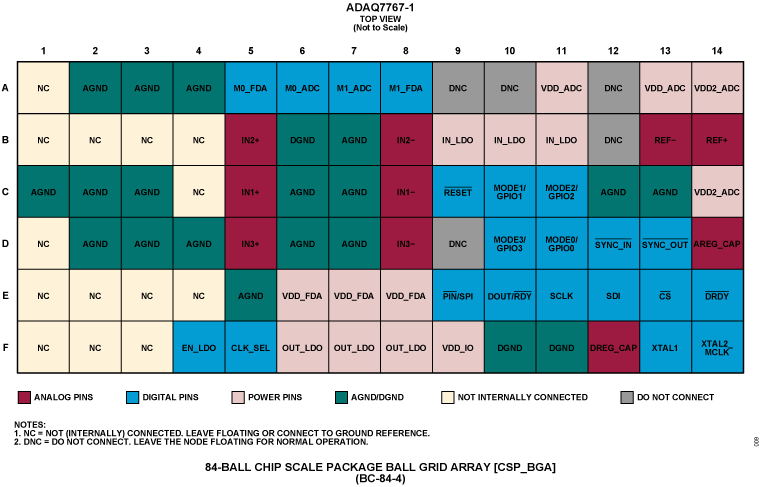

Packaging: 12 mm × 6 mm × 1.6 mm, 84-ball CSP_BGA with 0.8 mm ball pitch
- 8x footprint reduction vs. discrete solution

Part details & applications

The ADAQ7767-1 is a 24-bit precision data acquisition (DAQ) μModule^® system that encapsulates signal conditioning, conversion, and processing blocks into one system in package (SiP) design that enables rapid development of highly compact, high performance precision DAQ systems..

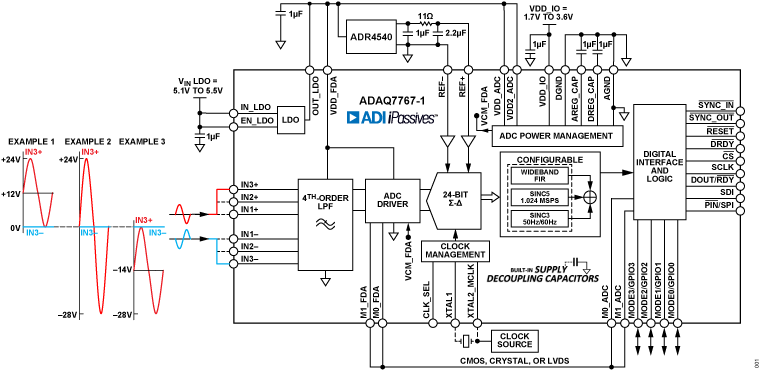

The ADAQ7767-1 consists of the following:

A fourth order, low noise, linear phase anti-aliasing filter (AAF)
A low noise, low distortion, high bandwidth, gain-selectable ADC driver plus an optional linearity boost buffer
A high-performance medium bandwidth 24-bit sigma delta ADC with programmable digital filter
A low noise, low dropout (LDO) linear regulator
Reference buffers
Critical passive components required for the signal chain

The ADAQ7767-1 supports a wide variety of input types, which include unipolar and bipolar single-ended, pseudo differential, and differential signals, with a maximum differential range of ±28.672 V and a common-mode voltage range of −16 V to +12 V using IN3. With the precision of Analog Devices iPASSIVES™ technology, the ADAQ7767-1 performs with excellent common-mode rejection ratio (CMRR). The three pairs of pin-selectable gain settings offer additional system dynamic range and improved signal chain noise performance with input signals of lower amplitude. In applications requiring high input impedance, the ADAQ7767-1 allows the customer to choose their preferred input amplifier.

A fourth-order low-pass analog filter combined with the user-programmable digital filter ensures that the signal chain is protected against the high frequency noise and out of band tones presented at the input node from aliasing back into the band of interest. The analog low pass filter is carefully designed to achieve high phase linearity and maximum in-band magnitude response flatness. Constructed with iPASSIVES techn
