AD9786

NOT RECOMMENDED FOR NEW DESIGNS

16-Bit, 500 MSPS TxDAC+® D/A Converter

Analog Devices AD9786 Product Info

10 February 2026 5

Features

16-Bit Resolution with Up to 500 MSPS DAC Update Rate
Noise Floor Performance: -164 dBm/Hz @ 20 MHz output
IMD to 300 MHz: < -70 dBc
DNL: ± 0.75 LSB
Selectable 2×/4×/8× High Performance Interpolation Filters: 200 MSPS Data Rate

SFDR @ 10 MHz: 86 dBc
Direct IF Transmission Frequencies
100-300 MHz and Higher
Selectable Data Format:
Twos Complement or Straight Binary
LVTTL/CMOS Compatible Inputs
Versatile Clock Interface
Programmable via SPI Port

Part details & applications

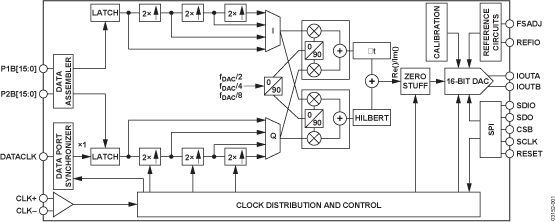

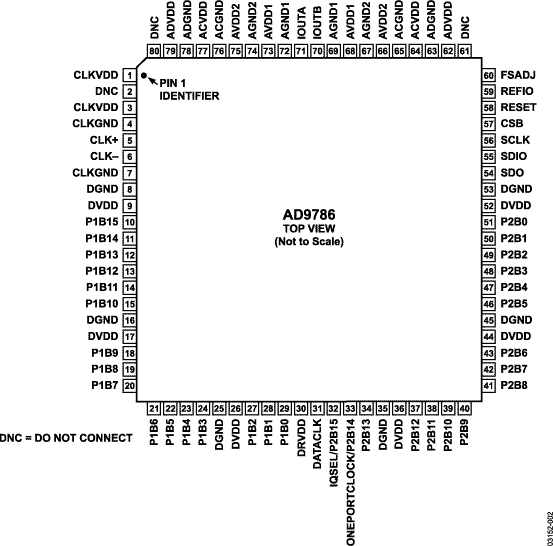

The AD9786 is the 16-bit member of the latest high-performance TxDAC+^® product family. Designed specifically to address multicarrier communications architectures, it achieves true 16-bit linearity and breakthrough noise and intermodulation distortion performance. This record-breaking performance allows synthesis of multicarrier transmit signals at intermediate frequencies (IFs) of 100 to 300 MHz and beyond. As a result, system designers can eliminate an up-conversion stage and reduce overall parts count, ultimately lowering total system cost. Its 2x/4x/8x selectable interpolation filters ease data rate and output signal reconstruction filter requirements.

APPLICATIONS

Multicarrier Basestations: CDMA2000, WCDMA, TD-SCDMA, GSM/EDGE, IS-136, Tetra
Instrumentation: RF Signal Generators, Arbitrary Waveform Generators
HDTV transmitters
Broadband Wireless systems
Digital Radio Links
Satellite Systems

TxDAC+ is a registered trademark of Analog Devices.
