AD9601

NOT RECOMMENDED FOR NEW DESIGNS

10-Bit, 200 MSPS/250 MSPS 1.8 V Analog-to-Digital Converter

Analog Devices AD9601 Product Info

10 February 2026 7

Features

  • SNR = 59.4 dBFS @ fIN up to 70 MHz @ 250 MSPS
  • ENOB of 9.7 @ fIN up to 70 MHz @ 250 MSPS (−1.0 dBFS)
  • SFDR = 81 dBc @ fIN up to 70 MHz @ 250 MSPS (−1.0 dBFS)
  • Excellent linearity
    DNL = 0.2 LSB typical
    INL = 0.2 LSB typical
  • CMOS outputs
    Single data port at up to 250 MHz
    Demultiplexed dual port at up to 2 × 125 MHz
  • 700 MHz full power analog bandwidth
  • On-chip reference, no external decoupling required
  • Integrated input buffer and track-and-hold
  • Low power dissipation
    274 mW @ 200 MSPS
    322 mW @ 250 MSPS
  • Programmable input voltage range
    1.0 V to 1.5 V, 1.25 V nominal
  • 1.8 V analog and digital supply operation
  • Selectable output data format (offset binary, twos complement, Gray code)

Part details & applications

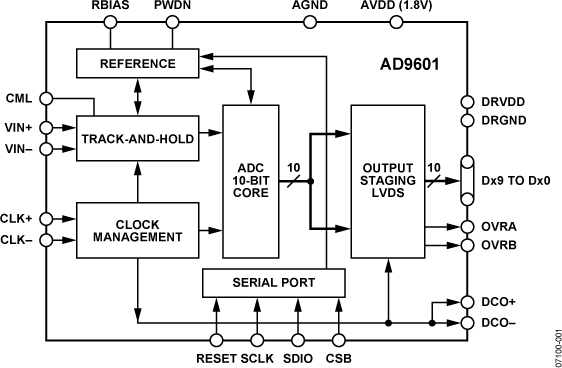

The AD9601 is a 10-bit monolithic sampling analog-to-digital converter optimized for high performance, low power, and ease of use. The product operates at up to a 250 MSPS conversion rate and is optimized for outstanding dynamic performance in wideband carrier and broadband systems. All necessary functions, including a track-and-hold (T/H) and voltage reference, are included on the chip to provide a complete signal conversion solution.

The ADC requires a 1.8 V analog voltage supply and a differential clock for full performance operation. The digital outputs are CMOS compatible and support either twos complement, offset binary format, or Gray code. A data clock output is available for proper output data timing.

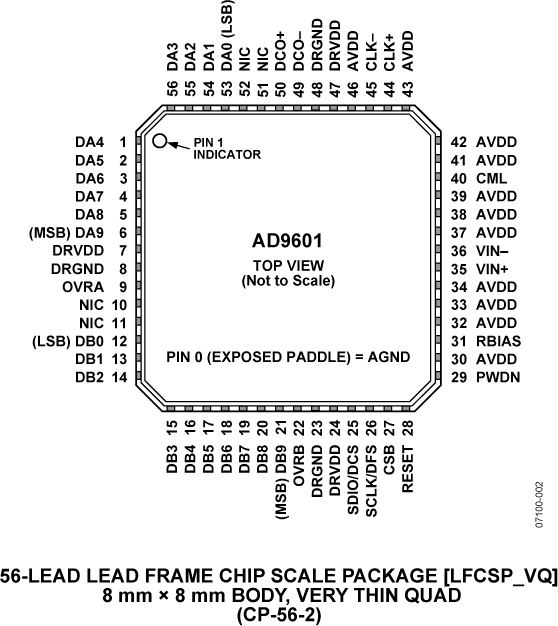

Fabricated on an advanced CMOS process, the AD9601 is available in a 56-lead LFCSP, specified over the industrial temperature range (−40°C to +85°C).

PRODUCT HIGHLIGHTS

  1. High Performance–Maintains 59.4 dBFS SNR @ 250 MSPS with a 70 MHz input.
  2. Low Power–Consumes only 322 mW @ 250 MSPS.
  3. Ease of Use–CMOS output data and output clock signal allow interface to current FPGA technology. The on-chip reference and sample-and-hold provide flexibility in system design. Use of a single 1.8 V supply simplifies system power supply design.
  4. Serial Port Control–Standard serial port interface supports various product functions, such as data formatting, power-down, gain adjust, and output test pattern generation.
  5. Pin-Compatible Family–12-bit pin-compatible family offered as the AD9626.

APPLICATIONS

  • Wireless and wired broadband communications
  • Cable reverse path
  • Communications test equipment
  • Radar and satellite subsystems
  • Power amplifier linearization
