AD9284

RECOMMENDED FOR NEW DESIGNS

8-Bit, 250 MSPS, 1.8 V Dual Analog-to-Digital Converter (ADC)

Analog Devices AD9284 Product Info

10 February 2026 7

Features

Single 1.8 V supply operation
SNR: 49.3 dBFS at 200 MHz input at 250 MSPS
SFDR: 65 dBc at 200 MHz input at 250 MSPS
Low power: 314 mW at 250 MSPS
On-chip reference and track-and-hold
1.2 V p-p analog input range each channel
Differential input with 500 MHz bandwidth

DNL: ±0.2 LSB
Serial port control options
Offset binary, Gray code, or twos complement data format
Optional clock duty cycle stabilizer
Built-in selectable digital test pattern generation
Pin-programmable power-down function

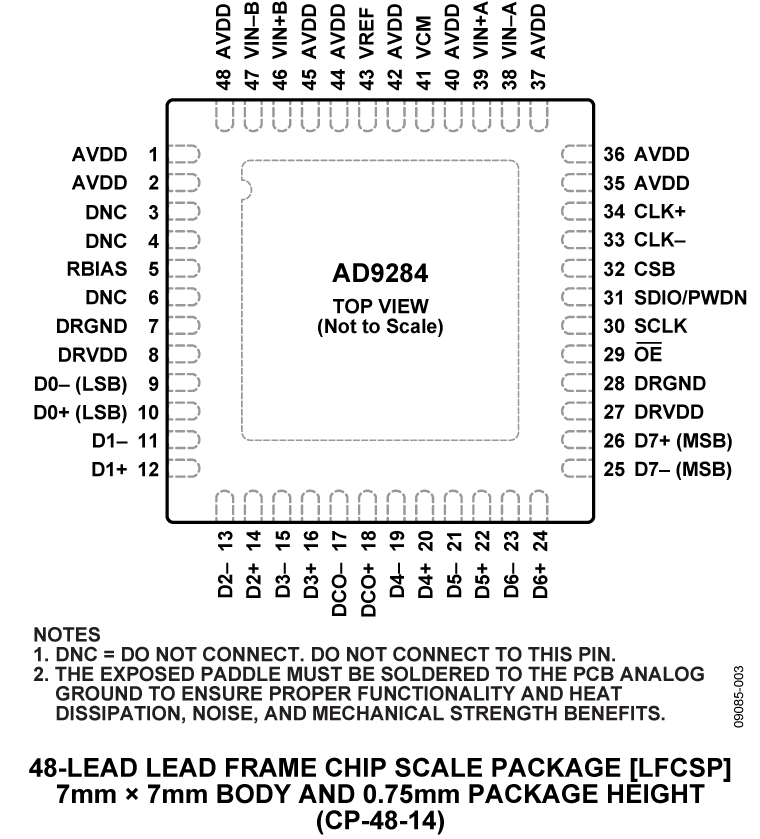

Available in 48-lead LFCSP

Part details & applications

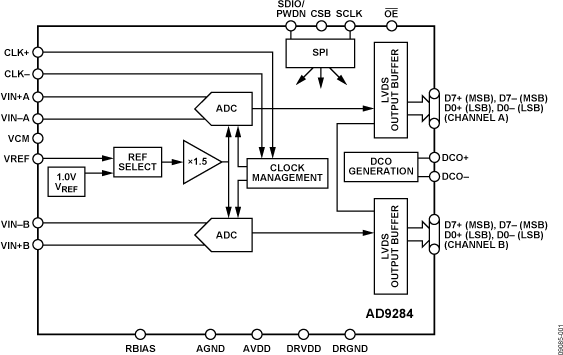

The AD9284 is a dual 8-bit, monolithic sampling, analog-to-digital converter (ADC) that supports simultaneous operation and is optimized for low cost, low power, and ease of use. Each ADC operates at up to a 250 MSPS conversion rate with outstanding dynamic performance.

The ADC requires a single 1.8 V supply and an encode clock for full performance operation. No external reference components are required for many applications. The digital outputs are LVDS compatible.

The AD9284 is available in a Pb-free, 48-lead LFCSP that is specified over the industrial temperature range of −40°C to +85°C.

PRODUCT HIGHLIGHTS

Integrated dual 8-bit , 250 MSPS ADC.
Single 1.8 V supply operation with LVDS outputs.
Power-down option that is controlled through a pin programmable setting.

APPLICATIONS

Communications
Diversity radio systems
I/Q demodulation systems
Battery-powered instruments
Handheld scope meters
Low cost digital oscilloscopes
OTS: video over fiber
