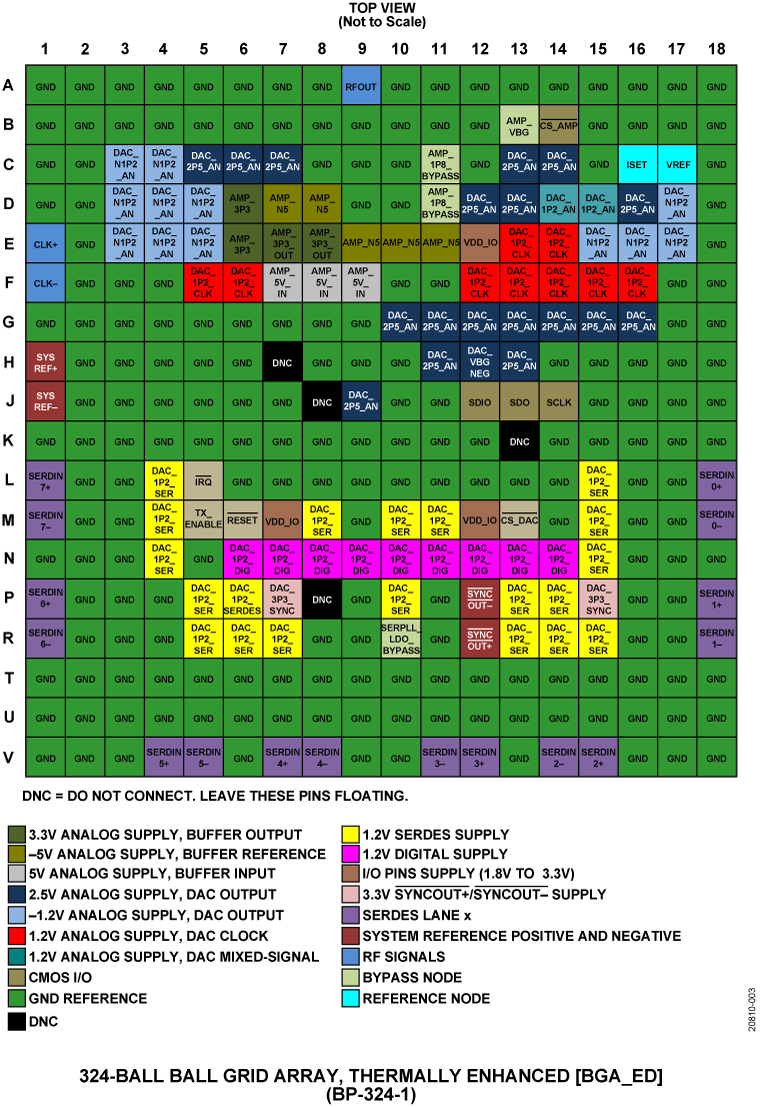

AD9166

RECOMMENDED FOR NEW DESIGNS

DC to 9 GHz, Vector Signal Generator

Analog Devices AD9166 Product Info

10 February 2026 5

Features

  • DC-coupled, 50 Ω matched output
  • Up to 4.3 dBm output power, −9.5 dBm at 9 GHz
  • DAC core update rate: 12.0 GSPS (guaranteed minimum) in 2× NRZ mode
  • Wide analog bandwidth
    • DC to 9.0 GHz in 2× NRZ mode (12.0 GSPS DAC update rate)
    • 1.0 GHz to 8.0 GHz in mix mode (6.0 GSPS DAC update rate)
    • DC to 4.5 GHz in NRZ mode (6.0 GSPS DAC update rate)
  • Power dissipation of 4.88 W in 2× NRZ mode (10 GSPS DAC update rate)
  • Bypassable datapath interpolation
    • 2×, 3×, 4×, 6×, 8×, 12×, 16×, 24×
  • Instantaneous (complex) signal bandwidth
    • 2.25 GHz with device clock at 5 GHz (2× interpolation)
    • 1.8 GHz with device clock at 6 GHz (3× interpolation)
  • Fast frequency hopping
  • Integrated biCMOS buffer amplifier

Part details & applications

The AD91661 is a high performance, wideband, on-chip vector signal generator composed of a high speed JESD204B serializer/deserializer (SERDES) interface, a flexible 16-bit digital datapath, a inphase/quadrature (I/Q) digital-to-analog converter (DAC) core, and an integrated differential to single-ended output buffer amplifier, matched to a 50 Ω load up to 10 GHz.

The DAC core is based on a quad-switch architecture, which is configurable to increase the effective DAC core update rate of up to 12.8 GSPS from a 6.4 GHz DAC sampling clock, with an analog output bandwidth of true dc to 9.0 GHz, typically. The digital datapath includes multiple interpolation filter stages, a direct digital synthesizer (DDS) block with multiple numerically controlled oscillators (NCOs) supporting fast frequency hopping (FFH), and additional FIR85 and inverse sinc filter stages to allow flexible spectrum planning.

The differential to single-ended buffer eliminates the need for a wideband balun, and supports the full analog output bandwidth of the DAC core. DC coupling the output allows baseband waveform generation without the need for external bias tees or similar circuitry, which makes the AD9166 uniquely suited for the most demanding high speed ultrawideband RF transmit applications.

The various filter stages enable the AD9166 to be configured for lower data rates, while maintaining higher DAC clock rates to ease the filtering requirements and reduce the overall system size, weight, and power.

The data interface receiver consists of up to eight JESD204B SERDES lanes, each capable of carrying up to 12.5 Gbps. To enable maximum flexibility, the receiver is fully configurable according to the data rate, number of SERDES lanes, and lane mapping required by the JESD204B transmitter.

In 2× nonreturn-to-zero (NRZ) mode of operation (with FIR85 enabled), the AD9166 can reconstruct RF carriers from true
