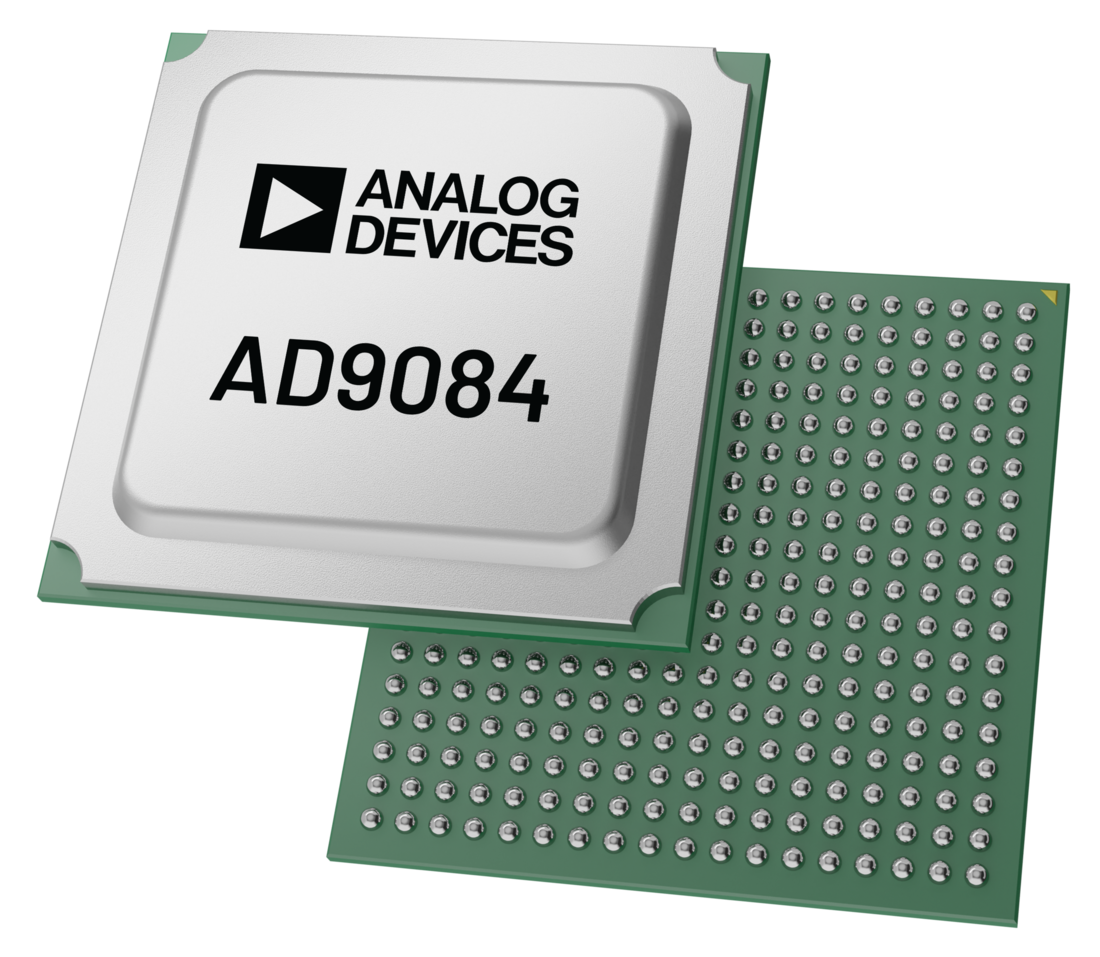

AD9084

RECOMMENDED FOR NEW DESIGNS

Apollo MxFE Quad, 16-Bit, 28GSPS RF DAC and Quad, 12-Bit, 20 GSPS RF ADC

Analog Devices AD9084 Product Info

10 February 2026 6

Features

Reconfigurable mixed signal platform design
4 16-bit RF DACs and 4 12-bit RF ADCs (4T4R)
Usable RF analog bandwidth to 18GHz
Fast detect with low latency for fast AGC control
Spectrum sniffer and monitor
Signal monitor for slow AGC control
Multiple loopback (ADC to DAC)
Power amplifier downstream protection circuitry
Maximum DAC/ADC sample rate up to 28GSPS/20GSPS
Versatile digital features
Maximum instantaneous bandwidth of 10GHz per channel (2T2R)

Programmable FIR filters at full ADC and DAC sample rates
Configurable fine and coarse DDCs and DUCs
Fast frequency hopping with profiles
Dynamic configuration through SPI, HSCI, GPIO, or external trigger (TRIG)
Programmable fractional data rate resampler from 1× to 2×
JESD204B and JESD204C: 20Gbps and 28.21Gbps
On-chip temperature monitoring unit
Package: 24mm × 26mm, 899-ball BGA with 0.8mm pitch

Part details & applications

The mixed signal front-end (Apollo MxFE™ ) is a highly integrated device with a -bit, 28GSPS maximum sample rate, RF digital-to-analog converter (DAC) core, and 12-bit, 20GSPS maximum sample rate, RF analog-to-digital converter (ADC) core. The AD9084 supports four transmitter channels and four receiver channels. The AD9084 is well suited for applications requiring both wideband ADCs and DACs to process signal(s) having wide instantaneous bandwidth. The device features a 48 lane, 28.21Gbps JESD204C or 20Gbps JESD204B data transceiver port, an on-chip clock multiplier, and a digital signal processing (DSP) capability targeted at either wideband or multiband, direct to RF applications. The AD9084 also features a bypass mode that allows the full bandwidth capability of the ADC and/or DAC cores to bypass the DSP datapaths. The device also features low latency loopback and frequency hopping modes targeted at phased array radar systems and electronic warefare applications.

The AD9084 is available in a 24mm × 26mm, 899-ball BGA_ED.

Applications

Radar and phase array systems
Seeker front end
Tactical defense radio infrastructure
Electronic warfare and signal intelligence
Wireless communications infrastructure
Wireless communications test (5G mmWave, 5G C band, backhaul)
