AD7980

PRODUCTION

16-Bit, 1 MSPS, PulSAR ADC in MSOP/LFCSP

Analog Devices AD7980 Product Info

10 February 2026 6

Features

High performance

Pseudo differential analog input range

0 V to V_REF with V_REF between 2.5 V to 5 V

Throughput: 1 MSPS

Zero latency architecture
16-bit resolution with no missing codes
INL: ±0.6 LSB typical, ±1.25 LSB maximum
Dynamic range: 92 dB, V_REF = 5 V
SNR: 91.5 dB at f_IN = 10 kHz, V_REF = 5 V
THD: −114 dB at f_IN = 10 kHz, V_REF = 5 V
SINAD: 91 dB at f_IN = 10 kHz, V_REF = 5 V

Low power dissipation

Single-supply 2.5 V operation with 1.8 V/2.5 V/3 V/5 V logic interface
4 mW at 1 MSPS (VDD only)
7 mW at 1 MSPS (total)
70 μW at 10 kSPS

Proprietary serial interface

SPI/QSPI/MICROWIRE^™/DSP compatible

Daisy-chain multiple ADCs and busy indicator

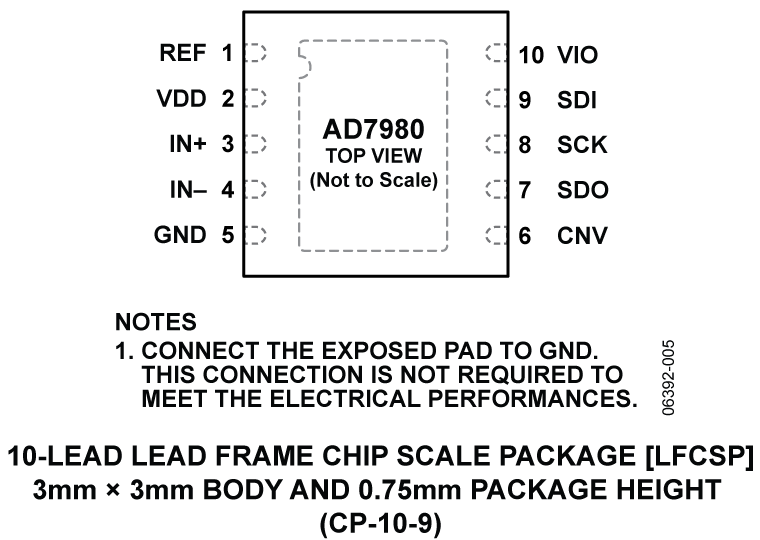

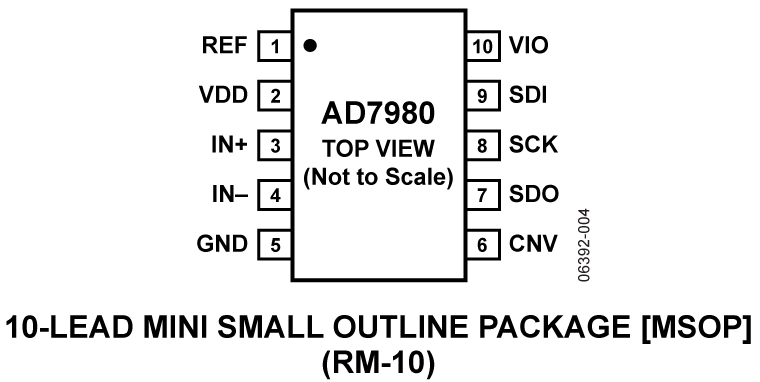

10-lead MSOP, 10-lead, 3 mm × 3 mm LFCSP

Wide operating temperature range: −40°C to +125°C

AD7980-EP supports defense and aerospace applications (AQEC)

Download AD7980-EP data sheet (pdf)
Controlled manufacturing baseline
One assembly/test site
One fabrication site
Enhanced product change notification
Qualification data available on request
Military temperature range: −55°C to +125°C
V62/12640 DSCC Drawing Number

Part details & applications

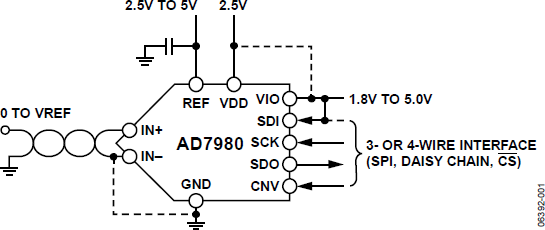

The AD7980 is a 16-bit, successive approximation, analog-to-digital converter (ADC) that operates from a single power supply, VDD. It contains a low power, high speed, 16-bit sampling ADC and a versatile serial interface port. On the CNV rising edge, it samples an analog input IN+ between 0 V to REF with respect to a ground sense IN−. The reference voltage, REF, is applied externally and can be set independent of the supply voltage, VDD. Its power scales linearly with throughput.

The SPI-compatible serial interface also features the ability, using the SDI input, to daisy-chain several ADCs on a single, 3-wire bus and provides an optional busy indicator. It is compatible with 1.8 V, 2.5 V, 3 V, or 5 V logic, using the separate supply VIO.

The AD7980 is housed in a 10-lead MSOP or a 10-lead QFN (LFCSP) with operation specified from −40°C to +125°C.

APPLICATIONS

Automated test equipment
Data acquisition systems
Medical instruments
Machine automation
