LTC3873

PRODUCTION

No RSENSE™ Constant Frequency Current Mode Boost/Flyback/SEPIC DC/DC Controller

Analog Devices LTC3873 Product Info

10 February 2026 5

Features

V_IN and V_OUT Limited Only by External Components
Internal or Programmable External Soft-Start
Constant Frequency 200kHz Operation
Adjustable Current Limit
Current Sense Resistor Optional
Maximum 60V on SW Node with R_DS(ON) Sensing

±1.5% Voltage Reference Accuracy
Current Mode Operation for Excellent Line and Load Transient Response
Low Quiescent Current: 300µA
Low Profile (1mm) ThinSOT^™ and (0.75mm) 2mm × 3mm DFN Package

Part details & applications

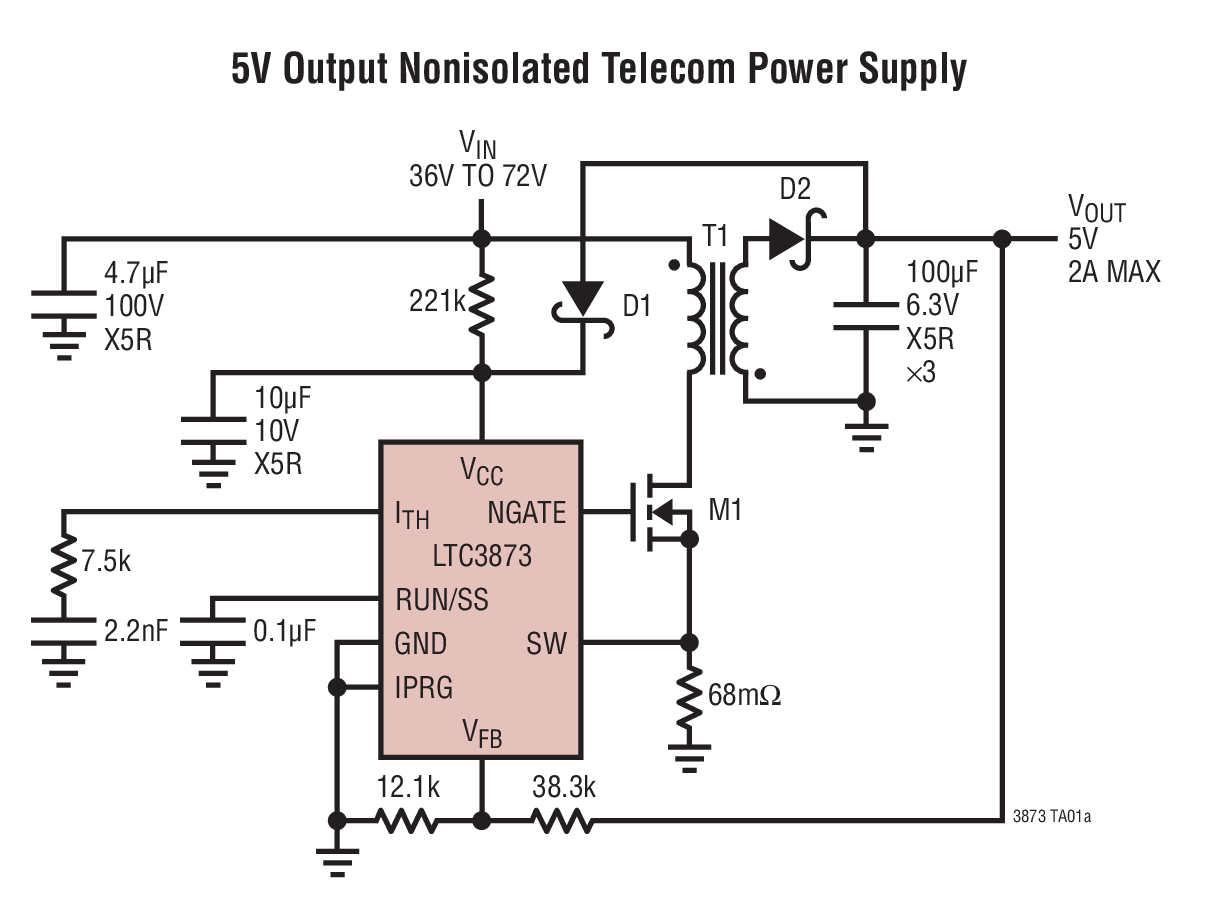

The LTC3873 is a constant frequency, current mode, boost, flyback or SEPIC DC/DC controller that drives an N-channel power MOSFET in high input and output voltage converter applications. Soft-start can be programmed using an external capacitor.

The LTC3873 provides ±1.5% output voltage accuracy and consumes only 300μA quiescent current during normal operation and only 55μA during micropower start-up. Using a 9.3V internal shunt regulator, the LTC3873 can be powered from a high input voltage through a resistor or it can be powered directly from a low impedance DC voltage of 9V or less.

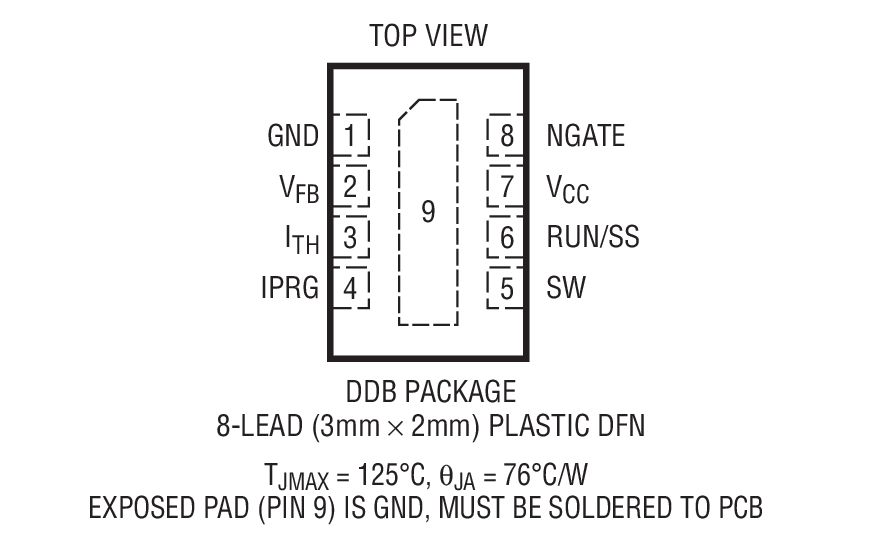

The LTC3873 is available in 8-lead ThinSOT and 2mm x 3mm DFN packages.


	LTC3873	LTC3873-5
