AD7960

PRODUCTION

18-Bit, 5 MSPS PULSAR® Differential ADC

Analog Devices AD7960 Product Info

10 February 2026 4

Features

Throughput: 5 MSPS
18-bit resolution with no missing codes
SNR 99 dB
INL +/-0.8 LSB
DNL +/-0.5 LSB
True differential analog input voltage range: ±4.096 V or ±5 V

Low power dissipation (39 mW)
SAR architecture
External reference options
Serial LVDS interface

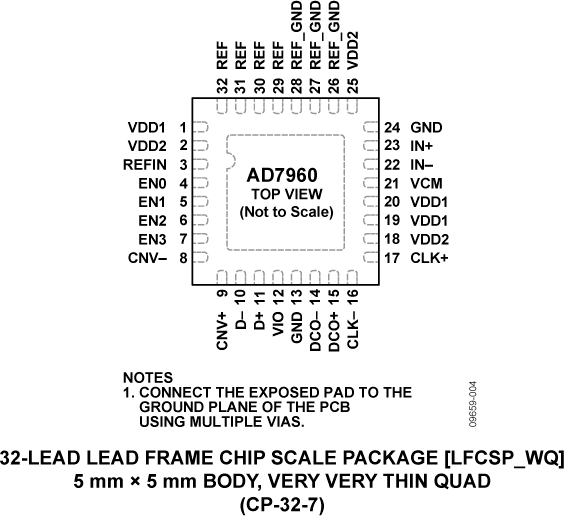

32-lead, 5mm × 5mm LFCSP (QFN)
See datasheet for more details

Part details & applications

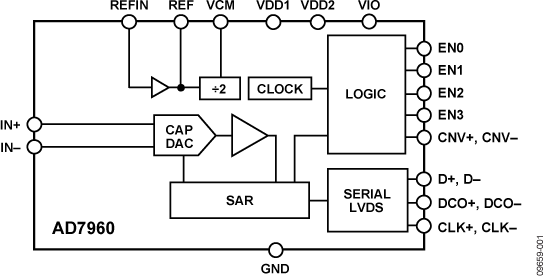

The AD7960 is an 18-bit, 5 MSPS charge redistribution successive approximation (SAR), analog-to-digital converter (ADC). The SAR architecture allows unmatched performance both in noise and in linearity. The AD7960 contains a low power, high speed, 18-bit sampling ADC, an internal conversion clock and an internal reference buffer. On the CNV± edge, the AD7960 samples the voltage difference between the IN+ and IN− pins. The voltages on these pins swing in opposite phase between 0 V and 4.096 V/5 V. The reference voltage is applied to the part externally. All conversion results are available on a single LVDS self-clocked or echo-clocked serial interface.

The AD7960 is available in a 32-lead LFCSP (QFN) with operation specified from −40°C to +85°C.

APPLICATIONS

Digital imaging systems
Digital X-rays
Computed tomography
IR cameras
MRI gradient control
High speed data acquisition
Spectroscopy
Test equipment
