• 8/6/4 simultaneously sampled inputs
• Single 5 V analog supply and 2.3 V to 5 V V_DRIVE
• _{Pin to pin compatible with the state-of-the-art AD7606B}
• Fully integrated data acquisition solution
  • Analog input clamp protection
  • Input buffer with 1 MΩ analog input impedance
  • Second-order antialiasing analog filter
  • On-chip accurate reference and reference buffer
  • 16-bit ADC with 200 kSPS on all channels
  • Oversampling capability with digital filter
• Performance
  • 7 kV ESD rating on analog input channels
  • See Data Sheet for additional features

• SPI/QSPI^™/MICROWIRE^™/DSP compatible
• Temperature range: −40°C to +85°C

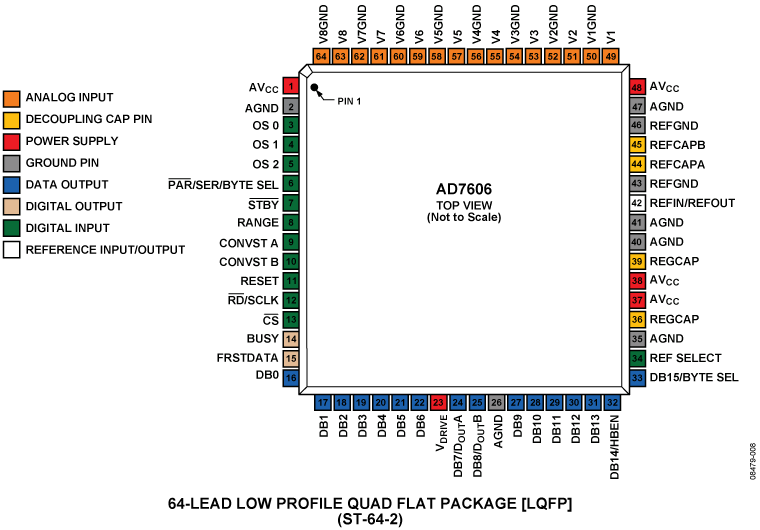

• 64-lead LQFP package
• Flexible parallel/serial interface
• True bipolar analog input ranges: ±10 V, ±5 V

AD7606-EP supports defense and aerospace applications (AQEC standard)

• Download AD7606-EP data sheet (pdf)
• Military temperature range −55°C to +125°C
• Controlled manufacturing baseline
• One assembly/test site
• One fabrication site
• Product change notification
• Qualification data available on request
• V62/18611

Part details & applications

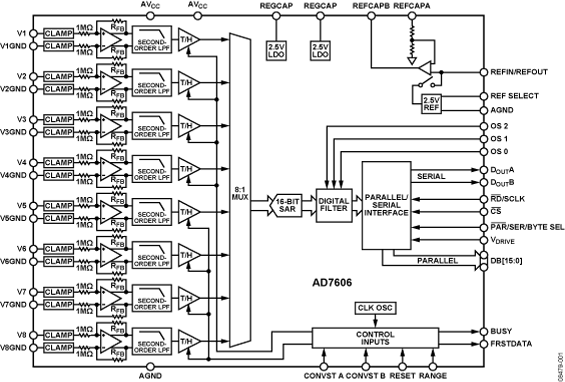

The AD7606/AD7606-6/AD7606-4 are 16-bit, simultaneous sampling, analog-to-digital data acquisition systems (DAS) with eight, six, and four channels, respectively. Each part contains analog input clamp protection, a second-order antialiasing filter, a track-and-hold amplifier, a 16-bit charge redistribution successive approximation analog-to-digital converter (ADC), a flexible digital filter, a 2.5 V reference and reference buffer, and high speed serial and parallel interfaces.

The AD7606/AD7606-6/AD7606-4 operate from a single 5 V supply and can accommodate ±10 V and ±5 V true bipolar input signals while sampling at throughput rates up to 200 kSPS for all channels. The input clamp protection circuitry can tolerate voltages up to ±16.5 V. The AD7606 has 1 MΩ analog input impedance regardless of sampling frequency. The single supply operation, on-chip filtering, and high input impedance eliminate the need for driver op amps and external bipolar supplies. The AD7606/AD7606-6/AD7606-4 antialiasing filter has a 3 dB cutoff frequency of 22 kHz and provides 40 dB antialias rejection when sampling at 200 kSPS. The flexible digital filter is pin driven, yields improvements in SNR, and reduces the 3 dB bandwidth.

Applications

• Power-line monitoring and protection systems
• Multiphase motor control
• Instrumentation and control systems
• Multiaxis positioning systems
• Data acquisition systems (DAS)
