AD7547

NOT RECOMMENDED FOR NEW DESIGNS

Dual 12-Bit CMOS DAC with Parallel Load Input Structure

Analog Devices AD7547 Product Info

10 February 2026 6

Features

Two 12-bit DACs in One Package
DAC Ladder Resistance Matching: 0.5%
Space Saving Skinny DIP and Suface Mount Packages

4-Quadrant Multiplication
Low Gain Error (1 LSB max Over Temperature)
Fast Interface Timing

Part details & applications

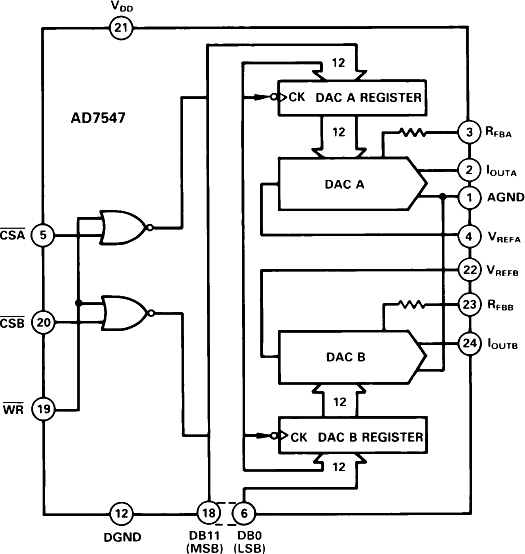

The AD7547 contains two 12-bit current output DACs on one monolithic chip. Also on-chip are the level shifters, data registers and control logic for easy microprocessor interfacing. There are 12 data inputs. CSA, CSB, WR control DAC selection and loading. Data is latched into the DAC registers on the rising edge of WR. The device is speed compatible with most microprocessors and accepts TTL, 74HC and 5V CMOS logic level inputs.

The D/A converters provide 4-quadrant multiplication capabilities with separate reference inputs and feedback resistors. Monolithic construction ensures that thermal and gain error tracking is excellent. 12-bit monotonicity is guaranteed for both DACs over the full temperature range.

The AD7547 is manufactured using the Linear Compatible CMOS (LC²MOS) process. This allows fast digital logic and precision linear circuitry to be fabricated on the same die.

APPLICATIONS

Automatic Test Equipment
Programmable Filters
Audio Applications
Synchro Applications
Process Control
