AD7490

PRODUCTION

16-Channel, 1 MSPS, 12-Bit ADC with Sequencer

Analog Devices AD7490 Product Info

10 February 2026 6

Features

  • Fast throughput rate: 1 MSPS
  • Specified for VDD of 2.7 V to 5.25 V
  • Low power at maximum throughput rates
  • 5.4 mW maximum at 870 kSPS with 3 V supplies
  • 12.5 mW maximum at 1 MSPS with 5 V supplies
  • 16 (single-ended) inputs with sequencer
  • Wide input bandwidth: 69.5 dB SNR at 50 kHz input frequency
  • Flexible power/serial clock speed management
  • No pipeline delays
  • High speed serial interface, SPI/QSPI/MICROWIRE/ DSP compatible
  • Full shutdown mode: 0.5 μA maximum
  • 28-lead TSSOP and 32-lead LFCSP packages
  • AEC-Q100 qualified for automotive applications
AD7490-EP supports defense and aerospace applications (AQEC standard)
  • Download AD7490-EP Data Sheet (pdf)
  • Military temperature range (−55°C to +125°C)
  • Controlled manufacturing baseline
  • One assembly/test site
  • One fabrication site
  • Enhanced product change notification
  • Qualification data available on request
  • V62/12635 DSCC Drawing Number

Part details & applications

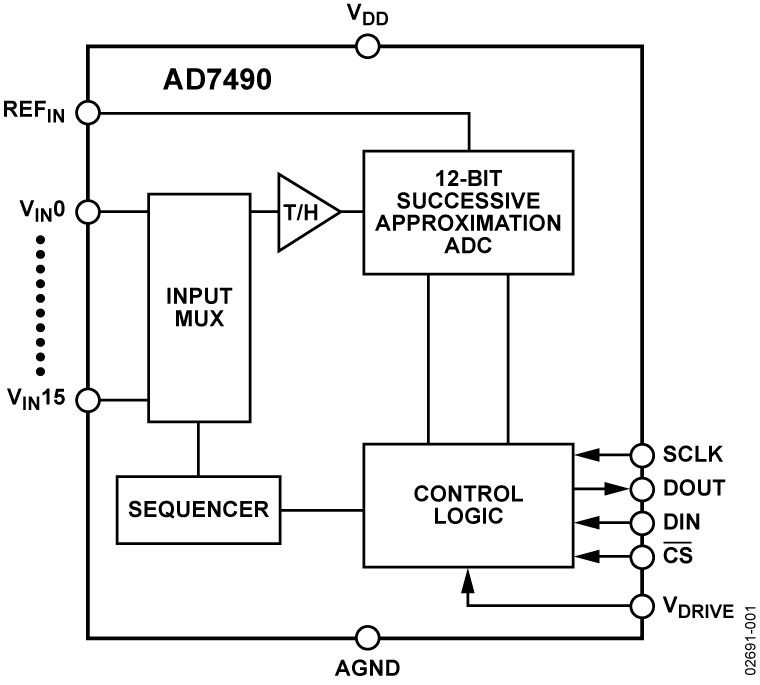

The AD7490 is a 12-bit high speed, low power, 16-channel, successive approximation ADC. The part operates from a single 2.7 V to 5.25 V power supply and features throughput rates up to 1 MSPS. The part contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 1 MHz.

The conversion process and data acquisition are controlled using CS and the serial clock signal, allowing the device to easily interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS, and conversion is also initiated at this point. There are no pipeline delays associated with the part.

The AD7490 uses advanced design techniques to achieve very low power dissipation at high throughput rates. For maximum throughput rates, the AD7490 consumes just 1.8 mA with 3 V supplies, and 2.5 mA with 5 V supplies.

By setting the relevant bits in the control register, the analog input range for the part can be selected to be a 0 V to REFIN input or a 0 V to 2 × REFIN input, with either straight binary or twos complement output coding. The AD7490 features 16 single-ended analog inputs with a channel sequencer to allow a preprogrammed selection of channels to be converted sequen-tially. The conversion time is determined by the SCLK frequency because this is also used as the master clock to control the conversion.

The AD7490 is available in a 32-lead LFCSP and a 28-lead TSSOP package.

APPLICATIONS

  • Multichannel system monitoring
  • Battery-powered equipment
  • Power line monitoring
  • Data acquisition, instrumentation, and process control
