AD7091R-2

PRODUCTION

2-Channel, 1 MSPS, Ultralow Power, 12-Bit ADC in 16-Lead TSSOP

Analog Devices AD7091R-2 Product Info

10 February 2026 6

Features

  • Ultralow system power
    • Flexible power/throughput rate management
  • High performance
    • 1 MSPS throughput with no latency/pipeline delay
    • SNR: 70 dB typical at 10 kHz input frequency
    • THD: −80 dB typical at 10 kHz input frequency
    • INL: ±0.7 LSB typical, ±1.0 LSB maximum
  • Small system footprint
    • On-chip accurate 2.5 V reference, 5 ppm/°C typical drift
    • MUXOUT/ADCIN to allow single buffer amplifier
    • Daisy-chain mode

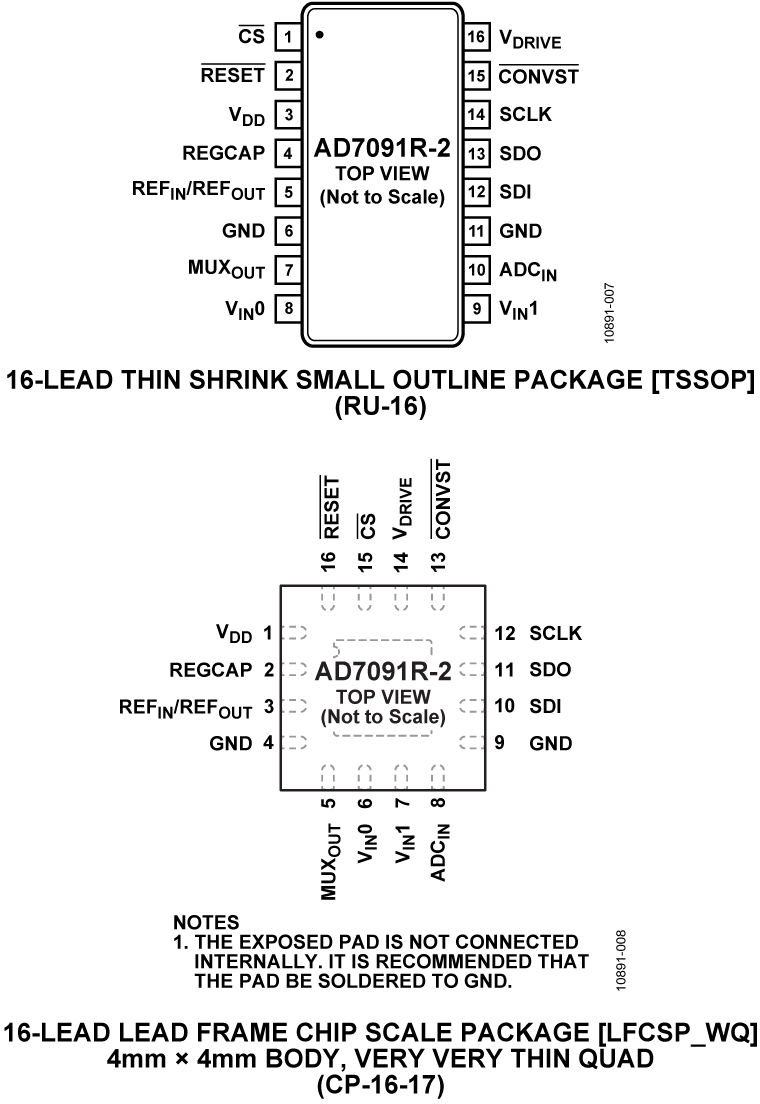

    • 16-lead, 20-lead, and
      24-lead 4 mm × 4 mm LFCSP packages
  • See data sheet for additional features.

Part details & applications

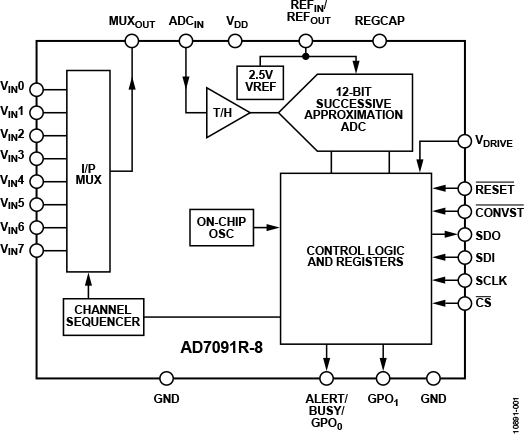

The AD7091R-2 / AD7091R-4 / AD7091R-8 family is a multichannel 12-bit, ultralow power, successive approximation analog-to-digital converter (ADC) that is available in two, four, or eight analog input channel options. The AD7091R-2 / AD7091R-4 / AD7091R-8 operate from a single 2.7 V to 5.25 V power supply and are capable of achieving a sampling rate of 1 MSPS.

The AD7091R-2 / AD7091R-4 / AD7091R-8 family offers up to eight single-ended analog input channels with a channel sequencer that allows a preprogrammed selection of channels to be converted sequentially. The AD7091R-2 / AD7091R-4 / AD7091R-8 also feature an on-chip conversion clock, an on-chip accurate 2.5 V reference, and a high speed serial interface.

The AD7091R-2 / AD7091R-4 / AD7091R-8 have a serial port interface (SPI) that allows data to be read after the conversion while achieving a 1 MSPS throughput rate. The conversion process and data acquisition are controlled using the CONVST pin.

The AD7091R-2 / AD7091R-4 / AD7091R-8 use advanced design techniques to achieve ultralow power dissipation at high throughput rates. They also feature flexible power management options. An on-chip configuration register allows the user to set up different operating conditions. These include power management, alert functionality, busy indication, channel sequencing, and general-purpose output pins. The MUXOUT and ADCIN pins allow signal conditioning of the multiplexer output prior to acquisition by the ADC.

Applications

  • Battery powered systems
  • Personal digital assistants
  • Medical instruments
  • Mobile communications
  • Instrumentation and control systems
  • Data acquisition systems
  • Optical sensors
