AD5706R

RECOMMENDED FOR NEW DESIGNS

4-Channel, 16-Bit, Current Output DAC with On-Chip Reference and SPI

Analog Devices AD5706R Product Info

10 February 2026 5

Features

4-channel, 16-bit, current output DAC
Programmable output current ranges per channel
- 50mA, 150mA, 200mA, and 300mA
Flexible 1.65V to 3.6V output supply voltages
Separate voltage supply per output channel
0.3V maximum dropout voltage per channel
Internal switches to ground on IOUT pins

2.5V on-chip voltage reference
50MHz SPI interface
Load DAC, A/B toggle, and dither functions
Integrated analog diagnostic monitoring
Integrated thermal warning alert

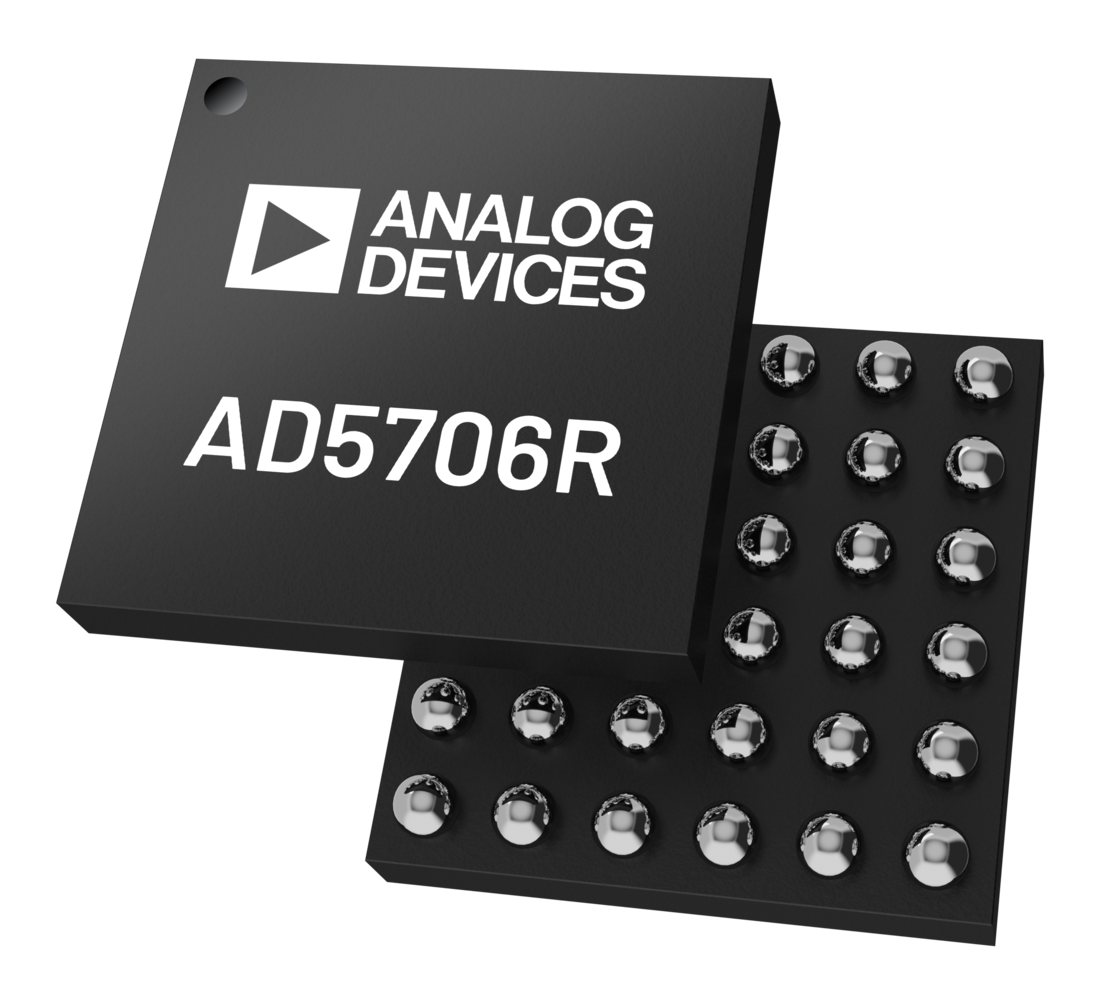

36-ball 2.55mm × 2.55mm WLCSP

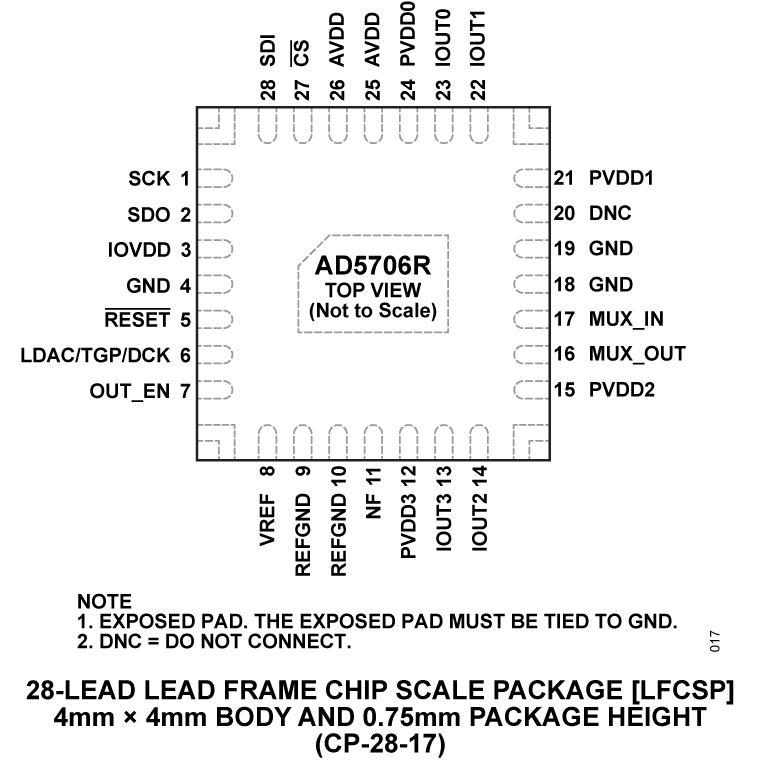

28-pin 4mm × 4mm LFCSP
Operating temperature: –40⁰C to +125⁰C

Part details & applications

The AD5706R is a 4-channel, 16-bit resolution, low noise programmable current output, digital-to-analog converter (DAC). The device is ideal for applications such as photonics control and current-mode biasing.

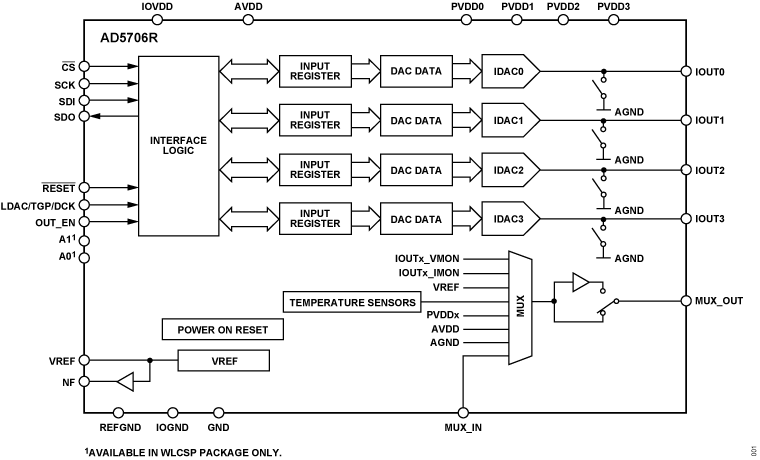

The device features an integrated 2.5V voltage reference, along with load DAC, A/B toggle, and dither functions. An onboard multiplexer allows for monitoring of supply and output voltages, output currents, and the internal die temperature.

The AD5706R supports several programmable output current ranges, with a maximum of 300mA. With addressable pins, up to four devices can share a single SPI bus for communication.

Each DAC channel operates independently with its own positive power supply rail (PVDDx) that can range from 1.65V to 3.6V, optimizing both power efficiency and thermal performance. The device requires a 2.9V to 3.6V AVDD supply and is rated for operation across a wide temperature range from −40°C to +125°C.

APPLICATIONS

Photonics control
Optical communications
LED driver programmable current source
Current-mode biasing
