Analog Devices LTC1454 Product Info

• 12-Bit Resolution
• Buffered True Rail-to-Rail Voltage Output
• 5V Operation, I_CC: 700µA Typ (LTC1454)
• 3V Operation, I_CC: 450µA Typ (LTC1454L)
• Built-In Reference: 2.048V (LTC1454)
• 1.220V (LTC1454L)
• CLR Pin
• Power-On Reset

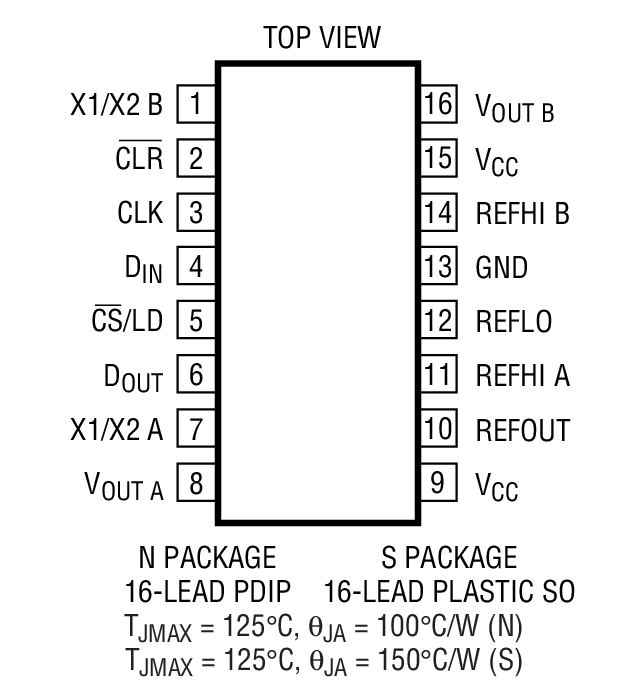

• 16-Lead SO Package
• 3-Wire Cascadable Serial Interface
• Maximum DNL Error: 0.5LSB
• Low Cost

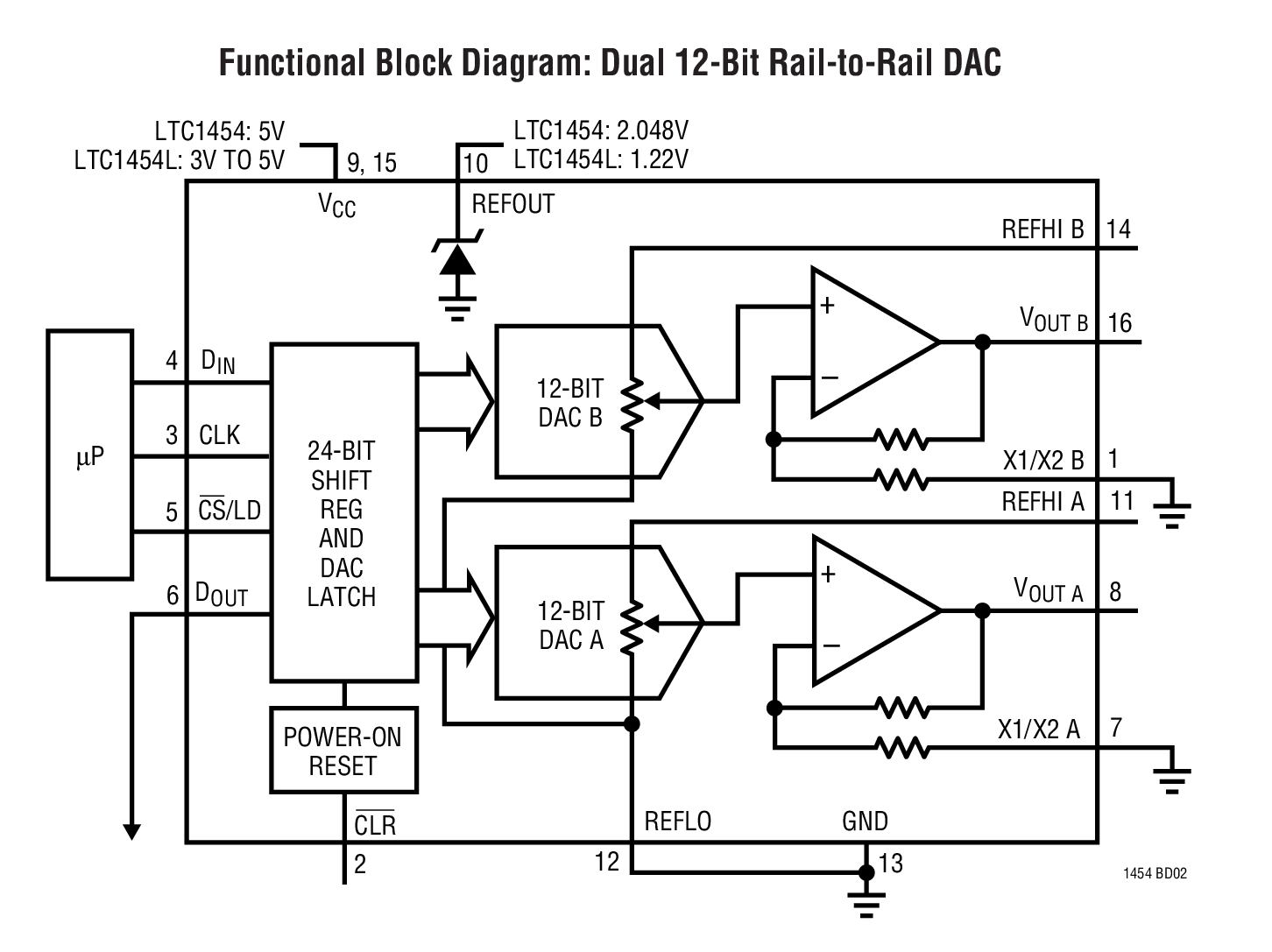

The LTC1454/LTC1454L are complete single supply, dual rail-to-rail voltage output, 12-bit digital-to-analog converters (DACs) in a 16-lead SO package. They include an output buffer amplifier with variable gain (×1 or ×2) and an easy-to-use 3-wire cascadable serial interface.

The LTC1454 has an on board reference of 2.048V and a full-scale output of 4.095V in a ×2 gain configuration. It operates from a single 4.5V to 5.5V supply.

The LTC1454L has an on board 1.22V reference and a full-scale output of 2.5V in a ×2 gain configuration. It operates from a single 2.7V to 5.5V supply.

Low power supply current, excellent DNL and small size allow these parts to be used in a host of applications where size, DNL and single supply operation are important.

Applications

• Digital Calibration
• Industrial Process Control
• Automatic Test Equipment
• Cellular Telephones
