Analog Devices AD5696 Product Info

• High relative accuracy (INL): ±2 LSB maximum at 16 bits
• Tiny package: 3 mm × 3 mm, 16-lead LFCSP
• Total unadjusted error (TUE): ±0.1% of FSR maximum
• Offset error: ±1.5 mV maximum
• Gain error: ±0.1% of FSR maximum
• High drive capability: 20 mA, 0.5 V from supply rails
• User-selectable gain of 1 or 2 (GAIN pin)
• Reset to zero scale or midscale (RSTSEL pin)
• 1.8 V logic compatibility
• 400 kHz I²C-compatible serial interface
• 4 I²C addresses available
• Low glitch: 0.5 nV-sec
• Low power: 1.8 mW at 3 V
• 2.7 V to 5.5 V power supply
• −40°C to +105°C temperature range

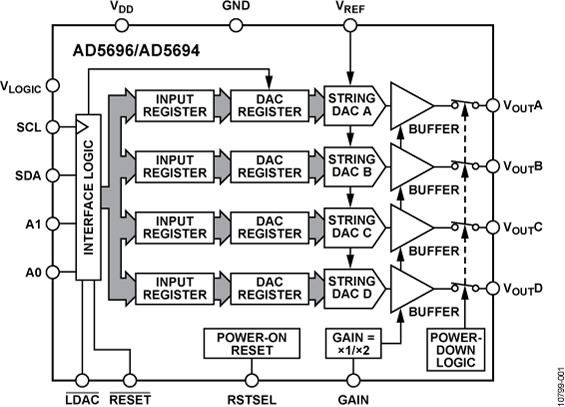

The AD5696, a member of the nanoDAC+^™ family, is a low power, quad, 16-bit buffered voltage output DAC. The device includes a gain select pin giving a full-scale output of 0V to V_REF (gain = 1) or 0V to 2V_REF (gain = 2) The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The device is available in a 3 mm × 3 mm LFCSP package and in a TSSOP package.

The AD5696 incorporates a power-on reset circuit and a RSTSEL pin; the RSTSEL pin ensures that the DAC outputs power up to zero scale or midscale and remain at that level until a valid write takes place. The part contains a per-channel power-down feature that reduces the current consumption of the device in power-down mode to 4 µA at 3 V.
