Dual, 16-Bit nanoDAC+™ with SPI Interface

Analog Devices AD5689 Product Info

10 February 2026 7

Features

  • High relative accuracy (INL): ±2 LSB maximum at 16 bits
  • TUE: ±0.1% of FSR maximum
  • Offset error: ±1.5 mV maximum
  • Gain error: ±0.1% of FSR maximum
  • High drive capability: 20 mA, 0.5 V from supply rails
  • User-selectable gain of 1 or 2 (GAIN pin)
  • Tiny package: 3 mm × 3 mm, 16-lead LFCSP
  • Reset to zero scale or midscale (RSTSEL pin)
  • 1.8 V logic compatibility
  • 50 MHz SPI with readback or daisy chain
  • Low glitch: 0.5 nV-sec
  • Low power: 3.3 mW at 3 V
  • 2.7 V to 5.5 V power supply
  • −40°C to +105°C temperature range

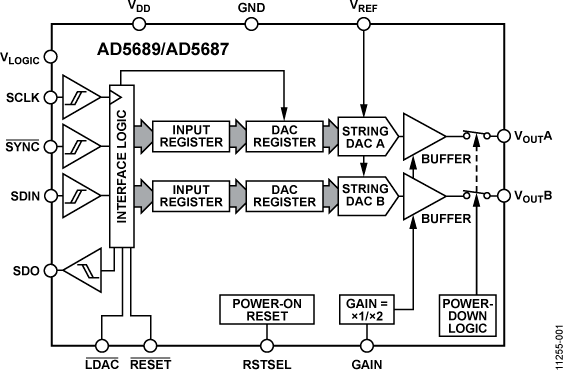

The AD5689 / AD5687 members of the nanoDAC+™ family are low power, dual, 16-/12-bit, buffered voltage output digital-to-analog converters (DACs). The devices include a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The AD5689/AD5687 operate from a single 2.7 V to 5.5 V supply, are guaranteed monotonic by design, and exhibit less than 0.1% FSR gain error and 1.5 mV offset error performance. Both devices are available in a 3 mm × 3 mm LFCSP and a TSSOP package.

The AD5689 / AD5687 also incorporate a power-on reset circuit and a RSTSEL pin that ensures that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. Each part contains a per channel power-down feature that reduces the current consumption of the device to 4 µA at 3 V while in power-down mode.

<

Part details & applications

The AD5689 / AD5687 members of the nanoDAC+™ family are low power, dual, 16-/12-bit, buffered voltage output digital-to-analog converters (DACs). The devices include a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The AD5689/AD5687 operate from a single 2.7 V to 5.5 V supply, are guaranteed monotonic by design, and exhibit less than 0.1% FSR gain error and 1.5 mV offset error performance. Both devices are available in a 3 mm × 3 mm LFCSP and a TSSOP package.

The AD5689 / AD5687 also incorporate a power-on reset circuit and a RSTSEL pin that ensures that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. Each part contains a per channel power-down feature that reduces the current consumption of the device to 4 µA at 3 V while in power-down mode.

The AD5689 / AD5687 uses a versatile serial peripheral interface that operates at clock rates up to 50 MHz. Both devices contain a VLOGIC pin that is intended for 1.8 V/3 V/5 V logic.

PRODUCT HIGHLIGHTS

  1. High Relative Accuracy (INL).
    AD5689 (16-bit): ±2 LSB maximum
  2. Excellent DC Performance.
    Total unadjusted error: ±0.1% of FSR maximum
    Offset error: ±1.5 mV maximum
    Gain error: ±0.1% of FSR maximum
  3. Two Package Options.

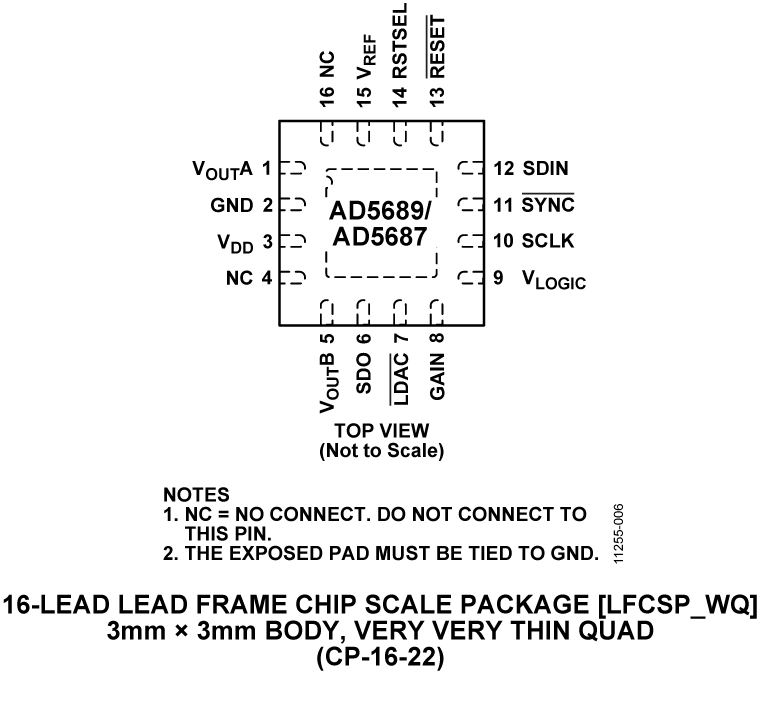

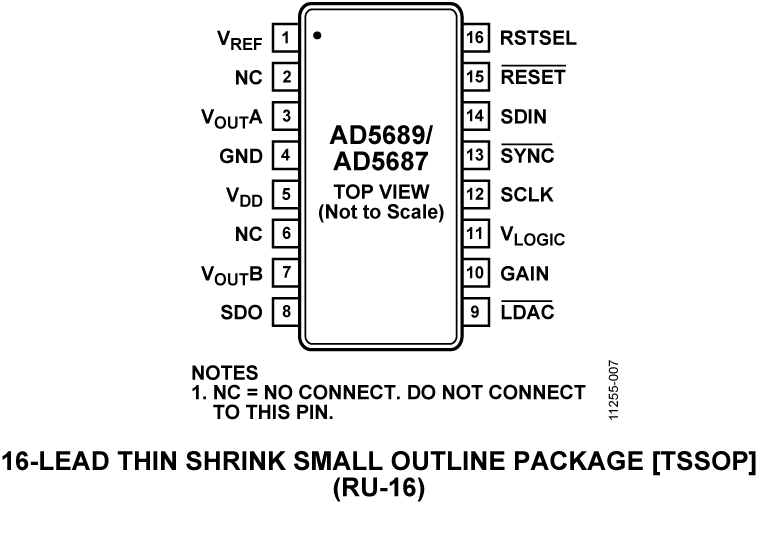

    3 mm × 3 mm, 16-lead LFCSP or 16-lead TSSOP

APPLICATIONS

  • Optical transceivers
  • Base station power amplifiers
  • Process control (PLC I/O cards)
  • Industrial automation
  • Data acquisition systems
