Analog Devices AD5684 Product Info

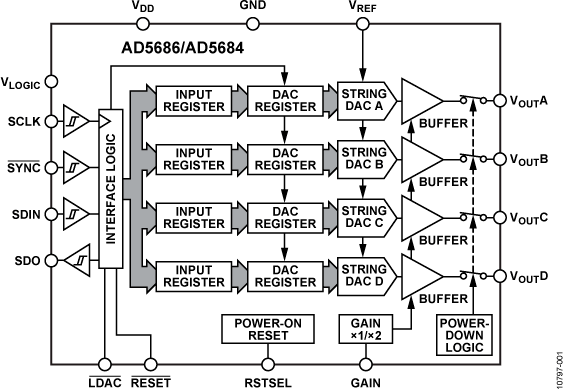

The AD5686/AD5684, a member of the nanoDAC+™ family, is a low power, quad, 16-/12-bit buffered voltage output DAC. The device includes a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). All devices operate from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The devices are available in a 3 mm × 3 mm LFCSP and a TSSOP package.

The AD5686/AD5684 also incorporate a power-on reset circuit and a RSTSEL pin that ensures that the DAC outputs power up to zero scale or midscale and remain at that level until a valid write takes place. Each part contains a per-channel power-down feature that reduces the current consumption of the device to 4 μA at 3 V while in power-down mode.

The AD5686/AD5684 employ a versatile SPI interface that operates at clock rates up to 50 MHz, and all devices contain a V_LOGIC pin intended for 1.8 V/3 V/5 V logic.

Product Highlights

1. High Relative Accuracy (INL): ±2 LSB maximum
2. Excellent DC Performance.
   Total unadjusted error: ±0.1% of FSR maximum
   Offset error: ±1.5 mV maximum
   Gain error: ±0.1% of FSR maximum
3. Two Package Options: 3 mm × 3 mm, 16-lead LFCSP and 16-lead TSSOP

Applications

• Digital gain and offset adjustment
• Programmable attenuators
• Process control (PLC I/O cards)
• Industrial automation
• Data acquisition systems
