AD5316R

PRODUCTION

Quad, 10-Bit nanoDAC with 2 ppm/°C Reference, I2C Interface

Analog Devices AD5316R Product Info

10 February 2026 7

Features

  • Low drift 2.5 V on-chip reference: 2 ppm/°C typical
  • Tiny package: 3 mm × 3 mm, 16-lead LFCSP
  • TUE: ±0.1% of FSR maximum
  • Offset error: ±1.5 mV maximum
  • Gain error: ±0.1% of FSR maximum
  • High drive capability: 20 mA, 0.5 V from supply rails
  • User-selectable gain of 1 or 2 (GAIN pin)
  • Reset to zero scale or midscale (RSTSEL pin)
  • 1.8 V logic compatibility
  • 400 kHz I2C-compatible serial interface
  • 4 I2C addresses available
  • Low glitch: 0.5 nV-sec
  • Low power: 3.3 mW at 3 V
  • 2.7 V to 5.5 V power supply
  • −40°C to +105°C temperature range

Part details & applications

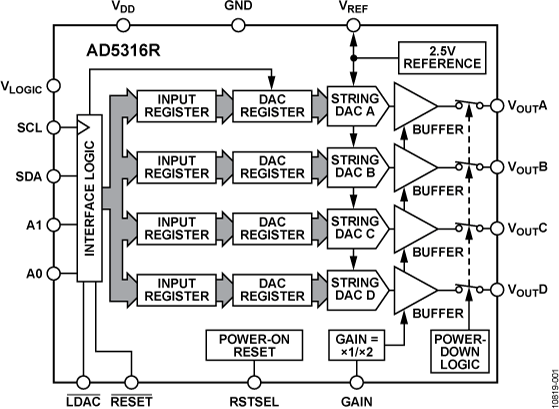

The AD5316R, a member of the nanoDAC® family, is a low power, quad, 10-bit buffered voltage output DAC. The device includes a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The device is available in a 3 mm × 3 mm lead lead frame chip scale package (LFCSP) and in a thin shrink small outline package (TSSOP).

The AD5316R also incorporates a power-on reset circuit and a RSTSEL pin. The RSTSEL pin ensures that the DAC outputs power up to zero scale or midscale and remain at that level until a valid write takes place. The device contains a per channel power-down feature that reduces the current consumption of the device in power-down mode to 4 μA at 3 V.

The AD5316R uses a versatile 2-wire serial interface that operates at clock rates up to 400 kHz and includes a VLOGIC pin intended for 1.8 V/3 V/5 V logic.

Product Highlights

  • Precision DC Performance.
    • Total unadjusted error (TUE): ±0.1% of FSR maximum
    • Offset error: ±1.5 mV maximum
    • Gain error: ±0.1% of FSR maximum
  • Low Drift 2.5 V On-Chip Reference.
    • 2 ppm/°C typical temperature coefficient
    • 5 ppm/°C maximum temperature coefficient
  • Two Package Options.

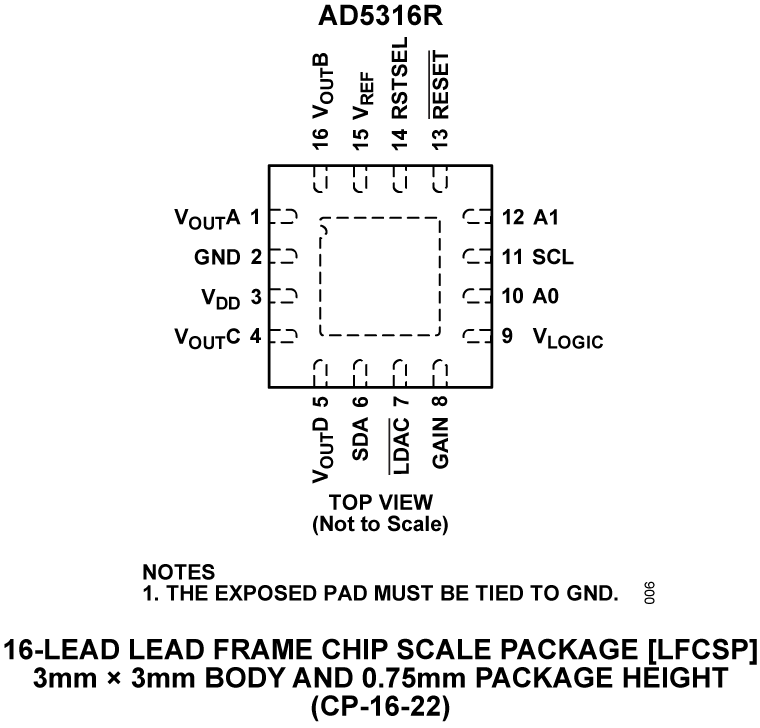

    • 3 mm × 3 mm, 16-lead LFCSP

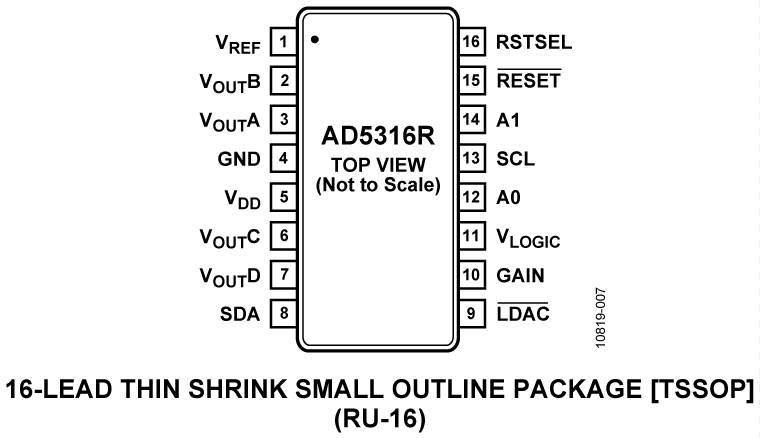

    • 16-lead TSSOP

Applications

  • Digital gain and offset adjustment
  • Programmable attenuators
  • Industrial automation
  • Data acquisition systems
