LEDs cannot be plugged directly into wall outlets. Without an LED driver, the alternating current from the mains supply would destroy these delicate devices. The driver ensures LEDs either last for years or fail quickly.

Knowing how LED drivers work changes you from a parts buyer to a lighting systems expert. This guide explains basic principles to advanced integration, helping you select, install, and optimize LED driver for any project.

An LED driver is a self-contained power supply that regulates the energy delivered to one or more LEDs. Unlike simple transformers that only change voltage levels, LED drivers perform sophisticated power conversion and current management that LEDs require for stable, long-term operation.

Think of an LED driver as a precise water system for a delicate plant. Just as the plant needs exactly the right amount of water—not too much or too little—LEDs require a controlled current. Too little current produces dim light; too much causes thermal runaway, permanently damaging the LED. The driver keeps this balance even when voltage or temperature changes.

Defining LED Drivers: Power Conversion and Current Regulation

At its core, an LED driver performs two fundamental functions:

AC to DC Power Conversion: Mains electricity alternates direction 50–60 times per second (AC). LEDs require direct current (DC) flowing in one direction. The driver rectifies and filters AC into smooth DC, typically at much lower voltages (12V, 24V, 36V, or 48V).

Constant Current Regulation: LEDs are current-driven devices—their brightness depends on current, not voltage. However, LED forward voltage drops change with temperature. As LEDs warm up, their forward voltage decreases, which can cause current (and heat) to increase uncontrollably. The driver monitors and adjusts output thousands of times per second, maintaining constant current even as LED parameters shift.

Without this regulation, LEDs experience "thermal runaway": getting hotter draws more current, which creates more heat, leading to catastrophic failure within hours or days.

The Critical Functions: Protection and Performance

Beyond basic power delivery, quality LED driver provide essential protection:

Protection Function	What It Prevents	Why It Matters
Overvoltage Protection	Input surges from grid fluctuations	Prevents driver damage from lightning or utility switching
Short Circuit Protection	Accidental wiring faults	Automatic shutdown prevents fire hazards
Over-Temperature Protection	Thermal stress from poor ventilation	Extends lifespan by reducing current when overheating
Open Circuit Protection	Disconnected LED loads	Prevents voltage spikes that damage driver output stages

Understanding driver classifications prevents costly mismatches between power supplies and LED loads.

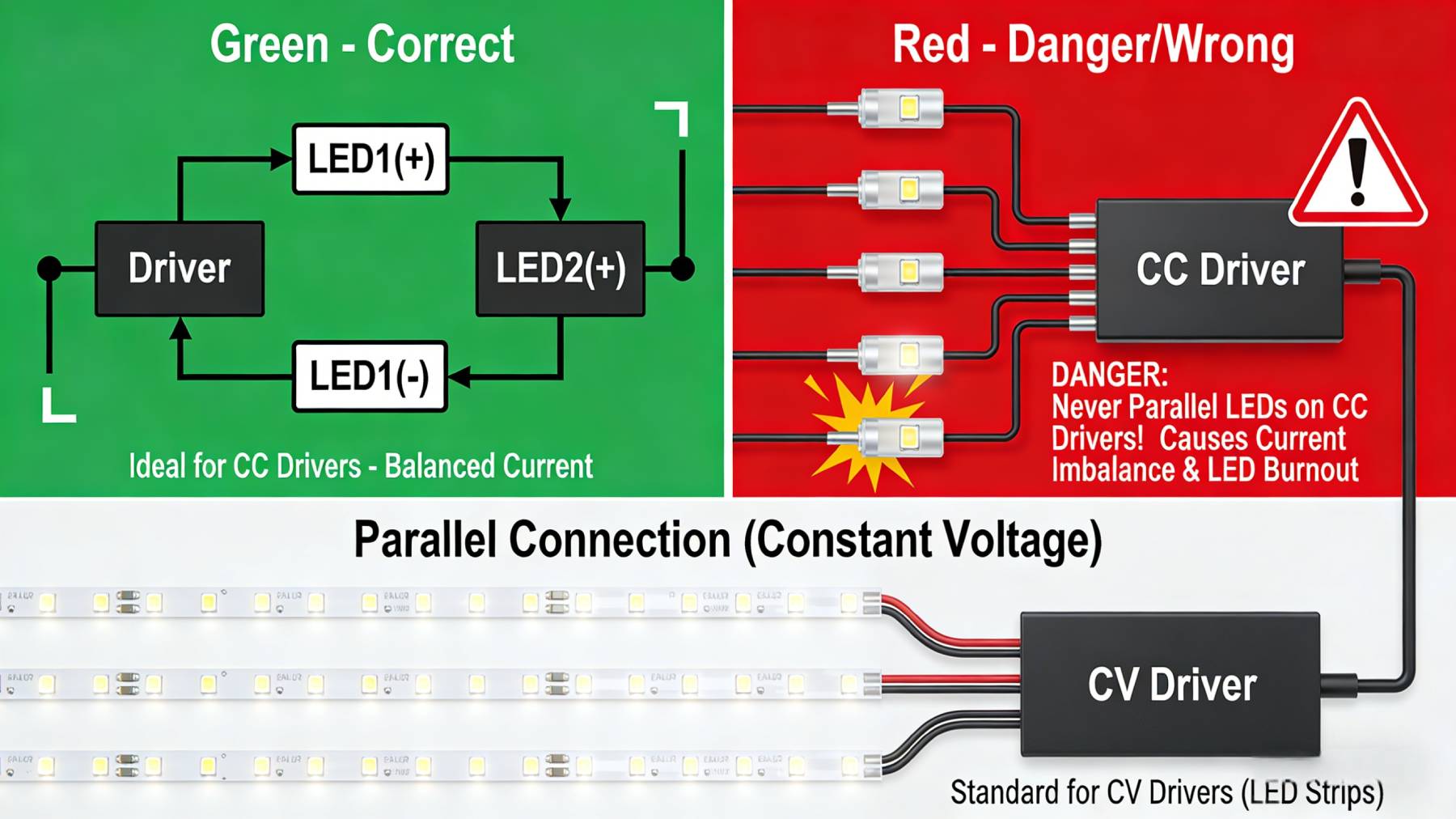

Constant Current (CC) vs. Constant Voltage (CV)

This is the most critical decision in driver selection. Choosing the wrong guarantees system results in failure.

Constant Current (CC) LED Drivers:

Operating principle: Maintain fixed output current (e.g., 350mA, 700mA, 1050mA) while varying voltage to match LED requirements

Best for: Individual high-power LEDs, LED modules with integrated series arrays, applications requiring precise current control

Key characteristic: Output voltage "floats" to match the LED's forward voltage drop

Example: A 700mA CC driver automatically adjusts from 24V to 36V output as it warms up, maintaining exactly 700mA current

Constant Voltage (CV) LED Drivers:

Operating principle: Delivers a constant output voltage (such as 12V DC or 24V DC) regardless of current draw, within rated capacity.

Best for: LED strips, MR16 retrofit lamps, any application with built-in current-limiting resistors

Key characteristic: Output current varies with the load; ensure the driver's capacity matches the maximum expected current draw.

Example: A 24V CV driver supplies 24V whether powering 1 meter of strip (2A) or 5 meters (10A)—provided the driver is rated for 10A+

Use CC drivers for LEDs without built-in current management, and CV drivers for those with built-in current management. Never use a CC driver with a CV LED strip; lack of current limiting can ruin LEDs instantly.

AC vs. DC LED Drivers: Input Power Considerations

AC LED Driver (Mains-Input):

Accept 120V AC (North America) or 230V AC (Europe/Asia) directly.
Self-contained units with internal rectification and power factor correction
Advantages: Simple installation, no separate power supply needed, integrated safety certifications
Disadvantages: Larger size, higher cost per watt, and limited compatibility with standard wall dimmers; some drivers may not support certain dimming methods, so always check compatibility.

DC LED Driver (Low-Voltage Input):

Require 12V or 24V DC input from a separate power supply.
Common in automotive, marine, solar, and battery backup systems
Advantages: Smaller size, lower cost, safer low-voltage wiring, easier integration with battery systems
Disadvantages: Requires upstream power supply, additional wiring complexity, potential efficiency losses from double conversion

Selection guidance: Use AC driver for direct mains connection in residential/commercial retrofits. Use DC driver for off-grid, automotive, or centralized power supply architectures.

Internal vs. External LED Driver: Design and Heat Management

Internal (Integrated) LED Driver:

Built into the LED fixture housing (common in LED downlights, panels, and retrofit lamps)
Advantages: Compact all-in-one design, no external wiring, plug-and-play installation
Disadvantages: Heat from the driver reduces LED lifespan, difficult replacement (entire fixture must be changed), limited power capacity due to size constraints

External (Remote) LED Driver:

Separate units mounted remotely from the LED fixture
Advantages: Superior heat management (driver and LEDs thermally isolated), easy replacement without accessing fixtures, higher power capacity, flexible placement for maintenance access
Disadvantages: Additional wiring runs, aesthetic considerations for driver location, installation complexity
Critical insight: For commercial applications with 12+ hours of daily operation, external drivers typically deliver a 30–50% longer system lifespan by isolating heat sources. The upfront cost premium pays for itself through reduced maintenance costs.

LED Driver Dimming: Methods, Compatibility, and Smart Control

Dimming is a key difference between basic and premium LED drivers. Knowing dimming protocols helps avoid flickering, poor dimming, or incompatibility.

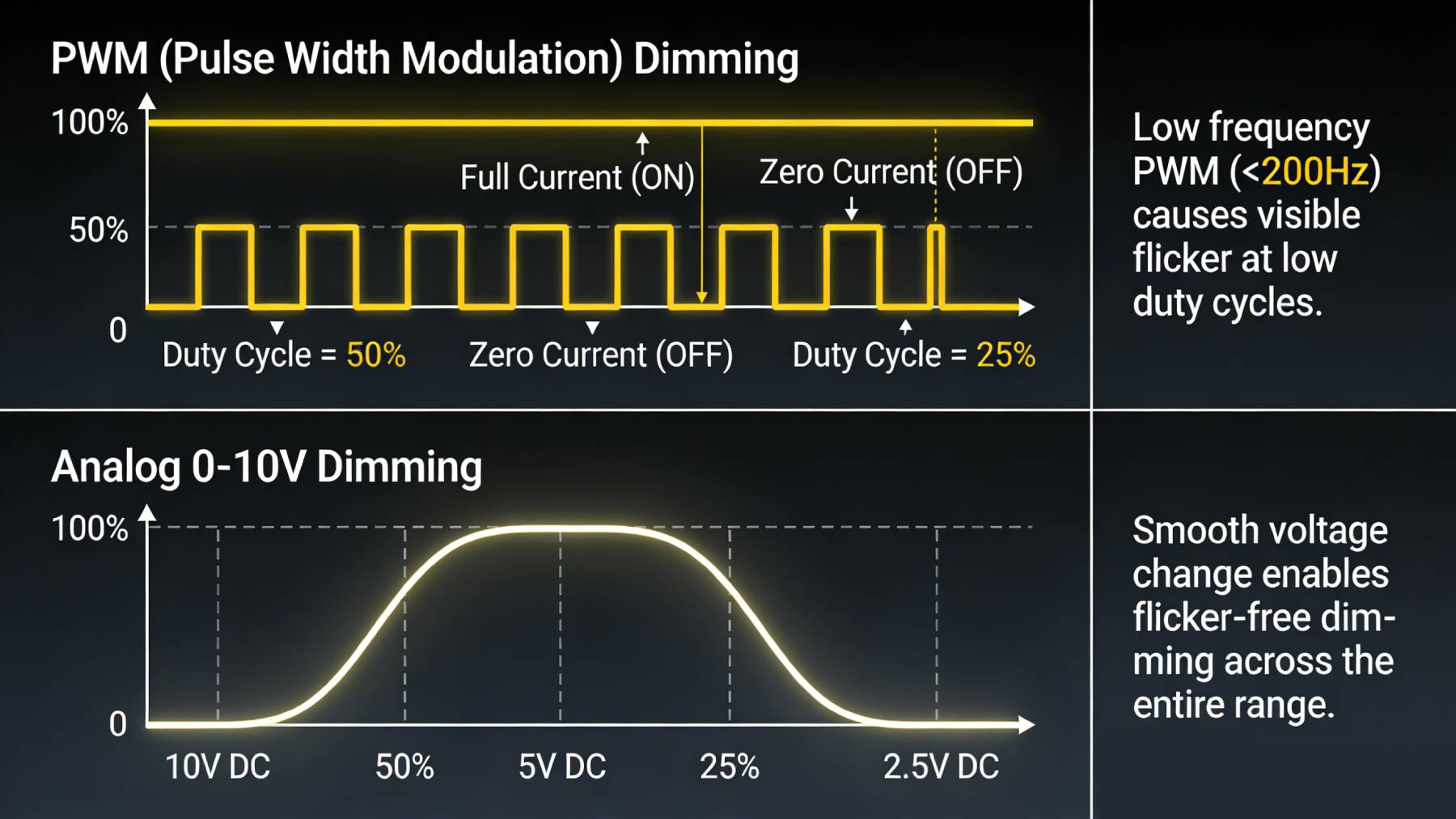

Popular Dimming Methods Explained

0-10V Analog Dimming:

Industry standard for commercial lighting control
Separate low-voltage control wires carry 0–10V DC signal; 10V = full brightness, 0V = off (or minimum)
Pros: Simple, reliable, compatible with occupancy sensors and daylight harvesting systems
Cons: Requires additional control wiring, voltage drop over long distances limits control accuracy, minimum brightness typically 1–5% (not true off)

DALI (Digital Addressable Lighting Interface):

Two-way digital communication protocol (IEC 62386 standard)
Each driver has a unique address, enabling individual control, grouping, and scene programming.
Pros: Precise control (1% increments), feedback on status and energy use, no voltage drop issues, scalable to thousands of fixtures

Cons: Higher equipment cost, requires certified installers for programming, proprietary controller ecosystems

ELV (Electronic Low Voltage) / MLV (Magnetic Low Voltage):

Legacy dimming using phase-cut technology (chopping the AC waveform)
ELV: Trailing-edge dimming, compatible with most electronic transformers
MLV: Leading-edge dimming, for magnetic transformers (largely obsolete)
Pros: Uses existing wall dimmers, no additional control wiring
Cons: Compatibility issues are common—many LED drivers may generate buzzing, flickering, or limited dimming ranges when used with incompatible wall dimmers. Minimum load requirements may also not be met by low-wattage LEDs.

PWM (Pulse Width Modulation):

Duty cycle determines brightness: 50% on-time = 50% perceived brightness.
Pros: No color shift (LEDs operate at full current when on), efficient, compatible with digital controllers
Cons: Potential flicker perception at low frequencies, requires driver and controller PWM synchronization

Ensuring Dimmer Compatibility and Avoiding Flicker

Flicker is the #1 complaint in dimmed LED installations. Prevention requires matching driver dimming type to controller capability:

The compatibility checklist:

1. Verify dimming method: Driver label specifies "0-10V," "DALI," "TRIAC/ELV," or "PWM."
2. Check minimum load: ELV dimmers often require a minimum load of 40W; a 9W LED may not trigger the dimmer circuit.
3. Test dimming range: Quality drivers achieve 1–100%; budget drivers may only reach 10–90%
4. Listen for buzz: Incompatible combinations create audible noise from driver inductors.

Flicker-free formula: For residential retrofits, use "TRIAC-dimmable" LED drivers specifically designed for phase-cut dimmers. For new commercial construction, specify 0-10V or DALI from the outset—avoid ELV entirely.

Integrating with Smart Home & Building Management Systems

Modern LED driver increasingly feature embedded intelligence:

Wireless Protocols:

Zigbee 3.0: Mesh networking, 65,000+ nodes, proven reliability (Philips Hue, IKEA TRÅDFRI)
Z-Wave: Sub-GHz frequency avoids WiFi congestion, strong in residential security/lighting integration
Bluetooth Mesh: Direct smartphone control, no hub required for small systems, emerging standard in commercial fixtures
WiFi: Simple integration, but congestion and security concerns limit commercial scalability

BMS Integration: DALI remains the gold standard for Building Management Systems, but BACnet and Modbus protocols enable LED driver to communicate with HVAC, security, and energy management systems. Advanced driver report energy consumption, temperature status, and maintenance alerts to central dashboards.


Multi-zone complexity: A modern office may have 500+ fixtures across 20 zones with daylight harvesting, occupancy sensing, and circadian rhythm programming. Driver selection must consider not just individual performance but also the system-wide communication architecture.

Core Specifications: Voltage, Current, and Wattage

Step 1: Determine LED Requirements. Check the LED datasheet for:
Forward voltage (Vf) at rated current
Rated current (If) in mA or A

Maximum power dissipation

Step 2: Calculate Driver Output

For CC drivers:  Select current rating matching LED rated current. Ensure output voltage range encompasses LED Vf at all operating temperatures (typically Vf increases 10–15% at low temperatures).

Example:  LED rated 700mA, Vf = 33V nominal (30V min, 36V max) → Select 700mA CC driver with output range 25–40V

For CV drivers:  Calculate the total wattage of the LED load, then divide by the voltage to determine the current.

Example:  5 meters of 24V LED strip @ 14.4W/meter = 72W total → Select 24V CV driver rated minimum 72W (add 20% buffer = 90W minimum)

Step 3: Verify Input Voltage Match driver input to local mains: 120V AC (North America), 230V AC (Europe), or 277V AC (commercial North America). Universal input drivers (90–305V AC) work globally but cost 15–20% more.

Advanced Specs: Efficiency, Power Factor, and IP Rating

Efficiency: Ratio of output power to input power, expressed as a percentage. Higher efficiency = less heat = longer lifespan.

Efficiency Tier	Rating	Application
Standard	80–85%	Residential, cost-sensitive
High	86–91%	Commercial, general use
Premium	92%+	Industrial, 24/7 operation, energy rebates

Power Factor (PF): Measures how effectively input power converts to useful work. Low PF causes grid instability and utility penalties.

Residential: PF > 0.7 is typically acceptable
Commercial: PF > 0.9 is often required for utility rebates

Industrial: PF > 0.95 may be mandatory

IP Rating (Ingress Protection): Critical for outdoor or harsh environments.

Rating	Protection	Typical Use
IP20	Finger-safe, no dust/water protection	Indoor dry locations
IP65	Dust-tight, water jets	Outdoor canopies, kitchens
IP67	Dust-tight, temporary immersion	Landscape lighting, pools
IP68	Dust-tight, continuous submersion	Underwater fountains, marine

Safety Certifications: UL, CE, ENEC, TUV

Certifications verify independent testing for safety and performance:

UL (Underwriters Laboratories): North American safety standard; UL Listed means product meets strict fire and shock hazard requirements
CE (Conformité Européenne): Self-declared European compliance with Low Voltage Directive and EMC standards
ENEC (European Norms Electrical Certification): Higher-tier European certification with factory surveillance

TÜV (Technischer Überwachungsverein): German testing organization; TÜV mark indicates rigorous quality assurance

Verification tip: Check certification numbers on manufacturer websites—counterfeit marks are common in budget drivers.

Cost-Benefit Analysis: Long-Term Value

Driver Category	Upfront Cost	Efficiency	Lifespan @ 50°C	10-Year TCO*
Budget	$	82%	30,000 hrs	$$$
Mid-Range	$$	88%	50,000 hrs	$$
Premium	$$$	93%	75,000 hrs	$

*TCO includes energy cost, replacement labor, and downtime

ROI insight: In commercial applications with 12-hour daily operation, a premium driver pays for itself in 3–4 years through energy savings alone. Factor in reduced maintenance (no lift rentals for high-bay replacements), and premium drivers deliver 40–60% lower total cost of ownership.

Residential and Commercial Solutions

Residential Priorities:

Dimming compatibility: TRIAC-dimmable drivers for existing wall dimmers
Compact size: Fits in junction boxes and ceiling cavities
Low noise: Silent operation in bedrooms and living spaces

Easy installation: Push-wire terminals, clear labeling

Commercial Priorities:

High efficiency: 90%+ for energy code compliance and rebates
Power factor correction: >0.9 for utility incentives
Long lifespan: 50,000+ hours at actual operating temperatures (not just 25°C lab ratings)
Advanced control: 0-10V or DALI for building automation
Flicker metrics: <5% flicker index for occupant health (IEEE 1789 compliance)

Rugged Driver for Outdoor and Industrial Environments

Harsh environments demand specialized engineering:

Critical specifications:

Wide operating temperature: -40°C to +70°C (standard drivers fail below -20°C or above +50°C)
Surge protection: 4kV–6kV transient protection for grid instability and lightning
Vibration resistance: Essential for high-bay industrial and automotive applications
Conformal coating: Protects PCBs from moisture, salt, and chemical corrosion

Application examples:

Street lighting: 10-year lifespan in ambient temperatures up to 50°C, 6kV surge protection
High-bay industrial: Vibration resistance for crane-equipped warehouses, 1–10V dimming for daylight harvesting
Food processing: IP69K rating for high-pressure washdown environments

Specialized Applications: Grow Lights, Automotive, and High-Bay

Horticultural LED Driver (Grow Lights):

High wattage: 600W–1000W+ for high-intensity cultivation
Spectrum control: Some drivers integrate channel control for red/blue/white mixing
Waterproofing: IP65 minimum for high-humidity greenhouses
Silent operation: Fanless designs prevent air circulation disruption

Automotive LED Driver:

Wide input voltage: 9V–36V DC to handle alternator fluctuations and jump-starts
Load dump protection: Survives 100V+ spikes from alternator disconnection
EMC compliance: Prevents interference with radio and navigation systems
Vibration resistance: 5G+ rating for off-road and commercial vehicles

High-Bay Industrial:

Thermal management: Remote mounting separates driver heat from LED junction temperatures
Precise current control: ±3% current tolerance ensures consistent lumen maintenance across large arrays
Programmable output: Some drivers allow field-adjustment of current to fine-tune light levels

Diagnosing Common Problems

Flickering LEDs:

Incompatible dimmer: Switch to the manufacturer-recommended dimmer model
Insufficient load: Add a dummy load resistor or switch to the driver with a lower minimum load
PWM frequency mismatch: Ensure the controller and driver use the same PWM frequency

Inconsistent Brightness:

Voltage drop (CV systems): Use heavier gauge wire or shorten cable runs
Current imbalance (CC systems): Check for loose connections in series strings
Thermal throttling: Improve ventilation or relocate the driver to a cooler environment

Premature Failure:

Overheating: Verify driver is derated for actual ambient temperature (a 50W driver in 50°C ambient may only safely deliver 35W)
Power surges: Install an upstream surge protection device (SPD)
Moisture ingress: Replace with a properly IP-rated driver, check gasket integrity

Preventing Failure and Extending Lifespan

The three killers of LED drivers:

1. Heat: Every 10°C reduction in temperature doubles lifespan. Ensure 2-inch clearance around the driver, and avoid enclosed unventilated cavities.
2. Power quality: Install surge protectors at the panel and at the point of use. Voltage spikes destroy driver semiconductors instantly.
3. Moisture: Even "indoor" drivers fail in humid bathrooms or kitchens. Specify IP65 for any moisture risk.

Maintenance protocol:

Annual visual inspection for dust buildup, corrosion, or physical damage
Thermal imaging to identify hot spots indicating connection degradation
Record operating hours to predict end-of-life replacement before failure

Safe Installation: Wiring and Electrical Safety

Critical safety rules:

Disconnect power: Lockout/tagout procedures for commercial installations
Polarity matters: Reverse polarity on the input destroys most drivers instantly
Grounding: Always connect the earth ground; floating grounds create shock hazards and EMI issues
Wire gauge: Size for 125% of the rated current to prevent voltage drop and overheating

Wiring configurations:

Constant Current (Series):

Driver(+) → LED1(+) → LED1(-) → LED2(+) → LED2(-) → Driver(-)

Critical: Never parallel LEDs on the CC driver—current divides unevenly, destroying the lowest Vf LED first.

Constant Voltage (Parallel):

Driver(+) → Strip1(+) & Strip2(+) & Strip3(+)
Driver(-) → Strip1(-) & Strip2(-) & Strip3(-)

Critical: Each parallel branch must have its own current limiting (integrated resistors or external resistors).

Leading Manufacturers

Mean Well (Taiwan): Industry leader in industrial and outdoor driver. Known for reliability, 5-year warranties, and an extensive model range. The LPF, HLG, and XLG series dominate commercial projects.

Signify (Philips Advance, USA): Pioneer in intelligent lighting controls. Xitanium drivers excel in DALI and wireless integration, particularly for smart city and office applications.

Tridonic (Austria): European leader in DALI and IoT-enabled driver. Emphasis on circular economy—design for disassembly and component reuse.

Osram (Germany): Strong in automotive and specialty applications. Optotronic drivers balance performance with compact form factors.

Inventronics (China): Rapidly gaining market share with competitive pricing and UL/ENEC certifications. Popular for high-bay and street lighting projects.

Future Trends: Smart, Compact, and Efficient

Wireless Integration: Driver with embedded Bluetooth, Zigbee, or Thread support eliminate the need for separate control modules. 2026 releases from major manufacturers feature over-the-air firmware updates and predictive maintenance algorithms.

GaN (Gallium Nitride) Technology: Next-generation semiconductors enable 30% smaller drivers at higher efficiency (95%+). GaN drivers run cooler, enabling longer lifespans or higher power density.

Digital Power: Software-defined drivers allow field-adjustment of output current, voltage, and dimming curves via smartphone apps. One SKU serves multiple applications, reducing inventory complexity.

Circadian Lighting: Driver that automatically adjust color temperature and intensity throughout the day to match human circadian rhythms—critical for healthcare, education, and office wellness applications.

Sustainability: Longevity and Environmental Impact

LED driver significantly impact lighting's environmental footprint:

Design for Longevity: Extending driver lifespan from 30,000 to 75,000 hours prevents two replacements per LED fixture life cycle. Modular designs with replaceable capacitors (the typical failure point) further extend service life.

Recyclability: Aluminum housings (95% recyclable) and reduced potting compounds enable easier material recovery. Tridonic and Signify now offer take-back programs for commercial driver recycling.

Carbon Impact: A 93% efficient driver in a 100W commercial fixture saves 35 kWh annually versus an 85% efficient model. At grid average carbon intensity, that's 25 kg CO₂ prevented per fixture per year—multiplied across thousands of fixtures in large installations.

LED drivers are the critical interface between raw electrical power and the precise requirements of LED technology. Understanding the distinctions between constant current and constant voltage, selecting appropriate dimming protocols, and sizing for real-world operating conditions transforms potential failures into decades of reliable illumination.

The confidence gained through this guide empowers you to evaluate specifications critically, avoid compatibility pitfalls, and optimize for both performance and total cost of ownership. Whether you're illuminating a single room or specifying drivers for a smart building ecosystem, the principles remain constant: match the driver to the LED, respect thermal limits, and invest in quality for applications where reliability matters.

Ready to specify LED driver for your next project? Explore Welllinkchips's curated selection of industrial-grade LED driver—from compact residential dimmable units to rugged outdoor and smart-building solutions. Our technical team provides application engineering support to ensure your selections deliver the performance, efficiency, and longevity your LED lighting systems demand.

---

Need help navigating complex specifications or bulk pricing for commercial projects? Contact Welllinkchips's LED driver specialists for personalized recommendations, sample evaluations, and competitive quotations for production volumes.
