LR44 batteries are 1.5V alkaline button cells measuring 11.6mm × 5.4mm. They are 100% interchangeable with AG13, A76, and L1154. For precision devices (digital calipers, medical equipment), upgrade to 357/SR44 silver oxide for stable voltage and 2× lifespan. LR44 holds 120-150 mAh; LR44 voltage drops; LR44 is good for toys, flashlights, and remotes; LR44 costs $0.50-1.00.

Key specs at a glance:

Feature	LR44 (Alkaline)	357/SR44 (Silver Oxide)
Voltage	1.5V	1.55V
Capacity	120-150 mAh	165-200 mAh
Discharge	Sloping (1.5V → 1.0V)	Flat (1.55V → 1.2V)
Best for	Toys, flashlights, remotes	Calipers, watches, medical
Cost	0.50-1.00	1.50-3.00

Now that you have an overview of LR44 specs, let's clarify why the same cell has different names.
The LR44 is a very common button battery, but it is sold under many different names. This confusion comes from different naming systems used by various groups:

IEC Standard (International): LR44 designates an alkaline (L) round (R) cell with a 11.6mm diameter and 5.4mm height (44).

ANSI Standard (US): 76A for alkaline and 1166A for silver oxide types.

Manufacturer Codes: Each brand uses its own names to stand out in the market:

Duracell: 76A (alkaline), D357 (silver oxide)

Energizer: A76 (alkaline), 357 (silver oxide)

Maxell: LR44 (alkaline), SR44 (silver oxide)

Panasonic: LR44 (alkaline), SR44W (silver oxide)

Bottom line: If the battery measures 11.6mm by 5.4mm and is labeled LR44, AG13, A76, L1154, 157, or 303/357 (for silver oxide), it will physically fit your device. Choosing the right type (alkaline or silver oxide) is more important than the code number.

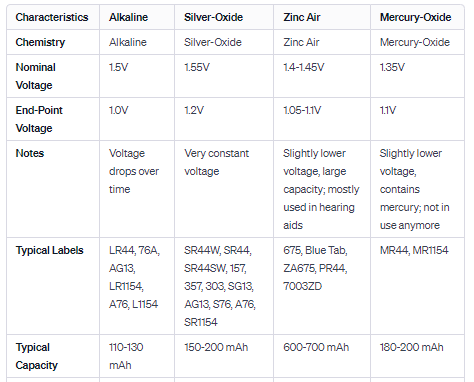

To make cross-shopping easier, use the following table for common alkaline equivalents:

Model	Standard	Brand	Notes
LR44	IEC	Universal	The base standard
AG13	IEC	Generic	Most common alternative name
A76	ANSI	Energizer, Duracell	US market standard
L1154	IEC	Varta, Rayovac	European designation
157	ANSI	Energizer	Older designation
G13A	JIS	Maxell, Sony	Japanese standard
V13GA	IEC	Varta	High-drain variant
GP76A	Proprietary	GP Batteries	Asian market

Silver Oxide Chemistry (1.55V, Flat Discharge)

Model	Standard	Brand	Notes
SR44	IEC	Universal	Silver oxide equivalent
357	ANSI	Energizer, Duracell	Most common US name
V357	IEC	Varta	High-drain silver oxide
SR44W	IEC	Panasonic, Sony	High-drain variant
SR44SW	IEC	Seiko, Citizen	Low-drain watch variant
303	ANSI	Energizer	Older silver oxide code
SG13	JIS	Maxell	Japanese silver oxide

Critical Compatibility Note

Silver oxide (357/SR44) batteries are 1.55V instead of 1.5V. This small difference does not matter for most devices. However, very sensitive equipment (such as some medical devices or watches) may require silver oxide only. Always check your device manual for battery type recommendations.

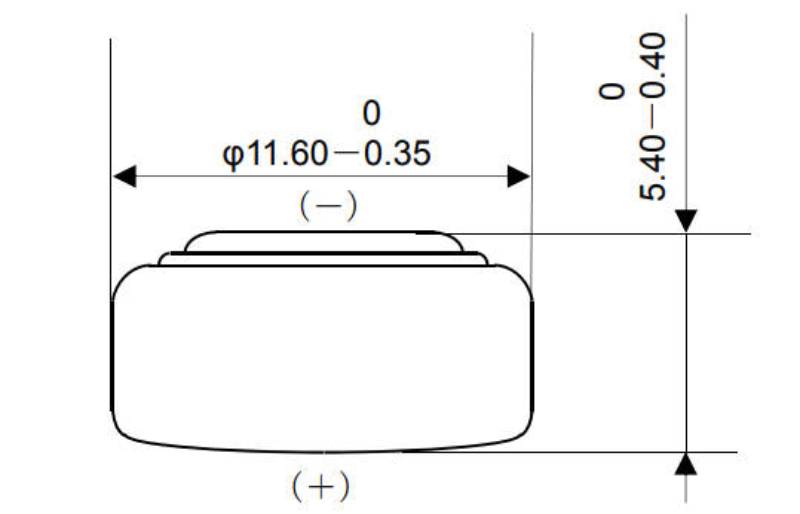

Physical Dimensions & Tolerance Issues

Size: 11.6mm across by 5.4mm tall

Tolerance: Battery size may vary +/-0.2mm for width and +/-0.3mm for height
Why cheap batteries fail: Budget manufacturers often cut corners on metal stamping, producing cells with 11.4mm or 5.2mm cells. These undersized cells cause:

Intermittent contact in spring-loaded holders

Rattling and vibration-induced power loss

Corrosion acceleration due to poor seal fit

Benefits of silver oxide: The 357/SR44 battery holds steady at about 1.55V for 90% of use. This means devices work well until the battery runs out suddenly at the end.

Capacity & Energy Density Analysis

Usual capacity (silver oxide 357): 165-200 mAh under the same conditions

Why the 50% capacity gap may not affect you much:

Alkaline batteries give higher power first (better for things like motors and tiny lights)
Silver oxide delivers a stable voltage (better for electronics, sensors)

In real use, battery capacity changes based on how fast it is drained and when your device shuts off.

High-power use (toy motor drawing 10mA):

LR44: About 80 mAh can be used, since the voltage drops too low sooner.

357: ~120 mAh effective (maintains voltage under load)

Low-drain scenario (quartz watch, 1µA draw):

LR44: ~140 mAh effective

357: About 190 mAh can be used (lasts twice as long)

Shelf Life & Self-Discharge

Silver oxide 357: Lasts 4-7 years; loses 3-5% charge per year

Date code decoding: Most manufacturers use M/YY or YYMM formats. A battery marked "9/25" or "2509" expires September 2025. Avoid batteries with less than 2 years remaining shelf life for critical applications.

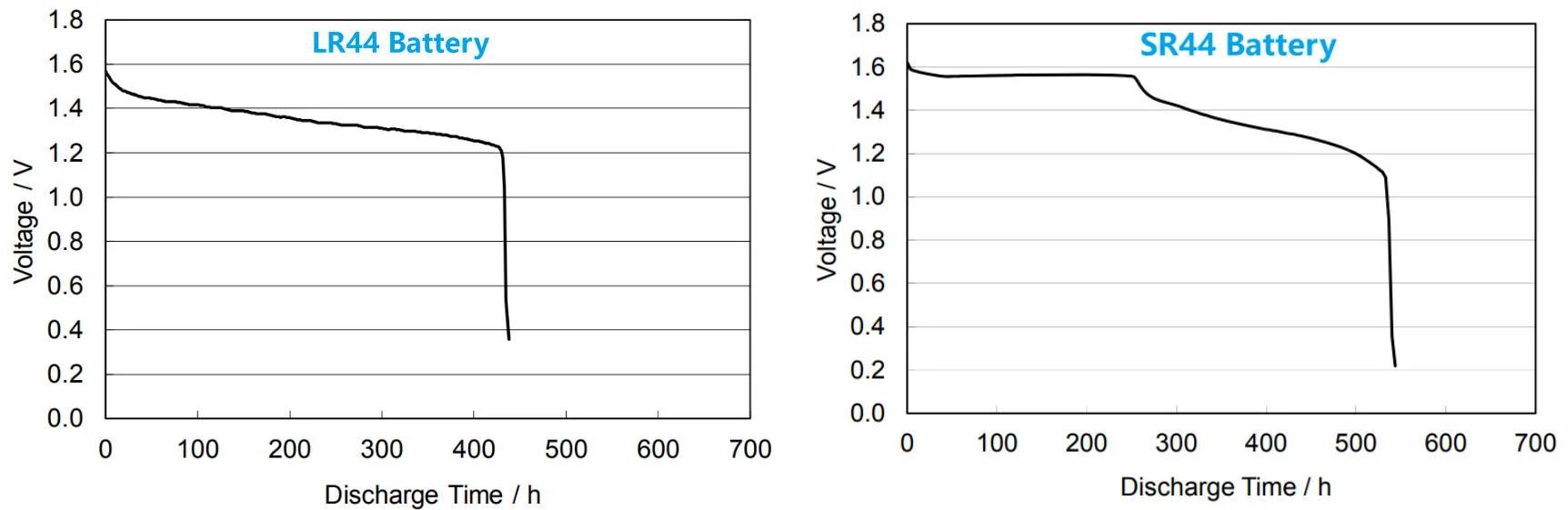

Discharge Curve Analysis

The main difference between alkaline and silver oxide batteries is in voltage stability:

LR44 (Alkaline) Discharge:

80-100% used: 1.25V falls quickly to 0.9V

0-90% used: Voltage stays close to 1.55V

90-100% used: 1.55V → 1.2V (sudden cliff)

Real-world implications:

Application	LR44 Performance	357/SR44 Performance	Recommendation
Digital calipers	Display flickers, inaccurate readings below 1.3V	Stable measurements until end-of-life	357 mandatory
Quartz watches	Time gains/loses as voltage drops	Consistent accuracy for 2-3 years	357 preferred
LED flashlights	Dimming noticeable after 10 hours	Brightness stable, then sudden death	LR44 acceptable
Toys/motors	Strong initial power, gradual weakening	Consistent but slightly less "punch"	LR44 preferred
Medical devices	Risk of inaccurate readings	FDA-recommended for critical devices	357 mandatory

Cost-Benefit Analysis: When to Upgrade

Price comparison (per battery, retail):

Generic LR44/AG13: 0.50-0.80
Brand-name LR44 (Duracell, Energizer): 1.00-1.50
Silver oxide 357/SR44: 1.50-3.00

Break-even analysis:

Scenario 1: Digital calipers used weekly
LR44 replacement every 6 months ($1.50/year)
357 replacement every 18 months ($2.00/year)
Winner: 357 (saves $0.50/year + eliminates accuracy frustration)

Scenario 2: LED keychain used daily
LR44 replacement every 3 months ($2.00/year)
357 replacement every 6 months ($4.00/year)
Winner: LR44 (lower cost, brightness matters more than stability)

Scenario 3: Boya BY-M1 microphone (intermittent use)
LR44: 20-30 hours runtime, voltage sag causes audio distortion
357: 40-50 hours runtime, stable voltage prevents "fading" audio
Winner: 357 (professional reliability worth a premium)

Boya BY-M1 & Lavalier Microphones

The Boya BY-M1 (and similar lapel mics) is notoriously sensitive to LR44 voltage sag. Users report:

Audio distortion when the battery drops below 1.4V

Intermittent cutting out during recording

Increased noise floor (hiss) as voltage declines

Key recommendation: Always use 357 silver oxide batteries in the BY-M1 for reliable audio. Replace the battery at half its expected use (about 15-20 hours) and carry a spare for critical recordings.
Pro tip: The BY-M1's battery compartment is tight—verify 357 dimensions (5.4mm height) match before purchasing. Some high-capacity 357 variants are 5.6mm and won't fit.

Digital Calipers & Precision Tools

Digital calipers (Mitutoyo, Starrett, iGaging, etc.) are the #1 application where LR44 vs. 357 matters.

Symptoms of alkaline LR44 in calipers:

Display flickers or dims during measurement.

Inconsistent readings (0.02mm variance) as the voltage drops

Auto-shutdown during use

"Low battery" warning despite fresh installation

Why this happens: Calipers use analog-to-digital converters (ADCs) that reference supply voltage. As the LR44 voltage slopes downward, the reference drifts, causing measurement inaccuracy.

The 357 solution: Silver oxide's flat discharge curve maintains a stable reference voltage, ensuring ±0.01mm accuracy throughout battery life.

Cost of inaccuracy: A 0.50 LR44 causing a 200-machining-error is a false economy. Always use 357/SR44 in precision measurement tools.

Medical Devices: Thermometers & Glucose Meters

FDA advice: Medical devices that need very accurate readings should use silver oxide batteries.

Common devices:

Digital thermometers: LR44 acceptable for home use; 357 recommended for clinical accuracy
Blood glucose meters: 357 mandatory—voltage fluctuation affects enzyme reaction timing
Pulse oximeters: LR44 typically sufficient; verify manufacturer specifications.

When using batteries in medical equipment, remember: Safety critical: Never mix old and new batteries in medical devices. Voltage mismatch can cause erratic readings.

The Multimeter Test: Verifying Battery Health.

For further troubleshooting, you can test batteries before installation:

Method 1: No-Load Voltage Test.

Set the multimeter to DC Voltage (20V range)

Touch probes to battery terminals

Reading: 1.55V+ = fresh; 1.3-1.5V = usable; <1.3V = replace

Limitation: Alkaline batteries can show 1.5V at no load but sag to 1.2V under device load.

Method 2: Load Test (More Accurate)

Set the multimeter to DC Current (200mA range)

Briefly touch probes to the battery (creates a short-circuit load)

Reading: 50mA or more = good; 20-50mA = weak; below 20mA = dead

Warning: This test uses up a small amount of battery power. Do not use too often.

Method 3: Professional Battery Tester

Dedicated button cell testers apply calibrated load (typically 1kΩ resistor)

Displays "Good," "Weak," or "Replace"

Cost: 10-20; essential for professionals using many batteries

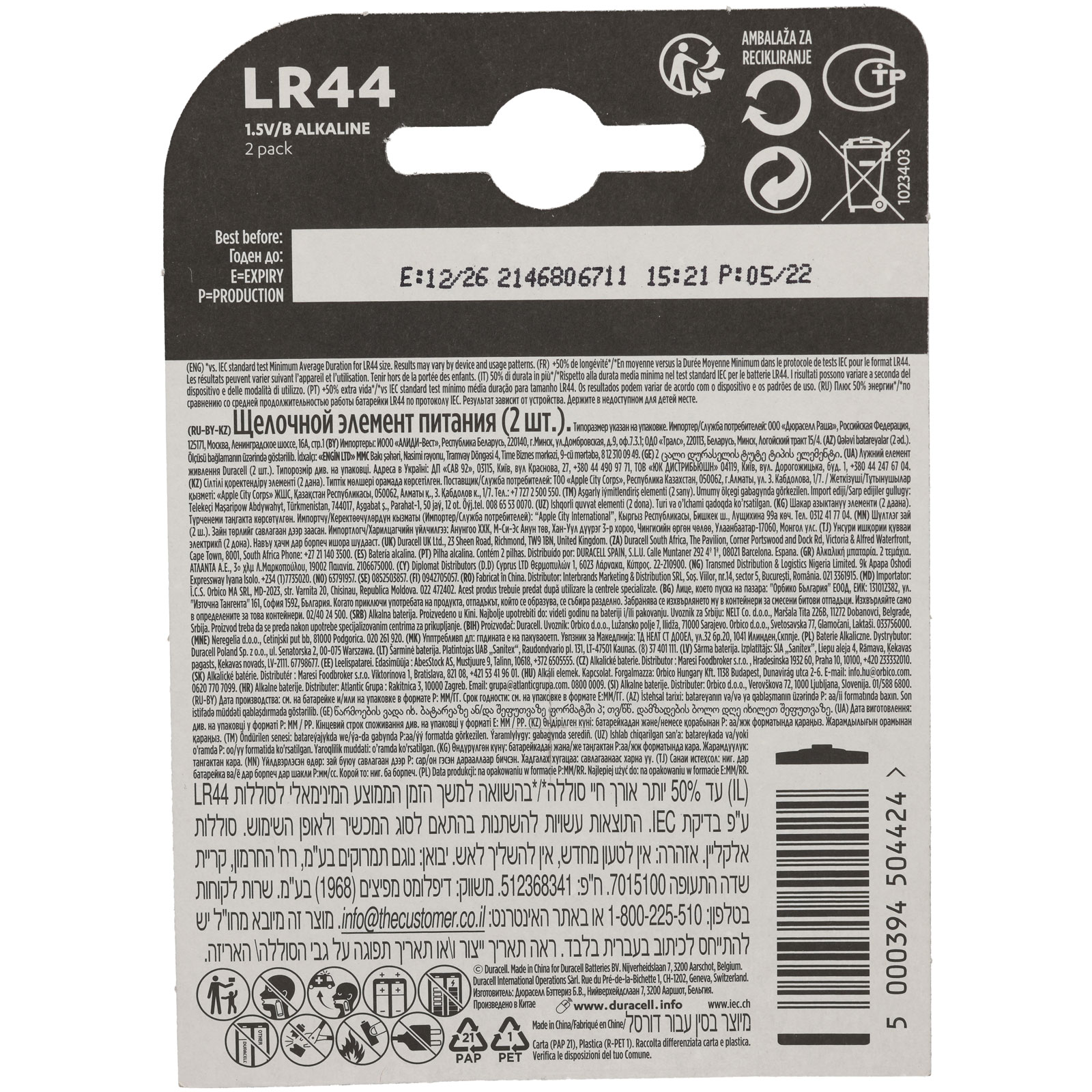

Reese's Law & Child-Resistant Packaging (2026 Update)

The Reese's Law (Public Law 117-171), enacted in 2022 with full enforcement beginning in 2026, mandates child-resistant packaging for all coin/button cell batteries, including LR44 and 357.

Key requirements:

Blister packs: Must require scissors or simultaneous pressure on multiple points to open
Zip bags: Must have child-resistant closure mechanisms (not standard zippers)
Warnings: Explicit swallowing hazard labels on front and back

Battery compartments: Devices must require a tool (screwdriver) or a dual simultaneous action to open

Why this matters: Ingestion of button batteries can cause severe internal chemical burns within 2 hours as the battery discharges through the tissue. The 2026 standards aim to reduce the 3,500+ ER visits in the US each year.

Storage best practices:

Keep in original packaging until use.
Store in locked drawers or high shelves
Never leave loose batteries in junk drawers accessible to children.

Dispose of used batteries immediately (they remain hazardous even when "dead")

Swallowing Hazards: Critical Response Protocol

If a child swallows any button battery:

1. Call 911 or Poison Control immediately (1-800-222-1222 in the US)
2. Do NOT induce vomiting—this can cause esophageal tearing.
3. Do NOT give food or drink—delays surgical removal.
4. Note the battery model—LR44 (alkaline) is less immediately dangerous than CR2032 (lithium), but all require urgent intervention

Symptoms of ingestion:

Drooling or difficulty swallowing
Coughing or gagging
Chest pain or discomfort

Unexplained vomiting

Time criticality: Tissue damage begins within 15 minutes and can perforate the esophagus within 2 hours. Immediate ER evaluation is mandatory even if symptoms seem mild.

Storage Secrets: Preventing Short Circuits

The "stacking" danger: Storing button batteries in loose contact with each other creates a short circuit. Current flows from the positive terminal to the negative terminal of the adjacent batteries, generating heat and potentially causing a fire.

Safe storage methods:

Original packaging: Keeps terminals isolated
Battery organizers: Plastic cases with individual compartments
Electrical tape: Cover the terminals of loose batteries
Avoid: Metal containers, pockets with coins/keys, and drawers stacked loosely.

Leakage Cleanup: HandlLR44 batteries can leak potassium hydroxide (a caustic alkali) when depleted or exposed to extreme temperatures.

Cleanup protocol:

1. Remove battery using gloves—leakage is skin-irritating
2. Neutralize: Apply white vinegar or lemon juice (acids) to alkaline residue.
3. Gently scrub: Use a cotton swab or an old toothbrush.
4. Rinse: With distilled water; dry thoroughly.
5. Inspect: Check for PCB damage; corrosion can destroy device electronics

Prevention: Remove batteries from devices before long-term storage. Never mix old and new batteries—voltage mismatch accelerates leakage in the weaker cell.

Q: Can I use an LR44 in a watch that requires an SR44?

A: Yes, physically it fits and will power the watch. However, expect shorter battery life (6-12 months vs. 2-3 years) and potential accuracy issues as voltage declines. For daily-wear watches, the $1-2 premium for SR44/357 is worth avoiding frequent replacements and timekeeping drift.

Q: Is LR44 the same as CR2032?

A: Absolutely not. They differ in every critical specification:

Feature	LR44	CR2032
Diameter	11.6mm	20.0mm
Height	5.4mm	3.2mm
Voltage	1.5V	3.0V
Chemistry	Alkaline/Silver Oxide	Lithium Manganese
Capacity	120-200 mAh	220 mAh

CR2032 is twice the diameter and twice the voltage—attempting to substitute will damage your device.

Q: Are LR44 batteries rechargeable?

A: No, and attempting to recharge them is dangerous. LR44 alkaline and silver oxide batteries are primary (non-rechargeable) cells. Charging can cause:

Thermal runaway (overheating, fire, explosion)

Leakage of corrosive electrolyte

Hydrogen gas generation (explosion risk in sealed compartments)

The only rechargeable button cell in this size is the LIR44 (lithium-ion, 3.6V), which requires dedicated chargers and is not interchangeable with LR44 devices due to voltage incompatibility.

Q: Why did my new LR44 die so fast?

A: Likely causes:

1. Counterfeit battery: Fake "Duracell" or "Energizer" batteries with 20-30% of stated capacity
2. Expired stock: Battery sat in warehouse for 3+ years; self-discharge depleted capacity
3. High-drain device: Toy motors or bright LEDs draw 10-50× the current of watches
4. Parasitic drain: Device has continuous standby current (some digital calipers draw 10µA even when "off")

Authentication tip: Genuine brand-name batteries have holographic seals, date codes, and consistent printing quality. Purchase from authorized distributors, not marketplace third parties, with prices "too good to be true."

Q: Can I mix alkaline and silver oxide batteries?

A: Never mix chemistries in the same device. The 0.05V difference and different discharge curves cause:

Uneven current distribution

Accelerated drain of the weaker battery

Potential leakage in the depleted cell

Device malfunction due to voltage instability

Always replace all batteries in a device with identical chemistry, brand, and production batch when possible.

Q: What's the best LR44 brand?

A: For reliability: Duracell 76A or Energizer A76 (consistent quality, 5-year shelf life)

For value: Maxell LR44 or Panasonic LR44 (Japanese manufacturing, good availability)
For precision devices: Energizer 357 or Duracell D357 (silver oxide, stable voltage)
Avoid: Unbranded "AG13" batteries from unknown sources—high failure rate, leakage risk, and capacity 30-50% below spec.

3-Point Pre-Purchase Verification

1. Verify Chemistry Requirements

Check device manual for "LR44" (alkaline acceptable) or "SR44/357" (silver oxide preferred)

When in doubt for precision devices, choose silver oxide

2. Inspect Packaging & Date Codes

Look for child-resistant packaging (2026 compliance)
Verify that the date code shows 2+ years of remaining shelf life.

Check for holographic seals on brand-name products

3. Calculate Total Cost of Ownership

For devices used daily, Silver oxide saves money in the long term.
For intermittent use, Alkaline is cost-effective.
For critical applications: Always stock spare batteries

Environmental Responsibility: Recycling Your LR44 Batteries

Never dispose of button cells in household trash. They contain heavy metals (mercury-free since 1996, but still zinc, manganese, silver oxide) that contaminate landfills.

Recycling options:

Retail drop-off: Home Depot, Lowe's, and Best Buy accept button batteries
Municipal hazardous waste: Local collection events
Mail-in programs: Call2Recycle.org offers prepaid shipping labels

Professional recycling: Battery Solutions, Retriev Technologies

Preparation: Tape the terminals with clear tape to prevent short circuits during transport.

The humble LR44 battery powers everything from precision measurement tools to life-saving medical devices. Understanding the difference between alkaline (LR44/AG13/A76) and silver oxide (357/SR44) chemistry transforms you from a frustrated user battling flickering displays to an informed consumer making strategic power choices.
Key takeaways:

Physical compatibility: LR44 = AG13 = A76 = L1154 (all 11.6mm × 5.4mm)
Performance hierarchy: 357/SR44 silver oxide outperforms LR44 alkaline in voltage stability and lifespan
Critical applications: Always use silver oxide for digital calipers, medical devices, and precision instruments

Safety first: Store securely, recycle responsibly, and know the emergency response for ingestion.

Ready to stock up on reliable power? Explore Welllinkchips's selection of genuine LR44, AG13, A76, and 357/SR44 batteries from trusted manufacturers. Whether you need bulk quantities for commercial applications or precision-grade cells for critical devices, we provide the authentic, fresh-dated batteries your equipment demands.

Need help selecting the right battery chemistry for your specific application? Our technical support team can cross-reference device manuals and recommend optimal power solutions for measurement tools, audio equipment, medical devices, and more.
