That dashboard battery warning light just flickered on. Your headlights are dimming at stoplights. Or worse—your third battery this year just died prematurely. Before you drop $200 at the mechanic or start blindly swapping parts, grab a $20 multimeter. Testing a voltage regulator takes 10 minutes, requires zero mechanical expertise, and can save you hundreds in misdiagnosed repairs.

Now, let's look at how you can safely and effectively test a voltage regulator across different applications. This will give you the confidence to diagnose whether the issue is with your regulator, battery, or alternator.

A voltage regulator is your electrical system's traffic controller. Its sole job: maintain steady voltage output regardless of input fluctuations. Without it, your alternator's variable AC output would fry sensitive electronics and overcharge your battery.

Modern regulators live in three configurations:

• External: Separate box, often on the firewall (older vehicles)
• Internal: Inside the alternator housing (most 1990+ vehicles)
• Integrated: Combined with a rectifier on motorcycles; circuit-mounted in electronics

Understanding your setup matters for testing location, but the multimeter procedure remains universal.

Before You Touch Anything: Tools & Safety

When applying electrical load (headlights, AC), ensure the engine compartment is clear of tools, and hands stay clear of moving parts.

Universal Voltage Regulator Testing Procedure

• External: Rectangular aluminum box, often finned for cooling, mounted on firewall or fender
• Internal: Inside alternator rear housing (access through back cover or test at battery/alternator output)
• Motorcycle: Near battery or under seat, often combined with rectifier (rectifier-regulator unit)

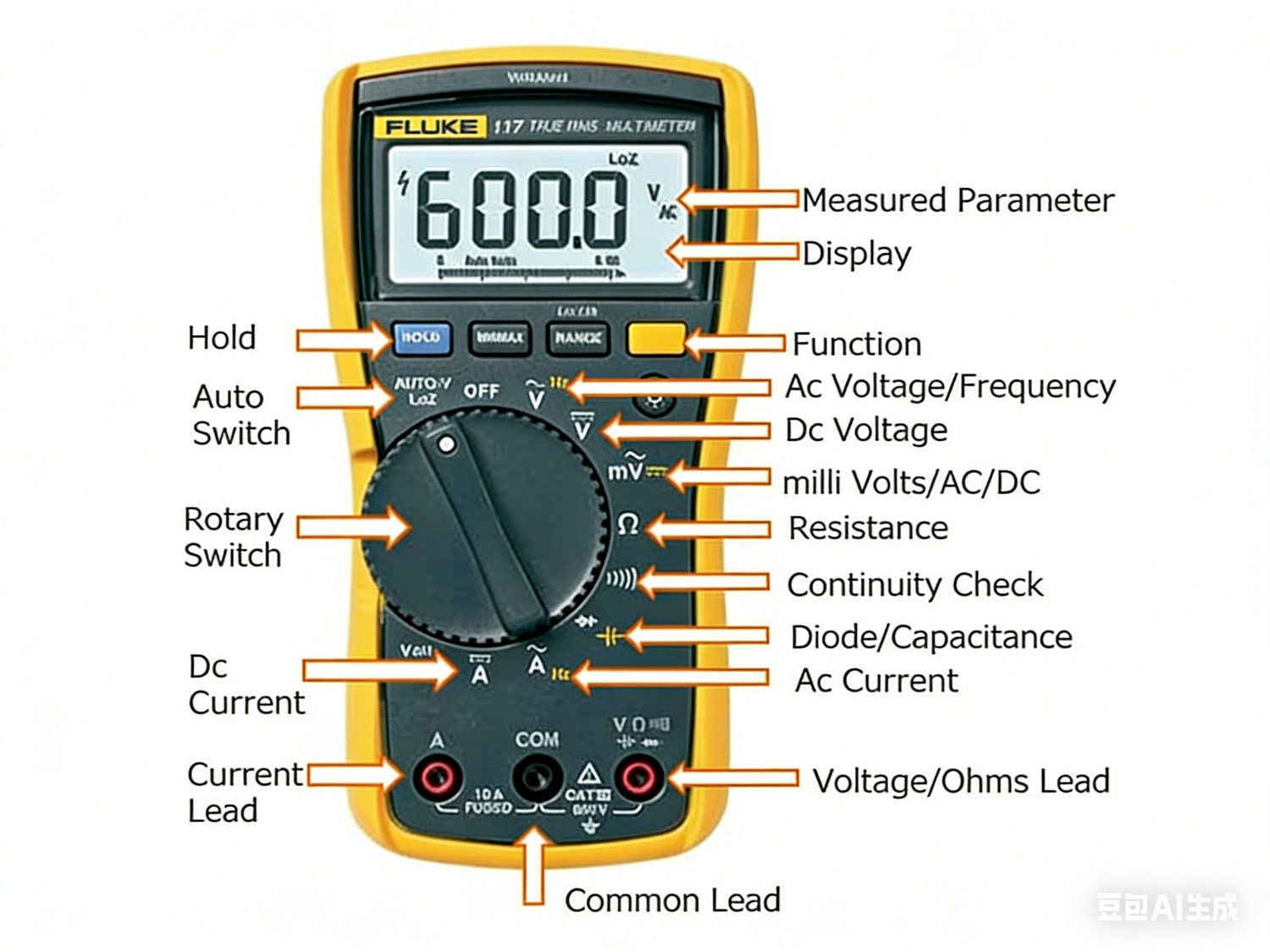

1. Insert the black lead into the COM (common) jack.
2. Insert red lead into VΩmA (voltage) jack.
3. Turn the dial to DC Voltage (V⎓)
4. Select 20V range (or auto-range)

Pre-test verification: First, touch the probes together; the multimeter should display 0.00V. Next, touch the probes to a known-good battery with the engine off; the meter should read between 12.4V and 12.6V.

• Below 12.0V: Discharged or failing battery

• Should match alternator/stator output: 13–18V AC (stator) or 13–16V DC (alternator)
• Zero input: Problem is upstream (alternator, stator, or wiring)

Measure regulator output (wire to battery positive):

• Below 13.0V: Undercharging (bad regulator, weak alternator, or high resistance)
• Above 15.0V: Overcharging (regulator failure—immediate shutdown required)
• Erratic swing: Intermittent internal connection or failing components

With the engine at 1500 RPM, activate the high beams, the blower fan, and the rear defroster. Voltage should remain 13.5–14.5V. Dropping below 13.0V indicates insufficient regulator capacity or alternator weakness.

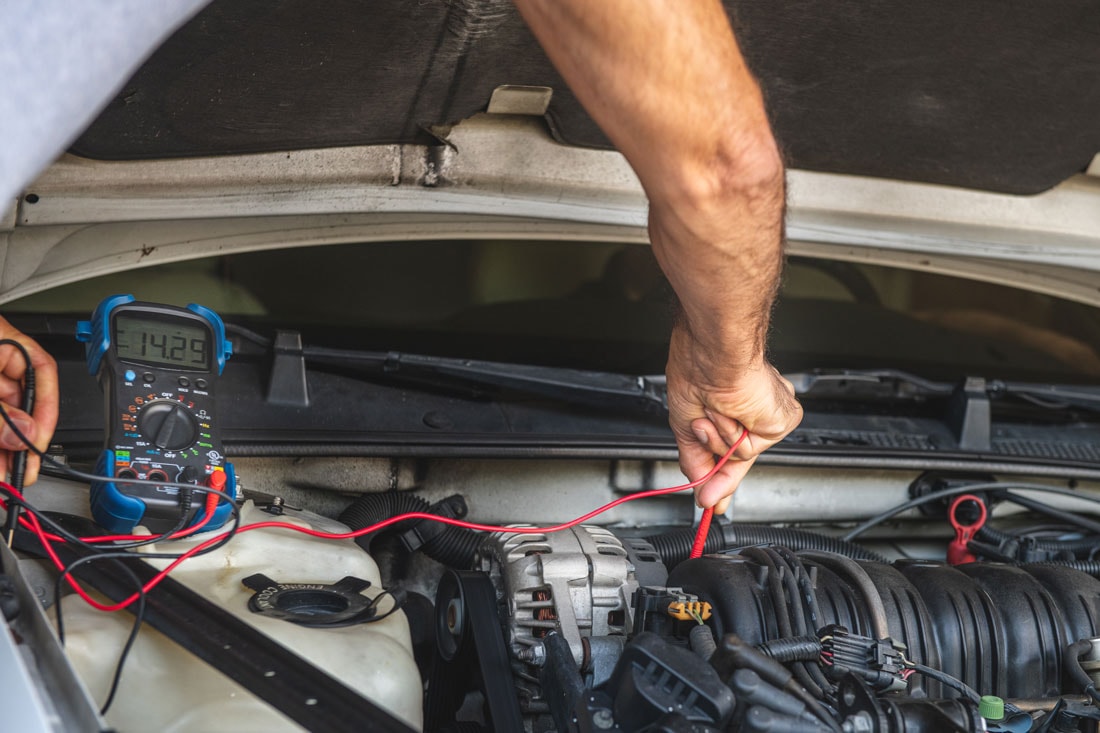

• Black probe to the negative terminal
• Red probe to the positive terminal
• Record static voltage

• Start engine, let idle stabilize (2 minutes)
• Voltage should climb to 13.5–14.5V within 30 seconds.
• No climb = regulator not activating or alternator failure.

• Carefully touch the red probe to the alternator positive output stud (thick wire)
• Should read 0.1–0.3V higher than battery terminals (normal cable loss)
• A significant difference indicates cable corrosion.

• Rev to 2000 RPM
• Turn on the headlights, blower, and heated seats.
• Voltage should hold 13.5V minimum.
• Dropping to 12V or below = regulator or alternator capacity issue

• Locate regulator box (firewall-mounted)
• Test input wire (from alternator field) and output wire (to battery)
• Input should vary with RPM; output should stay steady.

Motorcycle: Stator & Rectifier-Regulator Systems

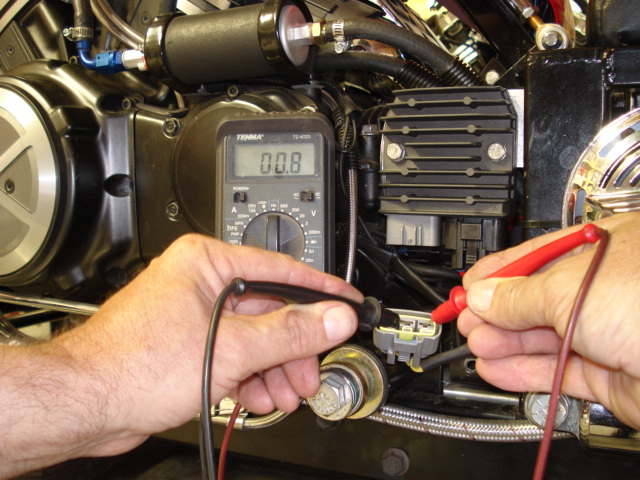

Step 1: Stator AC Output (Unregulated Source)

• Set the multimeter to AC Voltage (V∿)
• Locate stator connector (3 yellow wires, typically)
• Measure between each pair (Y1-Y2, Y2-Y3, Y1-Y3)
• At idle: 15–30V AC typical
• At 5000 RPM: 50–100V AC (varies by bike)
• Zero or uneven readings: Bad stator (replace before regulator)

• Set the multimeter to DC Voltage.
• Measure at battery terminals:
• • Idle: 13.0–14.5V
  • 5000 RPM: 13.5–14.5V (should stabilize, not climb)
  • Above 15V: Regulator failure (shunt type stuck open)

• Shunt regulators (common on Japanese bikes) dump excess current to ground. Fail "closed" = overcharge. Fail "open" = no charge.
• Series regulators (modern European bikes) interrupt current flow. Fail "open" = overcharge. Fail "closed" = no charge.

Critical: Always test stator health before condemning the regulator. A shortened stator can destroy a new regulator within hours.

RV & Generator Voltage Regulators

• Access regulator at the generator control panel or under the generator shroud
• Test at battery terminals with the generator running.
• Expected: 13.2–14.6V DC
• Unique consideration: Some RVs have house battery isolators—test at generator output post, not just battery

• Many lack automatic voltage regulators (AVRs) and instead use capacitor excitation.
• If equipped with an AVR (Honda EU series, Champion inverter models):
• • Locate the AVR module near the alternator.
  • Test output voltage stability under 50% and 100% load
  • Swinging voltage (>2V fluctuation) indicates a failing AVR.

High-output considerations: RV regulators often handle 60–100+ amps. Voltage drop under heavy load (AC, microwave, inverter) is normal; sustained drop below 12.6V indicates capacity issues.

Electronics: Bench Testing Discrete Regulators

• Test across input-output pins: Should not be shorted (0Ω)
• Test from output to ground: Should not be shorted

• Input pin: Should match supply voltage (e.g., 12V)
• Output pin: Should match rated voltage (5.0V for 7805, adjustable for LM317)
• No output: Failed open
• Input voltage at output: Failed short (replace immediately—risk of downstream damage)

Scenario A: Overcharging (>15.0V)

• Does voltage climb steadily with RPM without stabilizing?
• Does disconnecting the regulator's small wire (if accessible) stop the climb?
• Action: Replace the regulator immediately. Driving risks battery explosion and ECU damage.

Scenario B: Undercharging (<13.0V at cruise)

1. Worn brushes (alternator with internal regulator): Voltage rises with light tapping on the alternator case
2. Slipping belt: Squeal on startup, glazed pulley
3. Bad regulator: No voltage rise at all, even at high RPM
4. Weak alternator: Voltage drops significantly under load

Scenario C: No Charging (Battery voltage only, never rises)

1. Alternator belt: Present and tight?
2. Fuses: Main alternator fuse blown?
3. Wiring: Corroded battery terminals, damaged cables?
4. Regulator: Only after eliminating the above

Scenario D: Erratic Voltage (swinging 12–15V)

• Loose regulator connections
• Failing alternator diodes (AC ripple—test with oscilloscope or multimeter Hz function)
• Intermittent regulator internal fault

When to Replace the Regulator

• Confirmed overcharging or undercharging
• Physical damage (burned connectors, melted housing)
• 100,000 miles on original unit (preventive maintenance)

OEM vs. Aftermarket

When the Regulator Isn't the Problem

• Test battery: Load test at an auto parts store (free). Bad batteries mimic charging issues.
• Check grounds: Voltage drop between battery negative and engine block should be <0.1V
• Parasitic draw: Battery drains overnight? Test for current leak with a multimeter in series (ammeter mode)

A: 100,000–150,000 miles in automotive applications, or 8–12 years. Heat is the enemy—vehicles in hot climates or with poor ventilation may fail sooner. Motorcycle regulators often fail at 20,000–40,000 miles due to high RPM heat and vibration.

A: Rarely. Most regulators fail in either the "closed" (conducting) or the "open" (non-conducting) mode. A shorted regulator could create a drain, but parasitic draws are more commonly caused by lights, modules, or aftermarket accessories. Test with a multimeter in series (ammeter mode) between the battery negative and the cable to confirm the draw.

A: In modern vehicles (1990+), yes—it's inside the alternator rear housing. In older vehicles and many heavy trucks, it's a separate external box. Some motorcycles mount the regulator near the battery, separate from the alternator (stator).

A: The rectifier converts AC (alternator output) to DC (battery charging current). The voltage regulator controls how much DC voltage reaches the battery. Many motorcycle and small engine components combine both into a "regulator-rectifier" unit.

A: Absolutely not if overcharging (>15V). You risk battery explosion, melted wiring, and destroyed electronics. Briefly, if undercharging, but you'll strand yourself when the battery dies. Tow the vehicle or replace the regulator immediately.

Testing a voltage regulator transforms you from a parts-swapper into a diagnostic technician. With a $20 multimeter and this guide, you've gained the ability to distinguish between a $30 regulator fix and a $300 alternator replacement—or identify that the real culprit was a $5 corroded cable.

The key is systematic testing: establish baselines, measure under multiple conditions, and interpret results against known-good specifications. Your multimeter doesn't lie; it simply reveals what your eyes can't see.
