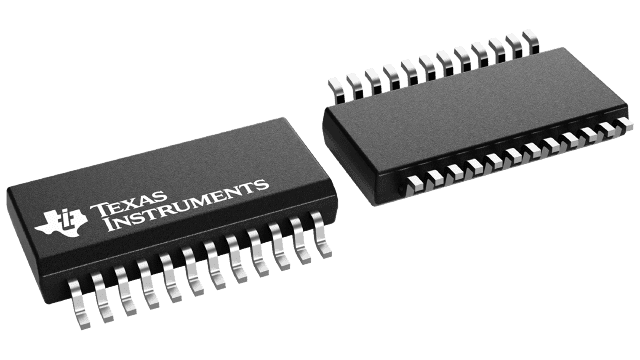

XTR108
  • XTR108

XTR108

ACTIVE

4-20mA, Two-Wire Transmitter 'Smart' Programmable with Signal Conditioning

Texas Instruments XTR108 Product Info

1 April 2026 5

Parameters

Vs (min) (V)

4.5

Vs (max) (V)

5.5

Offset voltage drift (±) (max) (µV/°C)

0.1

Offset voltage (±) (max) (mV)

0.05

Product type

2-wire RTD conditioner

Operating temperature range (°C)

-40 to 85

Rating

Catalog

Package

SSOP (DBQ)-24-51.9 mm² 8.65 x 6

Features

  • COMPLETE TRANSMITTER +RTD LINEARIZATION
  • TWO-WIRE, 4-20mA OUTPUT
  • VOLTAGE OUTPUT (0.5V to 4.5V)
  • ELIMINATES POTENTIOMETERS AND TRIMMING
  • DIGITALLY CALIBRATED
  • 5V SUB-REGULATOR OUTPUT
  • SERIAL SPI™ BUS INTERFACE
  • SSOP-24 PACKAGE
  • APPLICATIONS
    • REMOTE RTD TRANSMITTERS
    • PRESSURE BRIDGE TRANSMITTERS
    • STRAIN GAGE TRANSMITTERS
    • SCADA REMOTE DATA ACQUISITION
    • WEIGHING SYSTEMS
    • INDUSTRIAL PROCESS CONTROL

SPI is a trademark of Motorola, Inc. All other trademarks are the property of their respective owners.

  • COMPLETE TRANSMITTER +RTD LINEARIZATION
  • TWO-WIRE, 4-20mA OUTPUT
  • VOLTAGE OUTPUT (0.5V to 4.5V)
  • ELIMINATES POTENTIOMETERS AND TRIMMING
  • DIGITALLY CALIBRATED
  • 5V SUB-REGULATOR OUTPUT
  • SERIAL SPI™ BUS INTERFACE
  • SSOP-24 PACKAGE
  • APPLICATIONS
    • REMOTE RTD TRANSMITTERS
    • PRESSURE BRIDGE TRANSMITTERS
    • STRAIN GAGE TRANSMITTERS
    • SCADA REMOTE DATA ACQUISITION
    • WEIGHING SYSTEMS
    • INDUSTRIAL PROCESS CONTROL

SPI is a trademark of Motorola, Inc. All other trademarks are the property of their respective owners.

Description

The XTR108 is a "smart", programmable, 4-20mA, two-wire transmitter designed for temperature and bridge sensors. Zero, span, and linearization errors in the analog signal path can be calibrated via a standard digital serial interface, eliminating manual trimming. Non-volatile ex-ternal EEPROM stores calibration settings.

The all-analog signal path contains an input multiplexer, autozeroed programmable-gain instrumentation amplifier, dual programmable current sources, linearization circuit, voltage reference, sub-regulator, internal oscillator, control logic, and an output current amplifier. Programmable level shifting compensates for sensor DC offsets. Selectable up- and down-scale output indicates out-of-range and burn-out per NAMUR NE43. Automatic reset is initiated when supply is lost.
