ACTIVE
Number of channels |
2 |
Isolation rating |
Functional |
Power switch |
IGBT, MOSFET, SiCFET |
Withstand isolation voltage (VISO) (Vrms) |
2500 |
Working isolation voltage (VIOWM) (Vrms) |
560 |
Transient isolation voltage (VIOTM) (VPK) |
3535 |
Peak output current (A) |
6 |
Features |
Disable, Programmable dead time |
Output VCC/VDD (min) (V) |
6.5 |
Output VCC/VDD (max) (V) |
25 |
Input supply voltage (min) (V) |
3 |
Input supply voltage (max) (V) |
18 |
Propagation delay time (µs) |
0.019 |
Input threshold |
CMOS, TTL |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Automotive |
Rise time (ns) |
6 |
Fall time (ns) |
7 |
Undervoltage lockout (typ) (V) |
5 |
VLGA (NPL)-13-25 mm² 5 x 5

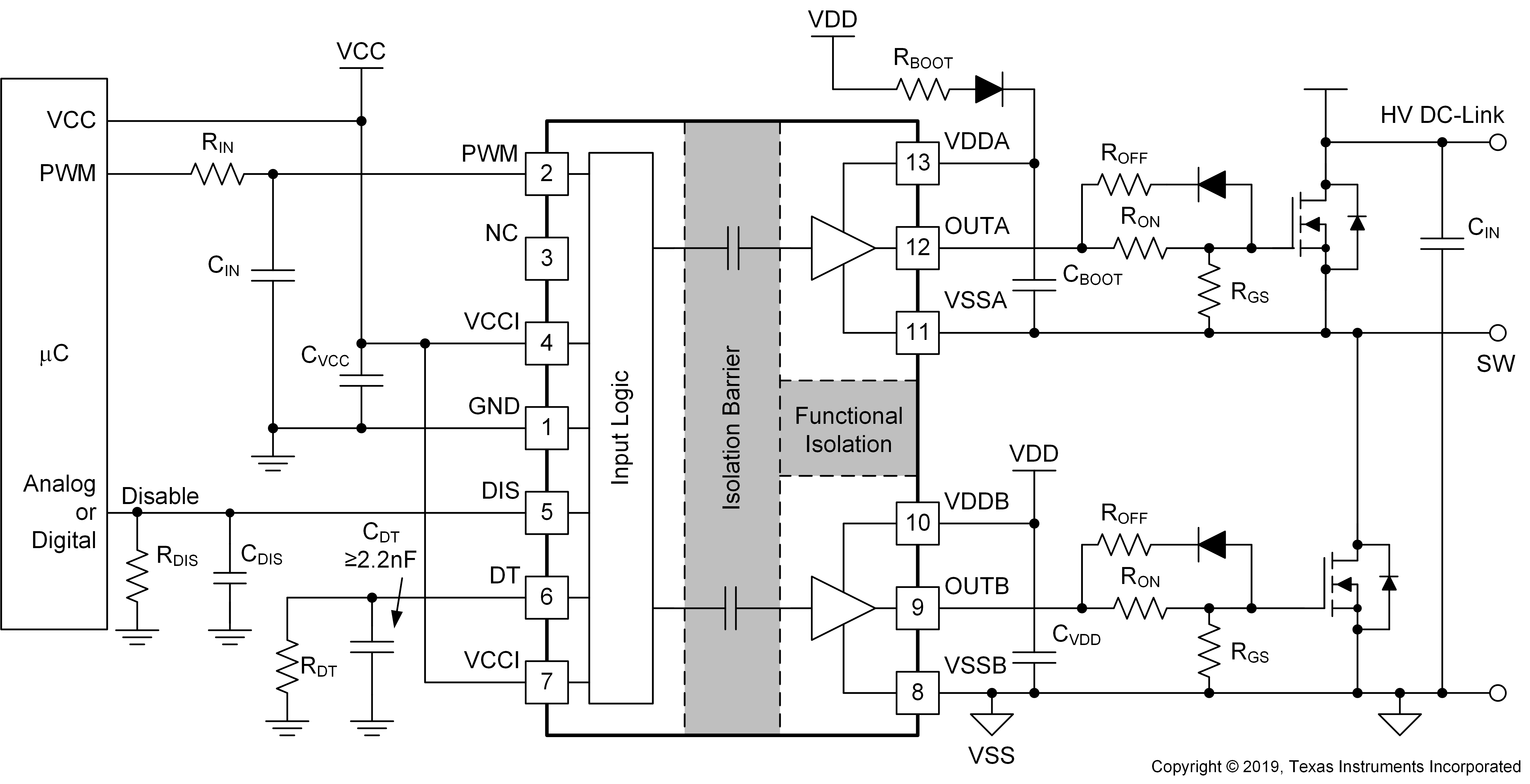

The UCC20225-Q1 family are single-input, dual-output isolated gate drivers with 4-A source and 6-A sink peak current in 5-mm x 5-mm LGA-13. It is designed to drive power transistors up to 5-MHz with best-in-class propagation delay and pulse-width distortion.
The input side is isolated from the two output drivers by a 2.5-kVRMS isolation barrier, with minimum 100-V/ns common-mode transient immunity (CMTI). Internal functional isolation between the two output-side drivers allows working voltage up to 700-VDC.
The UCC20225-Q1 family allow programmable dead time through a resistor on DT pin. A DIS pin shuts down both outputs simultaneously when set high, and allows normal operation when left grounded.
The device accepts VDD supply voltages up to 25-V. A wide VCCI range from 3-V to 18-V makes the driver suitable for interfacing with both analog and digital controllers. All supply voltage pins have under voltage lock-out (UVLO) protection.
With all these advanced features, the UCC20225-Q1 family enables high power density, high efficiency, and robustness in a variety of automotive applications.
