0
ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.5 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
8 |
Slew rate (typ) (V/µs) |
6.5 |
Vos (offset voltage at 25°C) (max) (mV) |
1.5 |
Iq per channel (typ) (mA) |
0.6 |
Vn at 1 kHz (typ) (nV√Hz) |
18 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
0.53 |
Features |
Cost Optimized, EMI Hardened |
CMRR (typ) (dB) |
103 |
Iout (typ) (A) |
0.05 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
0.1 |
Output swing headroom (to negative supply) (typ) (V) |
0.015 |
Output swing headroom (to positive supply) (typ) (V) |
-0.015 |
SOIC (D)-14-51.9 mm² 8.65 x 6

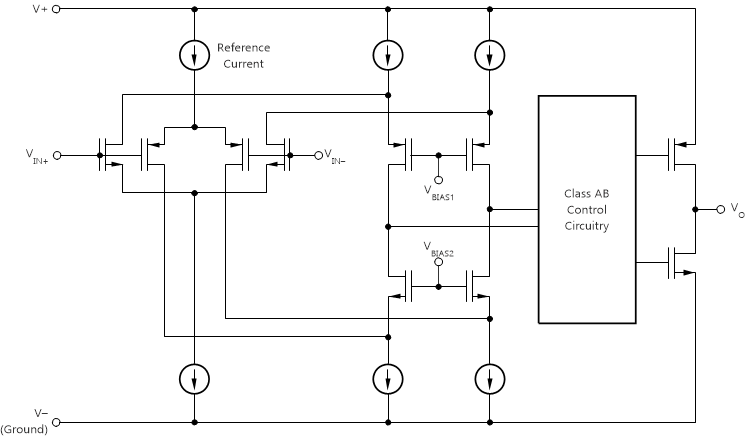

The TSV91xA-Q1 family, which includes single-, dual-, and quad-channel operational amplifiers (op amps), is specifically designed for general-purpose automotive applications. Featuring rail-to-rail input and output (RRIO) swings, wide bandwidth (8 MHz), and low offset voltage (0.3 mV, typical), this family is designed for a variety of applications that require a good balance between speed and power consumption. The op amps are unity-gain stable and feature an ultra-low input bias current, which enables the family to be used in applications with high-source impedance. The low input bias current allows the devices to be used for sensor interfaces, and active filtering.
The robust design of the TSV91xA-Q1 provides ease-of-use to the circuit designer. Features include a unity-gain stable, integrated RFI-EMI rejection filter, no phase reversal in overdrive condition, and high electrostatic discharge (ESD) protection (4-kV HBM).
