ACTIVE
Vrwm (V) |
15 |
Bi-/uni-directional |
Uni-Directional |
Package name |
SOD323 |
Peak pulse power (8/20 μs) (max) (W) |
300 |
IEC 61000-4-5 (A) |
15 |
Breakdown voltage (min) (V) |
18.3 |
Number of channels |
1 |
IO capacitance (typ) (pF) |
12 |
Clamping voltage (V) |
31 |
SOT (DYF)-2-3.445 mm² 2.65 x 1.3
The TSDxx-Q1 are a family of unidirectional TVS protection diodes designed for clamping harmful transients such as ESD and surge. The TSDxx-Q1 are rated to dissipate ESD strikes up to ±30kV (contact and air gap discharge) and also meets the the maximum level specified in the IEC 61000-4-2 international standard (Level 4).
Combining the robust clamping performance and low capacitance of these devices, TSDxx-Q1 are excellent TVS diodes to protect both data and power lines in many different applications.

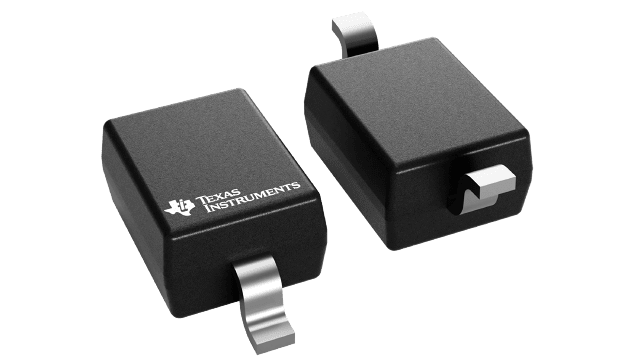

The TSDxx-Q1 is offered in the industry standard, leaded SOD-323 package to enable easy solderability.
