0
ACTIVE
Configuration |
3:1 |
Number of channels |
1 |
Power supply voltage - single (V) |
1.8, 2.5, 3.3, 5 |
Protocols |
Analog |
Ron (typ) (Ω) |
0.7 |
CON (typ) (pF) |
78 |
ON-state leakage current (max) (µA) |
0.22 |
Supply current (typ) (µA) |
0.01 |
Bandwidth (MHz) |
75 |
Operating temperature range (°C) |
-40 to 85 |
Features |
Break-before-make, Powered-off protection |
Input/output continuous current (max) (A) |
0.2 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
5.5 |
Supply voltage (max) (V) |
5.5 |

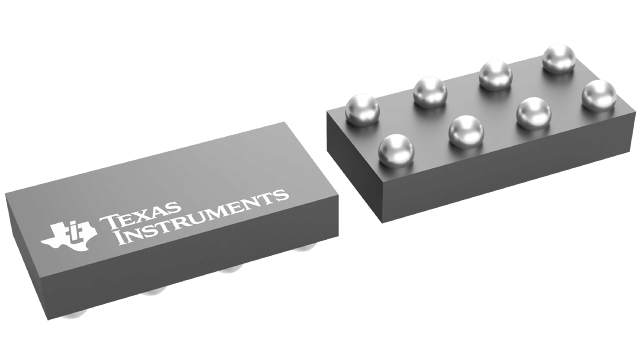

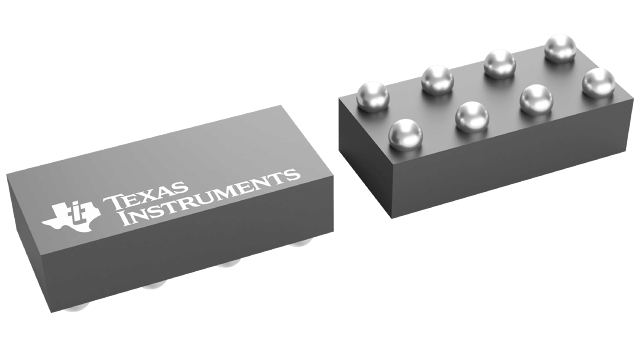

DSBGA (YZP)-8-2.8125 mm² 2.25 x 1.25
The TS5A3359 device is a bidirectional, single channel, single-pole triple-throw (SP3T) analog switch that is designed to operate from 1.65 V to 5.5 V. This device provides a signal switching solution while maintaining excellent signal integrity, which makes the TS5A3359 suitable for a wide range of applications in various markets including personal electronics, test and measurement equipment, and portable instrumentation. The device maintains the signal integrity by its low ON-state resistance, excellent ON-state resistance matching, and total harmonic distortion (THD) performance. To prevent signal distortion during the transferring of a signal from one channel to another, the TS5A3359 device also has a specified break-before-make feature. The device consumes very low power and provides isolation when VCC = 0.
