ACTIVE
Configuration |
2:1 SPDT |
Number of channels |
1 |
Power supply voltage - single (V) |
1.8, 2.5, 3.3, 5 |
Protocols |
Analog |
Ron (typ) (Ω) |
0.7 |
CON (typ) (pF) |
84 |
ON-state leakage current (max) (µA) |
0.1 |
Supply current (typ) (µA) |
0.01 |
Bandwidth (MHz) |
100 |
Operating temperature range (°C) |
-40 to 85 |
Features |
Break-before-make, Powered-off protection |
Input/output continuous current (max) (A) |
0.2 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
5.5 |
Supply voltage (max) (V) |
5.5 |

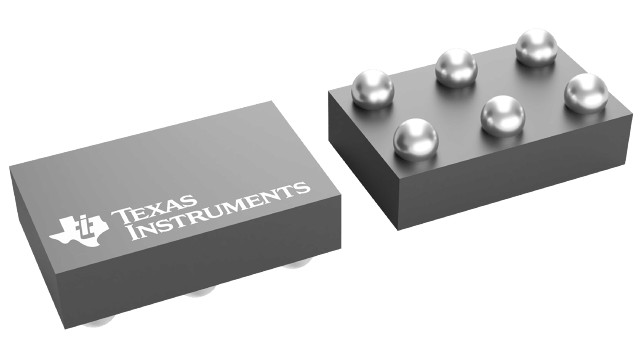

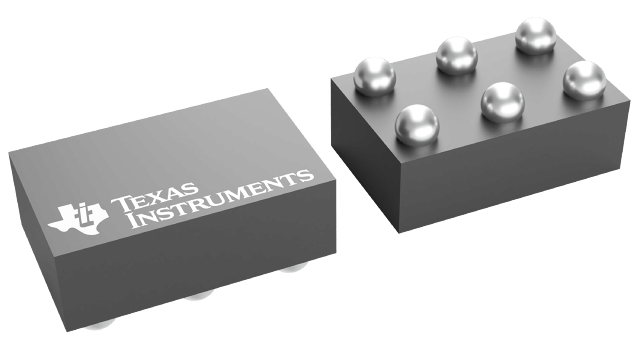

DSBGA (YZP)-6-2.1875 mm² 1.75 x 1.25

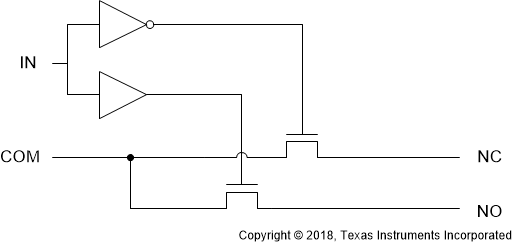

The TS5A3159A device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers low on-state resistance and excellent ON-state resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
