ACTIVE
Architecture |
Voltage FB |
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
12 |
GBW (typ) (MHz) |
180 |
BW at Acl (MHz) |
90 |
Acl, min spec gain (V/V) |
2 |
Slew rate (typ) (V/µs) |
170 |
Vn at flatband (typ) (nV√Hz) |
4.5 |
Vn at 1 kHz (typ) (nV√Hz) |
4.5 |
Iq per channel (typ) (mA) |
6.2 |
Vos (offset voltage at 25°C) (max) (mV) |
5.5 |
Rail-to-rail |
In to V- |
Features |
Decompensated |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 150 |
CMRR (typ) (dB) |
110 |
Input bias current (max) (pA) |
14000000 |
Offset drift (typ) (µV/°C) |
5 |
Iout (typ) (mA) |
200 |
2nd harmonic (dBc) |
92 |
3rd harmonic (dBc) |
95 |
Frequency of harmonic distortion measurement (MHz) |
1 |

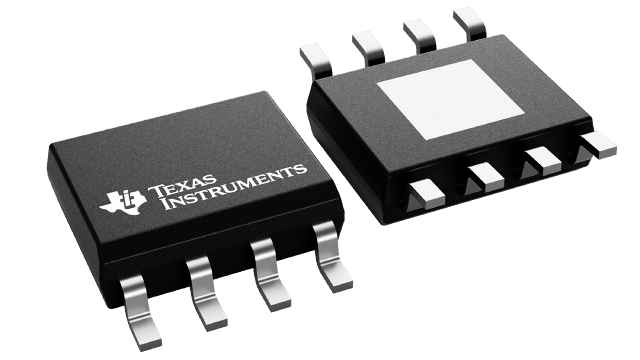

HSOIC (DDA)-8-29.4 mm² 4.9 x 6

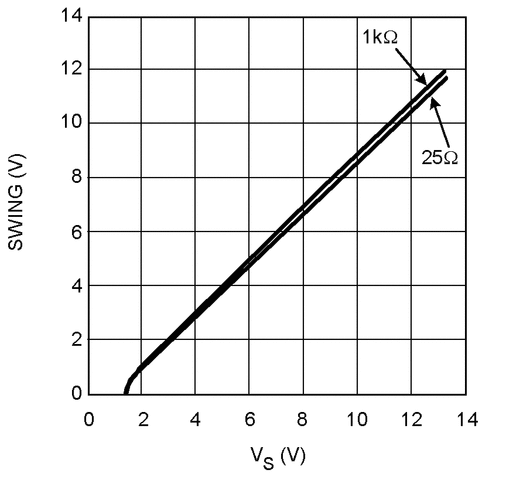

The LMH6672 is a low cost, dual high speed op amp capable of driving signals to within 1 V of the power supply rails. It features the high output drive with low distortion required for the demanding application of a single supply xDSL line driver.

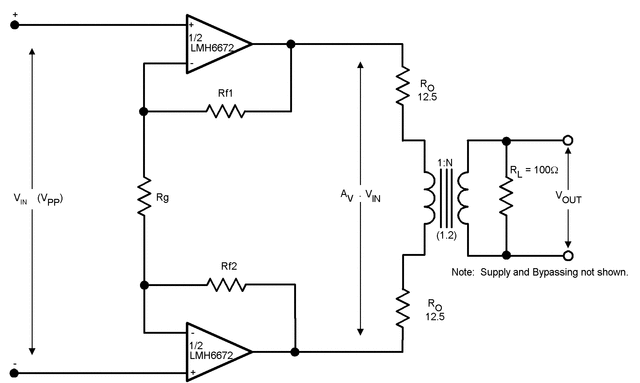

When connected as a differential output driver, the LMH6672 can drive a 50-Ω load to 16.8 VPP swing with only −98 dBc distortion, fully supporting the peak upstream power levels for upstream full-rate ADSL. The LMH6672 is fully specified for operation with 5-V and 12-V supplies. Ideal for PCI modem cards and xDSL modems.
