0
ACTIVE
Configuration |
2:1 SPDT |
Number of channels |
1 |
Power supply voltage - single (V) |
1.8, 2.5, 3.3, 5 |
Protocols |
Analog |
Ron (typ) (Ω) |
5.5 |
CON (typ) (pF) |
17.5 |
ON-state leakage current (max) (µA) |
0.2 |
Supply current (typ) (µA) |
2.5 |
Bandwidth (MHz) |
300 |
Operating temperature range (°C) |
-40 to 85 |
Features |
Break-before-make |
Input/output continuous current (max) (A) |
0.05 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
5.5 |
Supply voltage (max) (V) |
5.5 |

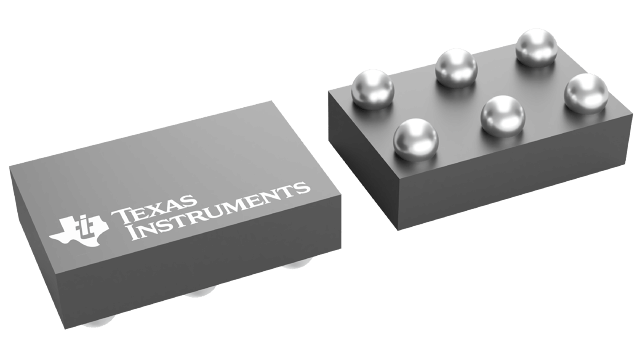

DSBGA (YZP)-6-2.1875 mm² 1.75 x 1.25

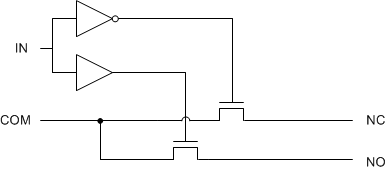

The TS5A3157 device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65V to 5.5V. This device handles both digital and analog signals. Signals up to V+ can be transmitted in either direction.
