TS5A23157
  • TS5A23157
  • TS5A23157
  • TS5A23157

TS5A23157

ACTIVE

5-V, 2:1 (SPDT), 2-channel analog switch

Texas Instruments TS5A23157 Product Info

1 April 2026 4

Parameters

Configuration

2:1 SPDT

Number of channels

2

Power supply voltage - single (V)

1.8, 2.5, 3.3, 5

Protocols

Analog, I2C, LVDS, UART

Ron (typ) (Ω)

10

CON (typ) (pF)

17.5

ON-state leakage current (max) (µA)

1

Supply current (typ) (µA)

1

Bandwidth (MHz)

220

Operating temperature range (°C)

-40 to 125

Features

Break-before-make

Input/output continuous current (max) (A)

0.05

Rating

Catalog

Drain supply voltage (max) (V)

5.5

Supply voltage (max) (V)

5.5

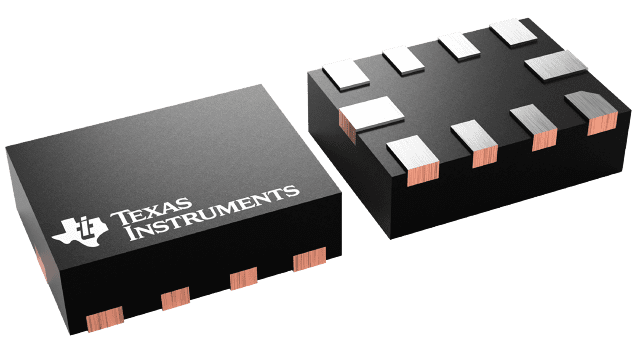

Package

UQFN (RSE)-10-3 mm² 2 x 1.5

Features

  • Low ON-State Resistance (15 Ω at 125℃)
  • 125℃ Operation
  • Control Inputs are 5-V Tolerant
  • Specified Break-Before-Make Switching
  • Low Charge Injection
  • Excellent ON-Resistance Matching
  • Low Total Harmonic Distortion
  • 1.8-V to 5.5-V Single-Supply Operation
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Performance Tested Per JESD 22
    • 2000-V Human-Body Model
      (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
  • Low ON-State Resistance (15 Ω at 125℃)
  • 125℃ Operation
  • Control Inputs are 5-V Tolerant
  • Specified Break-Before-Make Switching
  • Low Charge Injection
  • Excellent ON-Resistance Matching
  • Low Total Harmonic Distortion
  • 1.8-V to 5.5-V Single-Supply Operation
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Performance Tested Per JESD 22
    • 2000-V Human-Body Model
      (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)

Description

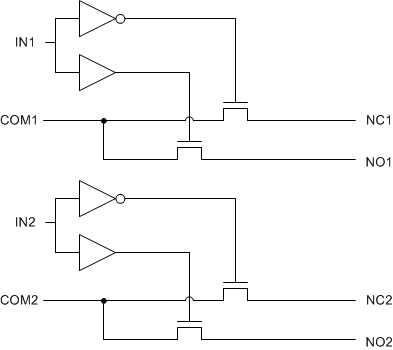

The TS5A23157 device is a dual single-pole double-throw (SPDT) analog switch designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals. Signals up to 5.5 V (peak) can be transmitted in either direction.
