AMC3311
  • AMC3311
  • AMC3311

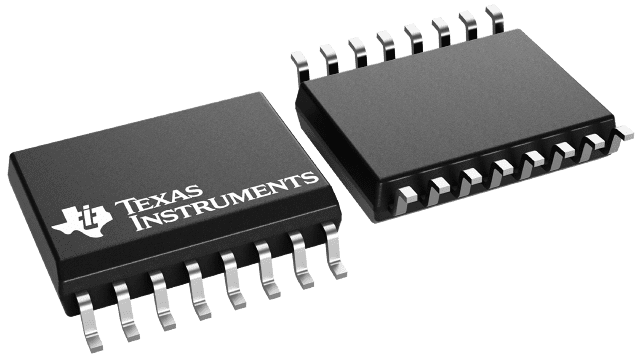

AMC3311

ACTIVE

2-V input, precision-voltage-sensing reinforced isolated amplifier with integrated DC/DC

Texas Instruments AMC3311 Product Info

1 April 2026 3

Parameters

Device type

Voltage sensing

Output type

Differential

Peak-to-peak input voltage range (V)

2

Isolation rating

Reinforced

Withstand isolation voltage (VISO) (Vrms)

4250

Working isolation voltage (VIOWM) (Vrms)

1200

Transient isolation voltage (VIOTM) (VPK)

6000

CMTI (min) (kV/µs)

75

Input offset (±) (max) (V)

0.0002

Input offset drift (±) (typ) (µV/°C)

5

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

SO-MOD (DWE)-16-106.09 mm² 10.3 x 10.3

Features

  • Single-supply operation (3.3 V or 5 V) with integrated DC/DC converter
  • Input voltage range (2 V) optimized for voltage measurements with high input impedance
  • Fixed gain: 1.0
  • Low DC errors:
    • Offset error: ±1 mV (max)
    • Offset drift: ±10 µV/°C (max)
    • Gain error: ±0.2% (max)
    • Gain drift: ±40 ppm/°C (max)
    • Nonlinearity: ±0.02% (max)
  • High CMTI: 85 kV/µs (min)
  • System-level diagnostic features
  • Meets CISPR-11 and CISPR-25 EMI standards
  • Safety-related certifications:
    • 6000-V PK reinforced isolation per DIN EN IEC 60747-17 (VDE 0884-17)
    • 4250-V RMS isolation for 1 minute per UL1577
  • Fully specified over the extended industrial temperature range: –40°C to +125°C
  • Single-supply operation (3.3 V or 5 V) with integrated DC/DC converter
  • Input voltage range (2 V) optimized for voltage measurements with high input impedance
  • Fixed gain: 1.0
  • Low DC errors:
    • Offset error: ±1 mV (max)
    • Offset drift: ±10 µV/°C (max)
    • Gain error: ±0.2% (max)
    • Gain drift: ±40 ppm/°C (max)
    • Nonlinearity: ±0.02% (max)
  • High CMTI: 85 kV/µs (min)
  • System-level diagnostic features
  • Meets CISPR-11 and CISPR-25 EMI standards
  • Safety-related certifications:
    • 6000-V PK reinforced isolation per DIN EN IEC 60747-17 (VDE 0884-17)
    • 4250-V RMS isolation for 1 minute per UL1577
  • Fully specified over the extended industrial temperature range: –40°C to +125°C

Description

The AMC3311 is a precision, isolated amplifier with a fully integrated, isolated DC/DC converter that allows single-supply operation from the low-side of the device. The reinforced capacitive isolation barrier is highly resistant to magnetic interference, is certified according to DIN EN IEC 60747-17 (VDE 0884-17) and UL1577, and supports a working voltage of up to 1200 V RMS.

The isolation barrier separates parts of the system that operate on different common-mode voltage levels and protects the low-voltage side from voltage levels that can cause electrical damage and are potentially harmful to an operator.

The input of the AMC3311 is optimized for direct connection to high-impedance resistive dividers that are typically used for sensing high voltages. The integrated isolated DC/DC converter allows measurement of non-ground-referenced signals and makes the device a unique solution for noisy, space-constrained applications. The high DC accuracy and low temperature drift support accurate voltage monitoring and control.

The AMC3311 is offered in a wide-body, 16-pin SOIC package, and is specified over the temperature range of –40°C to +125°C.
