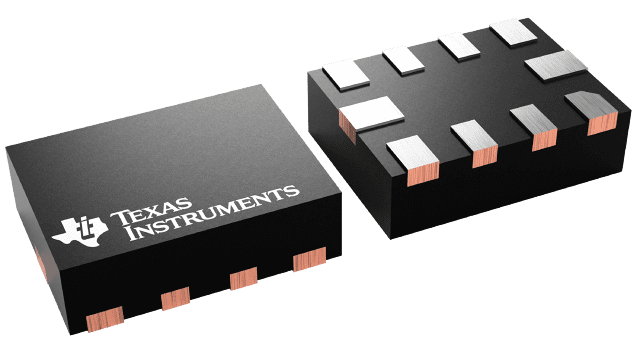

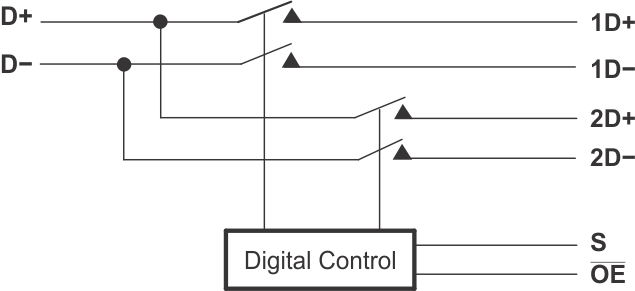

TS3USB221
  • TS3USB221
  • TS3USB221
  • TS3USB221

TS3USB221

ACTIVE

High-Speed USB 2.0 (480 Mbps) 1:2 Multiplexer/Demultiplexer Switch With Single Enable

Texas Instruments TS3USB221 Product Info

1 April 2026 3

Parameters

Protocols

USB 2.0

Configuration

2:1 SPDT

Number of channels

2

USB speed (Mbps)

480

Bandwidth (MHz)

1100

Supply voltage (max) (V)

3.6

Supply voltage (min) (V)

2.3

Ron (typ) (mΩ)

3000

Input/output voltage (min) (V)

0

Input/output voltage (max) (V)

5.5

ESD HBM (typ) (kV)

2

Operating temperature range (°C)

-40 to 85

COFF (typ) (pF)

3

CON (typ) (pF)

5

Off isolation (typ) (dB)

-41

OFF-state leakage current (max) (µA)

1

Ron (max) (mΩ)

6000

Ron channel match (max) (Ω)

0.2

Turnoff time (disable) (max) (ns)

17

Turnon time (enable) (max) (ns)

10

Rating

Catalog

Package

UQFN (RSE)-10-3 mm² 2 x 1.5

Features

  • VCC operation from 2.3V and 3.6V
  • VI/O accepts signals up to 5.5V
  • 1.8V compatible control-pin inputs
  • Low-power mode when OE is disabled (1µA)
  • RON = 6Ω maximum
  • ΔrON = 0.2Ω typical
  • CIO(ON) = 6pf maximum
  • Low power consumption (30µA maximum)
  • ESD > 2000V Human-Body Model (HBM)
  • High bandwidth (1GHz typical)
  • VCC operation from 2.3V and 3.6V
  • VI/O accepts signals up to 5.5V
  • 1.8V compatible control-pin inputs
  • Low-power mode when OE is disabled (1µA)
  • RON = 6Ω maximum
  • ΔrON = 0.2Ω typical
  • CIO(ON) = 6pf maximum
  • Low power consumption (30µA maximum)
  • ESD > 2000V Human-Body Model (HBM)
  • High bandwidth (1GHz typical)

Description

The TS3USB221 is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (1GHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. The TS3USB221 is designed for low bit-to-bit skew and high channel to channel noise isolation. The TS3USB221 is also compatible with various standards, such as high-speed USB 2.0 (480Mbps).
