Texas Instruments TS3A5017 Product Info

Parameters

Configuration	4:1
Number of channels	2
Power supply voltage - single (V)	2.5, 3.3
Protocols	Analog
Ron (typ) (Ω)	11
CON (typ) (pF)	24
ON-state leakage current (max) (µA)	0.2
Supply current (typ) (µA)	2.5
Bandwidth (MHz)	165
Operating temperature range (°C)	-40 to 85
Features	Powered-off protection
Input/output continuous current (max) (A)	0.128
Rating	Catalog
Drain supply voltage (max) (V)	3.6
Supply voltage (max) (V)	3.6

Package

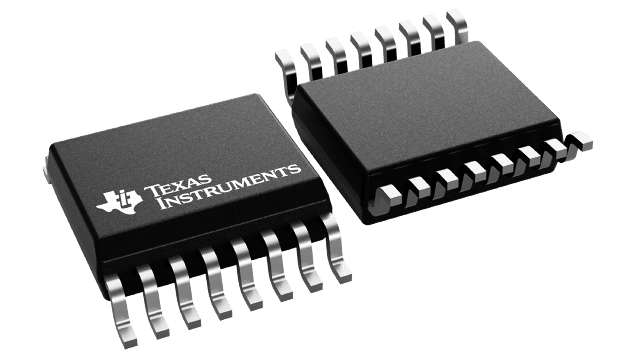

SOIC (D)-16-59.4 mm² 9.9 x 6

Features

Isolation in the Powered-Down Mode, V₊ = 0
Low ON-State Resistance
Low Charge Injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion (THD)
2.3-V to 3.6-V Single-Supply Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 1500-V Human-Body Model
  (A114-B, Class II)
- 1000-V Charged-Device Model (C101)

Isolation in the Powered-Down Mode, V₊ = 0
Low ON-State Resistance
Low Charge Injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion (THD)
2.3-V to 3.6-V Single-Supply Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 1500-V Human-Body Model
  (A114-B, Class II)
- 1000-V Charged-Device Model (C101)

Description

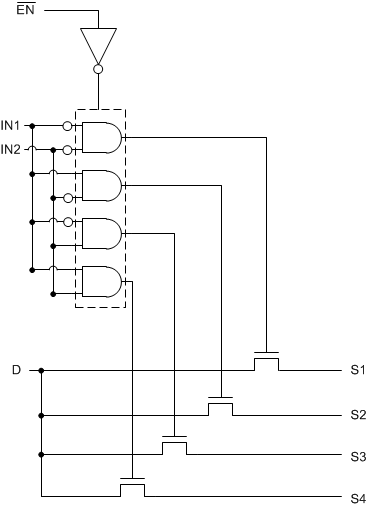

The TS3A5017 device is a dual single-pole quadruple-throw (4:1) analog switch that is designed to operate from 2.3 V to 3.6 V. This device can handle both digital and analog signals, and signals up to V₊ can be transmitted in either direction.

ELECTRONIC COMPONENTS
All In One Distributor

TS3A5017

3.3-V, 4:1, 2-channel general-purpose analog multiplexer
