0
ACTIVE
Configuration |
1:1 SPST |
Number of channels |
2 |
Power supply voltage - single (V) |
1.8, 2.5, 3.3 |
Protocols |
Analog |
Ron (typ) (Ω) |
0.7 |
CON (typ) (pF) |
43 |
ON-state leakage current (max) (µA) |
0.005 |
Bandwidth (MHz) |
125 |
Operating temperature range (°C) |
-40 to 85 |
Features |
1.8-V compatible control inputs |
Input/output continuous current (max) (A) |
0.1 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
3.6 |
Supply voltage (max) (V) |
3.6 |

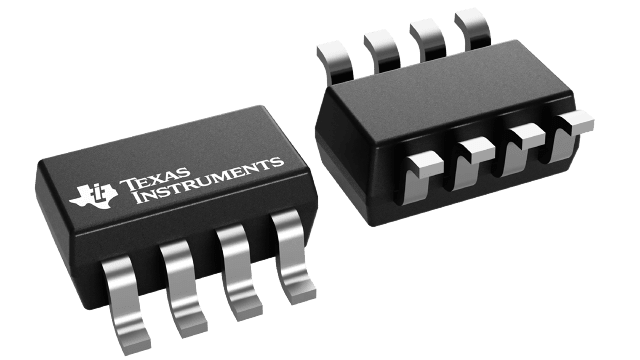

SOT-23 (DCN)-8-4.64 mm² 2.9 x 1.6
The TS3A4741 and TS3A4742 are bi-directional, 2-channel single-pole/single-throw (SPST) analog switches with low ON-state resistance (Ron), low-voltage, that operate from a single 1.6-V to 3.6-V supply. These devices have fast switching speeds, handle rail-to-rail analog signals, and consume very low quiescent power.
The digital logic input is 1.8-V CMOS compatible when using a single 3-V supply.

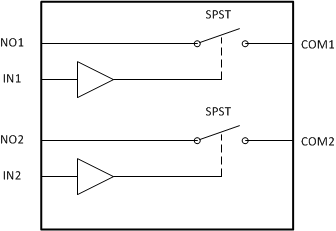

The TS3A4741 has two normally open (NO) switches, and the TS3A4742 has two normally closed (NC) switches.
